| Marketing Description |

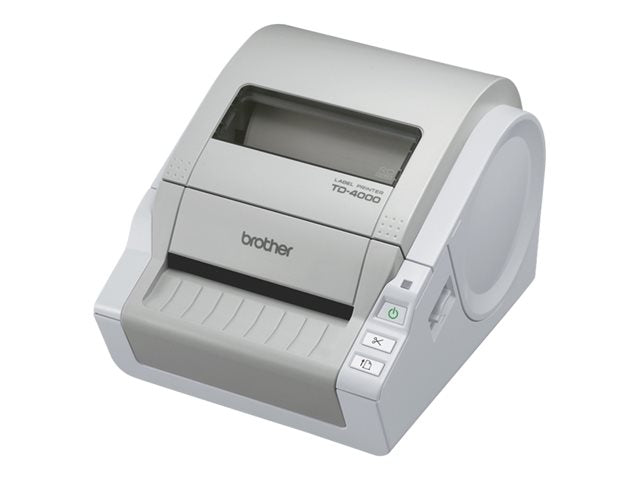

The TD-4000 will print on most medium/high sensitivity direct thermal media in high quality 300 dots/inch print resolution, and comes ready with everything you need to start printing including the USB cable and PT-Editor, powerful but easy to use design software application.
Unlike competitive models that require printing using their resident fonts and bar codes, the TD-4000 is host-based and can print text, bar codes and graphics from software, up to 4.3 inches/second. The built-in automatic cutter reliably trims receipts and continuous labels to your desirable length, or configures it to cut after printing die cut labels - either one at a time or after printing a strip of multiple labels.
With this combination of high performance, value add and reliability, why not experience this for yourself and see why the TD-4000 is the good value desktop bar code printer for your Windows -based application. |
| Product Features |
-
An easy integration solution for software developers
Brother provides an easy-to-use software development kit for integrating the TD-4000 desktop barcode and label printers into most Windows applications. Using the Brother API, applications can pass text, numbers, graphics, and bar code data to document templates, and print labels, receipts, and tags directly to the printers. This simplifies printer integration and frees application developers from having to use the Windows API.
|
| General |
| Printer Type |
Label printer - direct thermal - monochrome |
| Enclosure Colour |
Light grey, pearl |
| Printer |
| Print Speed |
Up to 110 mm/sec |
| Built-in Devices |
Status LCD |
| Connectivity Technology |
Wired |
| Interface |
USB 2.0, serial |
| Max Resolution (B&W) |
300 x 300 dpi |
| Language Simulation |
EPSON ESC/P |
| Fonts |
Brussels, Helsinki, San Diego, Letter Gothic |
| Styles & Effects |
Bold, outline shadow, vertical, outline, shadow, italic, underline |
| Auto Cutter |
Yes |
| Repeating Printing |
9999 copies |
| Barcodes |
Code 39, UCC/EAN-128, ISBN, GS1 DataBar, MaxiCode, EAN/JAN-8, EAN/JAN-13, UPC-A, UPC-E, Codabar, Code 128, Postnet, PDF417, Data Matrix, ITF, GS1 DataBar Omnidirectional, GS1 DataBar Stacked Omnidirectional, GS1 DataBar Expanded, GS1 DataBar Expanded Stacked, GS1 DataBar Limited, GS1 DataBar Stacked |
| RAM |
| RAM Installed (Max) |
2 MB |
| Media Handling |
| Media Type |
Continuous paper labels, die cut labels |
| Compatible Tapes |
RD tape |
| Max Media Size |
Roll (10.16 cm), continuous paper 19 mm - 105.6 mm (width) |
| Min Media Size (Custom) |
15 mm |
| Max Media Size (Custom) |
106 mm |
| Media Sizes |
Roll (10.16 cm), continuous paper 19 mm - 105.6 mm (width) |
| Max Printing Width |
98.6 mm |
| Max Printing Length |
3000 mm |
| Media Thickness Range |
0.08 mm - 0.17 mm |
| Roll Maximum Outer Diameter |
101.6 mm |
| Roll Core Diameter |
25.4 mm |
| Expansion / Connectivity |
| Connections |
1 x RS-232 - 9 pin D-Sub (DB-9)
1 x USB 2.0 - 4 pin USB Type B |
| Miscellaneous |
| Media Included |
1 roll of 60 51 x 26 mm black on white labels, 1 thermal roll paper (102 mm x 2 m) |
| Power |
| Power Device |
Power supply - internal |
| Software / System Requirements |
| Software Included |
Brother P-touch Editor 5 |
| OS Required |
Microsoft Windows XP, Microsoft Windows 7, Microsoft Windows Vista |
| Environmental Parameters |
| Min Operating Temperature |
10 °C |
| Max Operating Temperature |
35 °C |
| Humidity Range Operating |
20 - 80% (non-condensing) |
| Dimensions & Weight |
| Width |
17.3 cm |
| Depth |
22.9 cm |
| Height |
15.8 cm |
| Weight |
1.81 kg |
