QNAP TR-004U 4-bay Rackmount 1U 12 къса дълбочина Rackmount 3.5inch SATA HDD USB 3.0 type-C hardware RAID външен корпус

QNAP TR-004U 4-bay Rackmount 1U 12 къса дълбочина Rackmount 3.5inch SATA HDD USB 3.0 type-C hardware RAID външен корпус

by Qnap systems
SKU KXG0135037

Избери период за изплащане и виж месечната вноска

Месечна вноска Обща сума за плащане ГПР Лихва Банка

Description

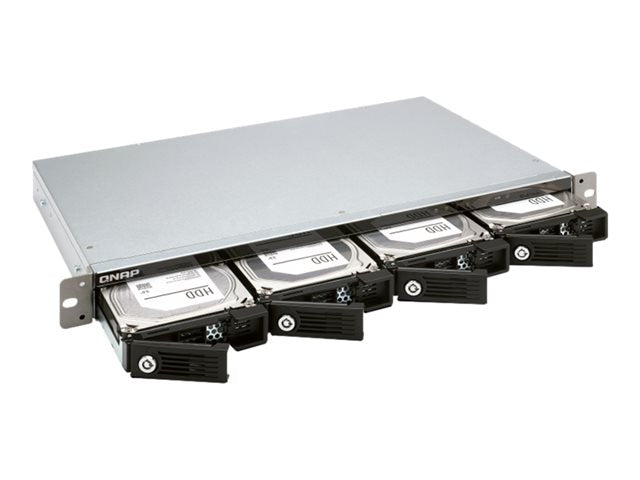

QNAP TR-004U 4-bay Rackmount 1U 12 short-depth rackmount 3.5inch SATA HDD USB 3.0 type-C hardware RAID external enclosure

Manufacturer QNAP SYSTEMS
Manufacturer Part No TR-004U

Marketing Description
The TR-004U USB 3.2 Gen 1 RAID expansion enclosure allows you to expand the capacity of your QNAP NAS and PC. The TR-004U can also be utilized as a DAS (Direct-attached Storage) device, allowing you to directly access its content by connecting it via USB. The TR-004U features four 3.5-inch SATA drive bays with multiple RAID configuration options and USB 3.2 Gen 1 Type-C connectivity to bring you a highly-reliable and secure storage capacity expansion solution.
Product Features
  • Supports various RAID levels
    The TR-004U supports a variety of RAID configurations. Depending on your requirements, you can switch between hardware- or software-controlled RAID modes. Move the DIP switches to corresponding positions for your ideal RAID mode: Individual, JBOD, RAID 0, RAID 1/10 or RAID 5. You can also configure the RAID settings from your QNAP NAS, or by using the QNAP External RAID Manager utility on your computer.
  • Flexible storage configuration and management
    Compared with other RAID enclosures, the TR-004U provides software-controlled configurations for greater management flexibility. Users can configure RAID and monitor disk health using the Storage & Snapshots Manager on a QNAP NAS, or by using the QNAP External RAID Manager utility on their computer.
  • Use as an alternative to conventional NAS expansion enclosures
    As an external hardware RAID device, the TR-004U operates independently and does not require additional NAS system resources.
General
Device Type Hard drive array
Enclosure Type Rack-mountable - 1U
Chassis
Installed Devices / Modules Qty 0
Supported Devices / Modules Qty 4
Supported Drives SATA-300
Storage
HDD Array External Interface USB 3.1 Gen 1
Storage Controller
Type RAID
Installed Qty 1
Interface Type SATA 3Gb/s
Data Transfer Rate 300 MBps
RAID Level RAID 0, RAID 1, RAID 5, RAID 10, JBOD
Storage Controller (2nd)
Installed Qty 1
Hard Drive
Type No HDD
Expansion / Connectivity
Expansion Bays 4 (total) / 4 (free) x hot-swap - 2.5" / 3.5" shared
Interfaces 1 x USB 3.1 Gen 1 - 24 pin USB-C
Miscellaneous
Features Security lock slot (cable lock sold separately), built-in cooling fan
Cables Included 1 x USB-C to USB-A cable
Included Accessories 2 x keys, cable clip, 12 x screws (for 2.5" HDD), 16 x screws (for 3.5" HDD), power cable
Power
Voltage Required AC 100 - 240 V
Power Provided 65 Watt
Environmental Parameters
Min Operating Temperature 0 °C
Max Operating Temperature 40 °C
Humidity Range Operating 5 - 95% (non-condensing)
