| Marketing Description |

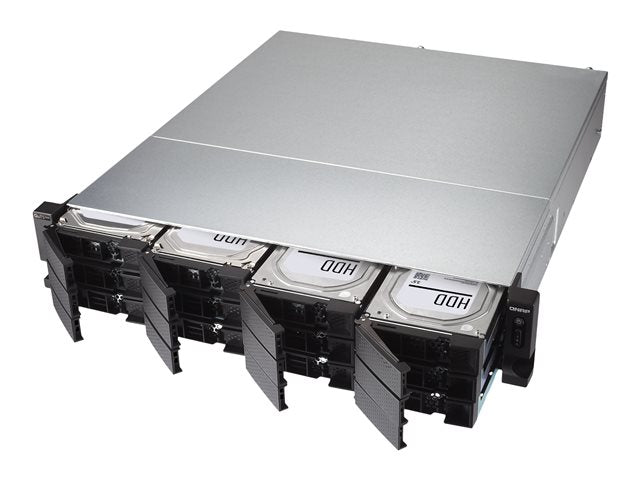

| The TS-h1277XU-RP supports near-limitless snapshots, block-level inline data deduplication, and inline data compression. The TS-h1277XU-RP helps your business achieve reliable service-level agreement performance, whether in mission-critical file server, virtualization server, VDI, collaborative video editing, or efficient file backup and recovery applications. |
| Product Features |
-
Superior hardware engineering with high I/O expandability
The TS-h1277XU-RP features outstanding hardware and expandable architecture, enabling optimal performance and flexibility to meet business application diversification demands.
-
Data reduction improves storage efficiency and performance
Inline data deduplication, compression, and compaction reduce file size to save storage space and optimize performance.
-
Prevents data corruption to assure reliability
The TS-h1277XU-RP supports dual-channel DDR4 memory in four long-DIMM slots. When using paired memory modules, the TS-h1277XU-RP can leverage the power of dual-channel architecture to boost performance.
|
| General |
| Device Type |
NAS server |
| Host Connectivity |
Gigabit Ethernet / 10 Gigabit Ethernet / 10Gbps SFP+ |
| Enclosure Type |
Rack-mountable - 2U |
| Total Storage Capacity |
0 GB |
| Installed Devices / Modules Qty |
0 (installed) / 12 (max) |
| Width |
48.2 cm |
| Depth |
56.2 cm |
| Height |
8.83 cm |
| Weight |
13.73 kg () |
| Processor / Memory |
| Processors Installed |
1 x AMD Ryzen 7 3700X 3.6 GHz |
| Number of Cores |
8-core |
| Max Supported Qty |
1 |
| Max Turbo Speed |
4.4 GHz |
| RAM |
128 GB (installed) / 128 GB (supported) - DDR4 |
| Flash Memory Installed |
5 GB |
| Storage Controller |
| Type |
RAID |
| Interface Type |
SATA 6Gb/s |
| RAID Level |
RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, JBOD, RAID 5 hot spare, RAID 6 hot spare, RAID 60, RAID 10 hot spare, RAID TP |
| Networking |
| Data Link Protocol |
1GbE, 10GbE, 10 GigE optical |
| Remote Management Protocol |
SNMP 2, SNMP 3 |
| Network Services Compatibility |
Microsoft Active Directory (AD), Apple Bonjour Protocol, File Level Security (ACLs), Microsoft CIFS, FTP, Server Message Block (SMB), Apple File Protocol (AFP) |
| Features |
ALERT notification, LDAP support, VLAN support, wake on LAN (WOL), Syslog support, Access Control List (ACL) support, iTunes server, Jumbo Frames support, DLNA Media Server, Apple Time Machine compatible, VPN Server, Apple AirPlay, anti-virus protection, Link Aggregation, Google Drive support, Chromecast support, port trunking, Microsoft Azure support, Amazon S3 support, Amazon Glacier suport, Qsirch, deduplication (volume and LUN), snapshot (folder and LUN), compression (volume and LUN) |
| Encryption Algorithm |
AES-NI |
| Compliant Standards |
UPnP |
| Expansion / Connectivity |
| Expansion Bays |
12 (total) / 12 (free) x hot-swap - 2.5" / 3.5" |
| Expansion Slots |
2 (total) / 1 (free) x PCI Express 3.0 x8
2 (total) / 2 (free) x PCI Express 3.0 x4 |
| Interfaces |
2 x Ethernet 1000Base-T - RJ-45
1 x USB 3.1 Gen 2 - Type A
4 x USB 3.0 - Type A
1 x USB 3.1 Gen 2 - Type C
2 x Ethernet 10Gb - SFP+
2 x Ethernet 10Base-T - RJ-45 |
| Miscellaneous |
| Cables Included |
2 x network cable
2 x 10GBase-T cable |
| Features |
Audible alarm, built-in 2 cooling fans, dual boot |
| Included Accessories |
48 x flat head screws (for 3.5" HDD), 36 x flat head screws (for 2.5" HDD), 2 x power cables |
| Power |
| Power Device |
Internal power supply |
| Installed Qty |
2 |
| Max Supported Qty |
2 |
| Power Redundancy |
Yes |
| Power Redundancy Scheme |
1+1 |
| Voltage Required |
AC 120/230 V |
| Power Consumption Operational |
106.66 Watt |
| Power Provided |
300 Watt |
| Software / System Requirements |
| Storage Operating System |
QNAP QTS hero |
| Dimensions & Weight (Shipping) |
| Shipping Weight |
16 kg |
| Environmental Parameters |
| Min Operating Temperature |
0 °C |
| Max Operating Temperature |
40 °C |
| Humidity Range Operating |
5 - 95% (non-condensing) |
| Sound Emission |
37.2 dBA |
