| Marketing Description |

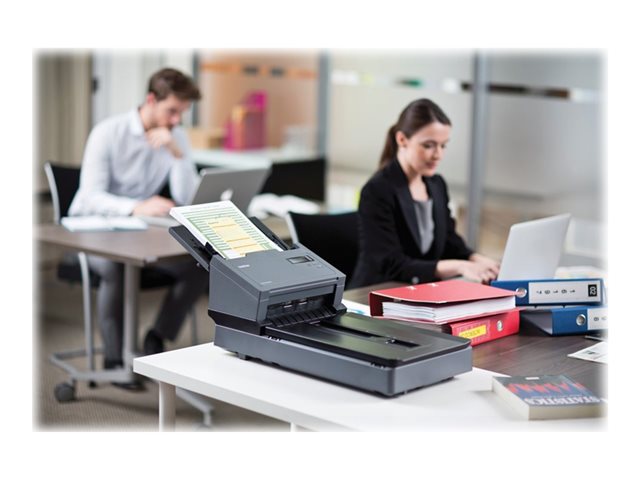

| The PDS-5000F high-speed desktop scanner with flatbed offers powerful features for medium to large-size businesses and offices with demanding scanning requirements. Using the generous capacity auto document feeder, this scanner is able to capture single and double-sided documents in a single pass at high speeds, making it perfect for scanning multi-page, two-sided business documents, as well as single-page documents, business cards, and embossed plastic cards. Plus, it features an integrated legal-size flatbed, allowing you to scan bound, delicate, irregularly shaped, and other materials not suitable for the document feeder. |
| Product Features |
-
Efficient scanning
With automatic duplexing and a robust duty cycle of 6,000 scans per day, this scanner is designed to handle high-volume workloads with ease. Its 100-sheet feeder capacity further enhances productivity, allowing for continuous scanning without frequent interruptions.
-
Versatile compatibility
Designed to work seamlessly with both Mac and PC, the PDS-5000F offers flexible connectivity options through its USB 3.0 interface, ensuring a smooth integration into any existing workflow.
-
Advanced image quality
The scanner's Dual CCD scanning sensor and a maximum optical resolution of 600 DPI deliver high-quality scans in both color and grayscale. With 24-bit color depth and 8-bit grayscale depth, images and documents are captured with exceptional detail and color fidelity.
-
Comprehensive document handling
Supports a wide range of document types including business cards, plain paper, and plastic cards. Its versatile document feeder accommodates sizes up to 218 x 5994 mm, making it ideal for scanning a variety of documents.
-
Eco-friendly design
ENERGY STAR certification ensures that the PDS-5000F is not only powerful but also energy-efficient, reducing operational costs and supporting sustainability initiatives.
|
| General |
| Type |
Document scanner - desktop |
| Interface Type |
USB 3.0 |
| Additional Functions |
Email, scan to print, scan to FTP, scan to file |
| Max Supported Document Size |
218 x 5994 mm |
| Scanner |
| Input Type |
Colour |
| Grayscale Depth |
8-bit (256 colours) |
| Colour Depth |
24-bit (16.7 million colours) |
| Colour Depth (External) |
48-bit colour |
| Optical Resolution |
600 dpi x 600 dpi |
| Scan Mode |
Single-pass |
| Automatic Duplexing |
Yes |
| Scanning Sensor Type |
Dual CCD |
| Max Document Scan Speed B/W |
60 ppm |
| Max Document Scan Speed Colour |
60 ppm |
| Duty Cycle |
6000 scans per day |
| Scanner Speed Details |
60 ppm - black & white - A4 - 300 dpi
60 ppm - colour - A4 - 300 dpi
120 ipm - duplex - black & white - 300 dpi
120 ipm - duplex - colour - 300 dpi
15 ppm - black & white - 600 dpi
15 ppm - colour - 600 dpi
30 ipm - duplex - black & white - 600 dpi
30 ipm - duplex - colour - 600 dpi
1.8 sec/scan - greyscale - A4 - 300 dpi
1.8 sec/scan - colour - A4 - 300 dpi
7.6 sec/scan - greyscale - A4 - 600 dpi
7.6 sec/scan - colour - A4 - 600 dpi |
| Scanner Features |
2 line x 16 character LCD, Kofax VRS compatibility |
| Compliant Standards |
TWAIN, ISIS, WIA |
| Media Handling |
| Max Document Size |
218 mm x 5994 mm |
| Supported Document Type |
Plain paper, business card, plastic card |
| Supported Document Size Details |
ADF - up to 218 x 5994 mm
Flatbed - up to 216 x 356 mm |
| Document Feeder Type |
Manual, automatic |
| Document Storage Capacity |
100 sheets |
| Expansion / Connectivity |
| Interfaces Details |
USB 3.0 |
| Miscellaneous |
| Included Accessories |
Carrier sheet, plastic card carrier sheet |
| Cables Included |
1 x SuperSpeed USB cable |
| Environmental Standards |
| ENERGY STAR Certified |
Yes |
| Power |
| Power Device |
External power adapter |
| Voltage Required |
AC 120/230 V (50/60 Hz) |
| Power Consumption Operational (Standby) |
53 Watt |
| Power Consumption Stand by |
17.6 Watt |
| Software / System Requirements |
| Software Included |
Drivers & Utilities |
| OS Required |
Microsoft Windows Vista (32/64 bits), Microsoft Windows 7 (32/64 bits), Apple OS X 10.8 Mountain Lion, Windows 8 (32/64 bits), Windows 8.1 (32/64 bits), Apple OS X 10.9 Mavericks, Apple MacOS X 10.10 |
| Dimensions & Weight |
| Width |
32.3 cm |
| Depth |
61.3 cm |
| Height |
26.3 cm |
| Weight |
9.2 kg |
| Dimensions & Weight (Shipping) |
| Shipping Width |
73 cm |
| Shipping Depth |
43.9 cm |
| Shipping Height |
38.6 cm |
| Shipping Weight |
12.3 kg |
| Manufacturer Warranty |
| Service & Support |
Limited warranty - 1 year |
| Environmental Parameters |
| Min Operating Temperature |
5 °C |
| Max Operating Temperature |
35 °C |
| Humidity Range Operating |
20 - 80% |
