| Marketing Description |

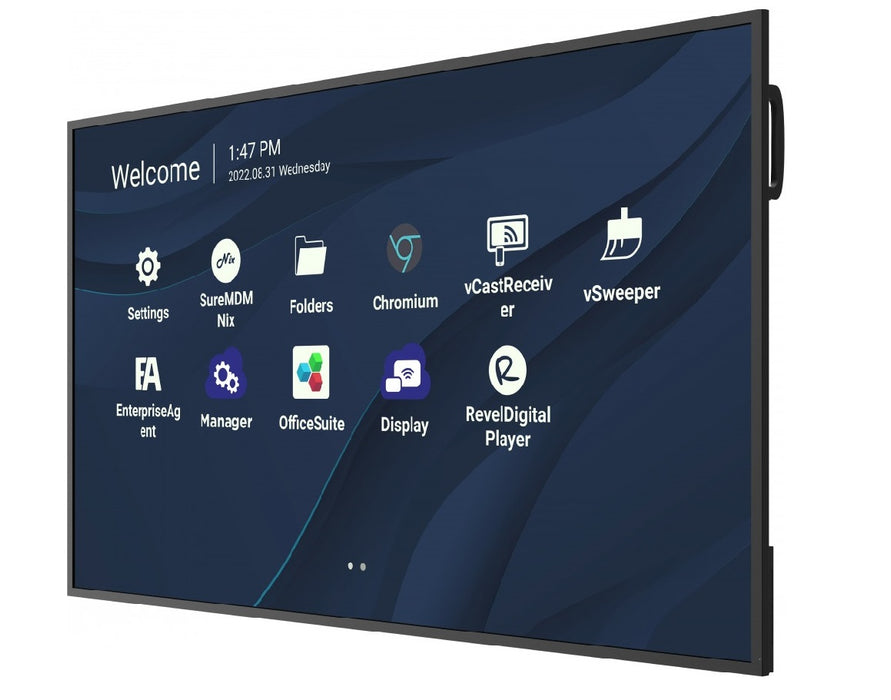

| Streamline your presentations, enhance collaboration, and succeed with the ViewSonic CDE5530 digital display. Whether your employees are in office or working remotely, they will enjoy fast and easy ways to communicate thanks to ViewBoard Cast screen sharing software and the myViewBoard Display app that allows up to four participants to connect and share content. For maximum visibility even in rooms with high ambient light, these displays offer stunning 4K Ultra HD resolution, high brightness and a 25% high haze anti-glare screen. What's more, these all-in-one displays simplify installation and maintenance thanks to a powerful secured embedded platform that delivers smooth content playback without the need for a PC or media player. |
| Product Features |
-
Connection made Efficient
The CDE30 series, with its USB-C connectivity, has been designed to enable ease of operation and upgraded efficiency. This all-in-one solution brings together single-cable speedy-data transfers and multimedia broadcasting while powering your connected device and providing it with fast and stable internet access.
-
Wireless content sharing
The CDE30 series comes complete with cable-free sharing solutions. myViewBoard Display delivers instant browser-based castings for screen-mirroring with no cable or download necessary, making it perfect for quick presentations and guest users. For more advanced features, ViewBoard Cast offers split, extended, and grouped screen capabilities from any device. It also supports AirPlay and Chromecast so users can effortlessly share their screens.
-
Non-stop operation hours
Alongside its ability to run 24/7 for continuous message delivery, the CDE30 series smoothly operates in both landscape and portrait modes to deliver the most efficient communication format. The display's brightness ensures captivating visual quality, and its daisy-chain compatibility caters for easy network topology and deployment.
-
SoC-powered performance
The CDE30's built-in Quad Core SoC with embedded Android 11 and capable memory can execute several tasks at once while providing smooth content playback without requiring a media player. This all-in-one digital signage solution reduces both costs and your carbon footprint, while delivering a top-notch performance without needing a PC or any additional cables.
|
| General |
| Product Type |
LED-backlit LCD flat panel display |
| Power Consumption Operational |
82 Watt |
| Diagonal Class |
55" |
| Commercial Use |
Yes - digital signage |
| Combined With |
Built-in SoC media player |
| Series |
CDE30 Series |
| Platform |
Android |
| Operating System |
Android OS 11 |
| TV Tuner |
No tuner |
| TV Tuner Presence |
No |
| Video Interface |
HDMI |
| HDMI Ports Qty |
2 ports |
| PC Interface |
Serial RS-232, USB-C |
| Modes |
Portrait mode, landscape mode |
| Picture Enhancements |
Blue Light Filter |
| Dimensions |
Without stand |
| Width |
123.3 cm |
| Depth |
7.15 cm |
| Height |
70.35 cm |
| Weight |
13.4 kg |
| Display |
| LCD Display Technology |
VA |
| Colour Support |
1070000000 colours |
| Resolution |
3840 x 2160 |
| Display Format |
4K UHD (2160p) |
| Image Aspect Ratio |
16:9 |
| LCD Backlight Technology |
Direct-lit LED |
| Coating |
Anti-glare, 3H Hard, 25% haze |
| Image Contrast Ratio |
1200:1 |
| Dynamic Contrast Ratio |
5000:1 |
| Brightness |
500 cd/m² |
| Viewing Angle |
178 degrees |
| Viewing Angle (Vertical) |
178 degrees |
| Response Time |
6.5 ms |
| Backlight Life |
50,000 hour(s) |
| Operation Hours / Days |
24 / 7 |
| Features |
Dimming Control (DCR), Crestron Connected Compatible, Flicker free technology, WiFi slot, 1.07 billion colours (8-bit+FRC), blue light reduction, 24/7 operation time |
| Stands & Mounts |
| Flat Panel Mount Interface |
400 x 200 mm |
| VESA Compatibility |
Yes |
| Media Player |
| Supported Video Formats |
MPEG-1, MPEG-2, MPEG-4, Xvid, WMV, ASF, AVI, MKV, MOV, VOB, FLV, RM, TS, H.264, RMVB, DAT, TP, TRP, WebM, MPG, MPEG, OGM, 3GP |
| Supported Audio Formats |
MP3, WMA, WAV, AC3, AAC, M4A, MP4 |
| Supported Pictures Formats |
BMP, PNG, JPEG |
| USB Port |
Yes |
| USB Ports Qty |
3 |
| Configuration |
ARM Cortex-A55 Quad-Core - 4 GB - 32 GB |
| Remote Control |
| Type |
Remote control |
| Battery Form Factor |
AAA type |
| Battery Included |
Yes |
| Battery Included Qty |
2 |
| Battery Required Qty |
2 |
| Audio System |
| Speaker System |
2 speakers |
| Output Power / Total |
32 Watt |
| Features |
Audio Return Channel (ARC), Apple AirPlay support |
| Speakers |
2 x main channel speaker - 16 Watt |
| Network & Internet Multimedia |
| Connectivity |
LAN |
| LAN Protocol |
Fast Ethernet |
| Connections |
| Connector Type |
2 x HDMI input
RS-232 input
HDMI output
USB-C with 65W Power Delivery
SPDIF output
LAN
USB 2.0
USB 3.0 |
| Miscellaneous |
| Included Accessories |
Remote control, batteries, screws, RS232 adapter |
| Cables Included |
HDMI cable - 3 m
USB-C cable - 1.8 m |
| Compliant Standards |
ICES-003, CB, FCC, RoHS, WEEE, cTUVus, REACH, UkrSEPRO, ERP, EAC, RCM, Mexico Energy label, TPCH, Mexico NOM, CA65, SCIP, Annex II (EU) 2015/863, Green BOM |
| Sustainability Information |
| ENERGY STAR Certified |
Yes |
| ENERGY STAR Version |
8.0 |
| Power |
| Power Device |
Power supply |
| Input Voltage |
AC 100-240 V (50 - 60 Hz) |
| Power Consumption (Off Mode) |
0.5 Watt |
| On / Off Switch |
Yes |
| Manufacturer Warranty |
| Service & Support |
Limited warranty - replace or repair - 5 years - on-site |
| Dimensions & Weight (Shipping) |
| Width (Shipping) |
133.2 cm |
| Depth (Shipping) |
15.6 cm |
| Height (Shipping) |
81.9 cm |
| Weight (Shipping) |
19.5 kg |
| Environmental Parameters |
| Min Operating Temperature |
0 °C |
| Max Operating Temperature |
40 °C |
| Humidity Range Operating |
20 - 80% (non-condensing) |
