| General |
| Product Type |

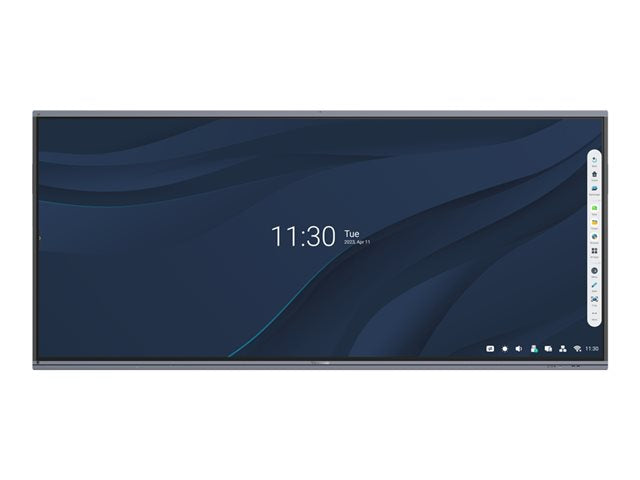

LED-backlit LCD flat panel display |
| Energy Label QR Code URL |
Https://eprel.ec.europa.eu/qr/1768835 |
| Energy Class |
Class G |
| Power Consumption Operational |
275 Watt |
| Power Consumption (On mode) |
259.2 W |
| Power Consumption SDR (On mode) |
259 kWh/1000h |
| Diagonal Class |
105" |
| Commercial Use |
Yes - interactive |
| Operating System |
Android OS 13 |
| TV Tuner |
No tuner |
| TV Tuner Presence |
No |
| Sensors |
Light sensor |
| Video Interface |
HDMI |
| HDMI Ports Qty |
4 ports |
| PC Interface |
DisplayPort |
| Modes |
Landscape mode |
| Width |
250.72 cm |
| Depth |
10.32 cm |
| Height |
113.01 cm |
| Weight |
91.4 kg |
| Display |
| Colour Support |
1070000000 colours |
| Resolution |
5120 x 2160 |
| Display Format |
5K UHD (2160p) |
| Image Aspect Ratio |
21:9 |
| LCD Backlight Technology |
Direct LED |
| Coating |
Anti-glare, 7H Hard, 3H Hard |
| Image Contrast Ratio |
4000:1 |
| Dynamic Contrast Ratio |
5000:1 |
| Brightness |
400 cd/m² |
| Viewing Angle |
178 degrees |
| Viewing Angle (Vertical) |
178 degrees |
| Touchpoints Qty |
40 |
| Response Time |
6.5 ms |
| Backlight Life |
50,000 hours |
| Features |
Open Pluggable Specification slot, remote management |
| Stands & Mounts |
| Flat Panel Mount Interface |
1000 x 400 mm |
| VESA Compatibility |
Yes |
| Media Player |
| USB Port |
Yes |
| Configuration |
ARM Cortex-A76 Quad-Core + ARM Cortex-A55 Quad-Core - 8 GB LPDDR - 64 GB |
| Remote Control |
| Type |
Remote control |
| Battery Form Factor |
AAA type |
| Audio System |
| Speaker System |
2 speakers, subwoofer |
| Output Power / Total |
47 Watt |
| Features |
Built-in microphone array |
| Speakers |
2 x main channel speaker - 16 Watt
1 x subwoofer - 15 Watt |
| Network & Internet Multimedia |
| Connectivity |
LAN |
| Connections |
| Connector Type |
4 x HDMI input - rear
Audio input
DisplayPort input
Audio output
RS-232 input
HDMI output
SPDIF output
2 x LAN
USB 2.0 (for software update only)
6 x USB 3.0
3 x USB
USB-C with DisplayPort 1.2, Ethernet 100M, 100W Power Delivery - rear
USB-C with DisplayPort 1.2, Ethernet 100M, 15W Power Delivery - front |
| Miscellaneous |
| Included Accessories |
2 touch pens, RS232 adapter, clamps, camera plate, 8 x screws |
| Cables Included |
HDMI cable - 3 m
USB cable - 3 m |
| Compliant Standards |
cTUVus, FCC, ICES 003, CE/EMC, CB, RoHS Green BOM, RoHS DoC, ERP, REACH SvHC, DOC, WEEE, BSMI |
| Sustainability Information |
| EPEAT Compliant |
EPEAT Silver |
| ENERGY STAR Certified |
Yes |
| ENERGY STAR Version |
8.0 |
| Power |
| Power Device |
Power supply |
| Input Voltage |
AC 100-240 V |
| Power Consumption (Off Mode) |
0.5 Watt |
| Dimensions & Weight (Shipping) |
| Width (Shipping) |
266.8 cm |
| Depth (Shipping) |
28 cm |
| Height (Shipping) |
130.5 cm |
| Weight (Shipping) |
115.7 kg |
| Environmental Parameters |
| Min Operating Temperature |
0 °C |
| Max Operating Temperature |
40 °C |
| Humidity Range Operating |
20 - 80% RH (non-condensing) |
