| Marketing Description |

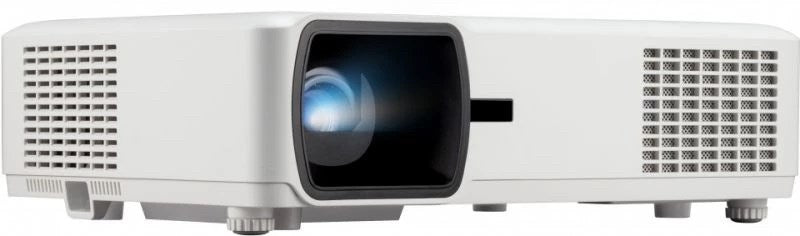

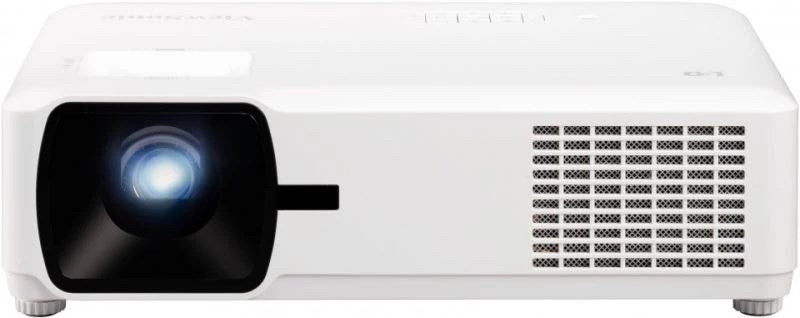

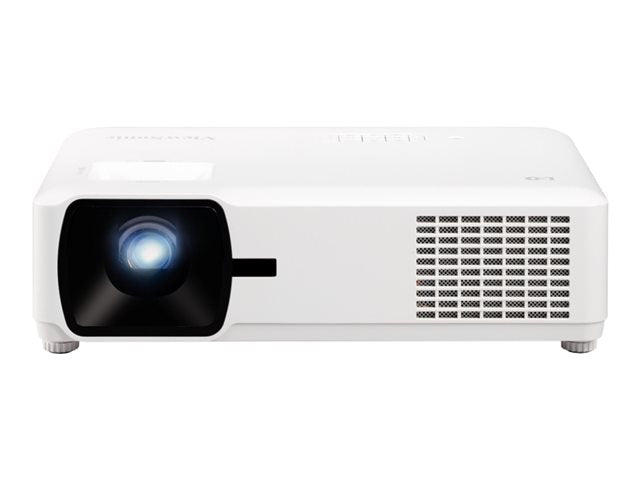

| The LS610WH is ViewSonic's lamp-free high brightness WXGA projector for business and education. Adopting industry-leading 3rd generation LED technology, the LS610WH delivers 4,000 ANSI lumens while eliminating the use of toxic mercury, reducing the cost and effort of frequent lamp replacement and lowering the total cost of ownership. The lamp-free light source offers enhanced sustainability for a greener environment while delivering a wider color gamut for bright and vivid images in a meeting room, classroom, or any other environment. The projector boasts the efficiency of use with instant power on/off, easy image adjustment with H/V keystone and 4 corner adjustment, and 360° tilt angle projection for flexible applications. Moreover, its comprehensive LAN control eases multiple device management. |
| Product Features |
-
3rd generation LED technology for greater sustainability
With the 3rd generation LED technology, the LS610WH frees users from frequent lamp replacement and toxic mercury. Offering consistently impressive brightness for many hours, the projector saves the cost of time, manpower and money for maintenance, while providing a greener and more sustainable future.
-
Saving more with the advanced LED technology
Adopting ams OSRAM's Ostar Projection Power LED technology, the LED projector is both energy saving and cost efficient, consuming less energy than competing lamp-based projectors.
-

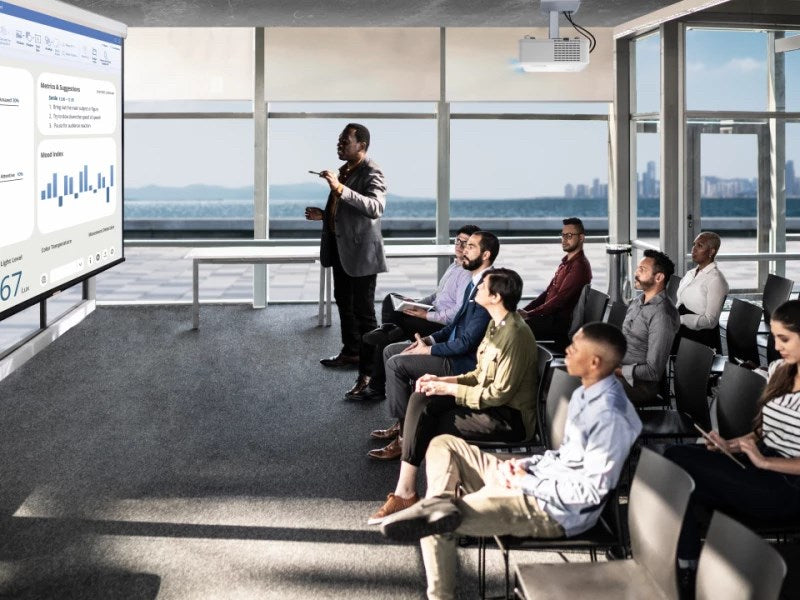

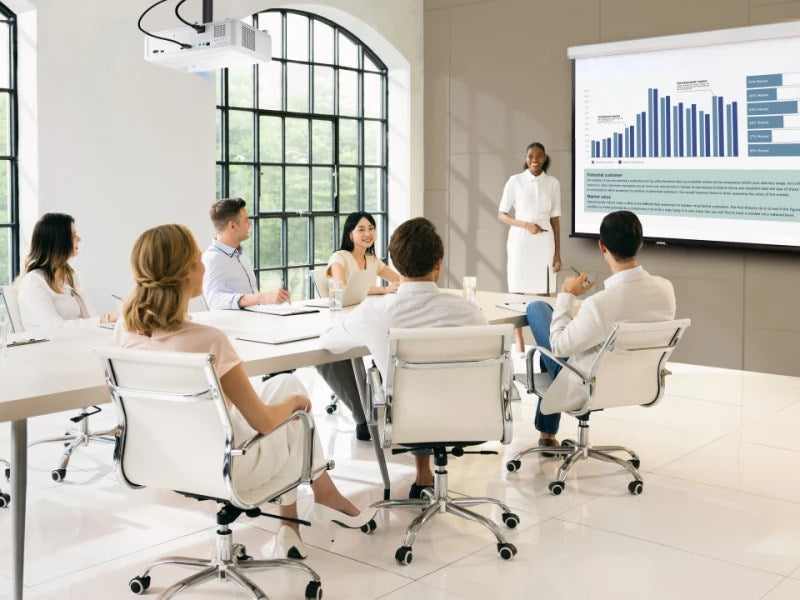

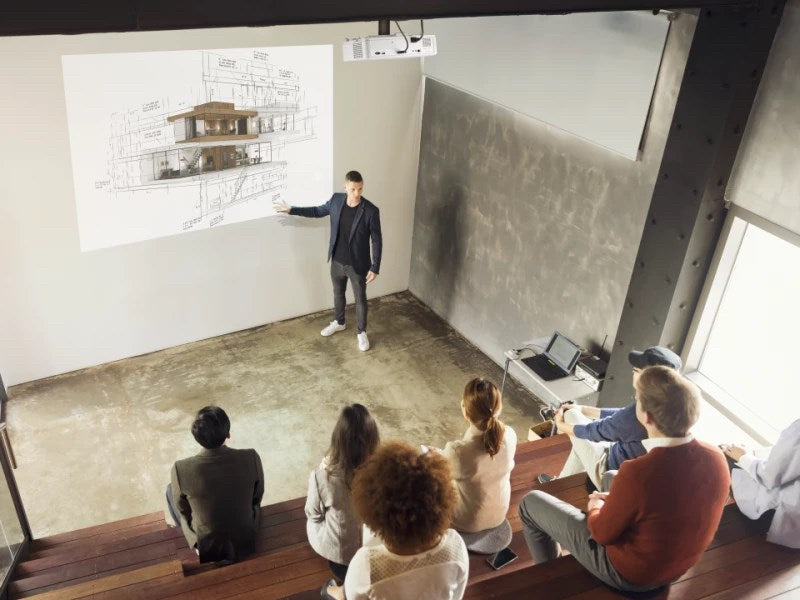

Enhanced brightness for business/education environments
Thanks to the advanced LED technology, the LS610WH achieves a major brightness breakthrough to 4,000 ANSI lumens. With extreme-high contrast ratio of 3,000,000:1, the projector ensures bright and detailed images in dim or lit environments.
-
Present the best with vibrant colors
Impress any audience with ViewSonic's exclusive color technology, covering wide color gamut, elevating your presentation with a true-to-life color experience.
-

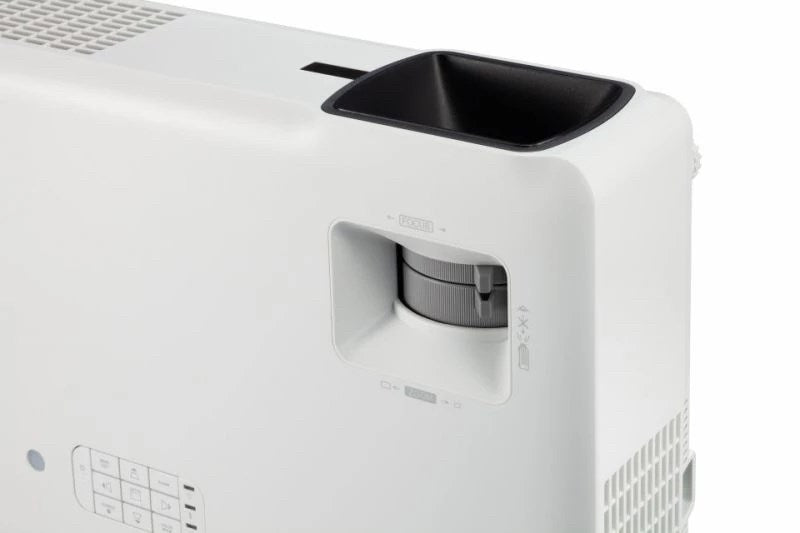

Effortless image adjustment
Horizontal and vertical keystone correction along with 4 corner adjustment features eliminate crooked or distorted images for a perfectly proportioned picture every time.
-
Efficient instant power on/off
Eliminate waiting times before and after use with instant power on/off capability, delivering immediate full brightness for timely starts with no cooling period required.
-

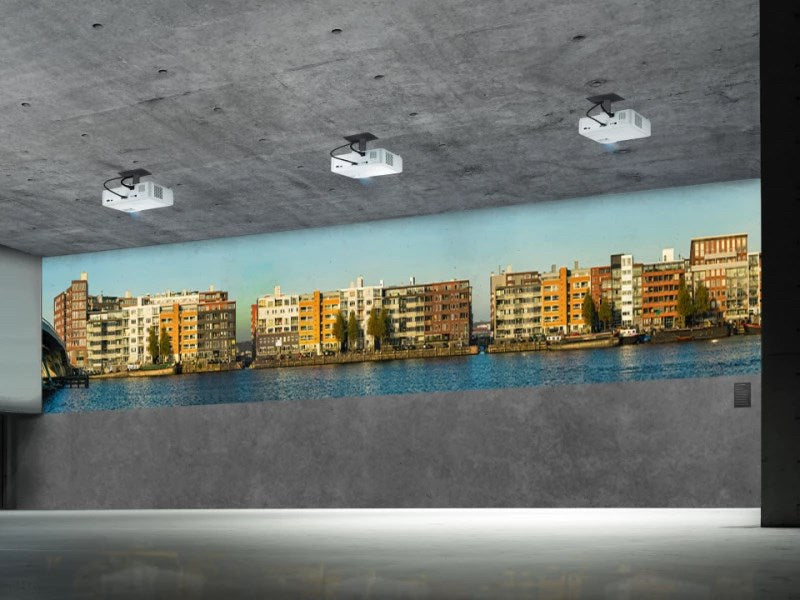

Versatile application

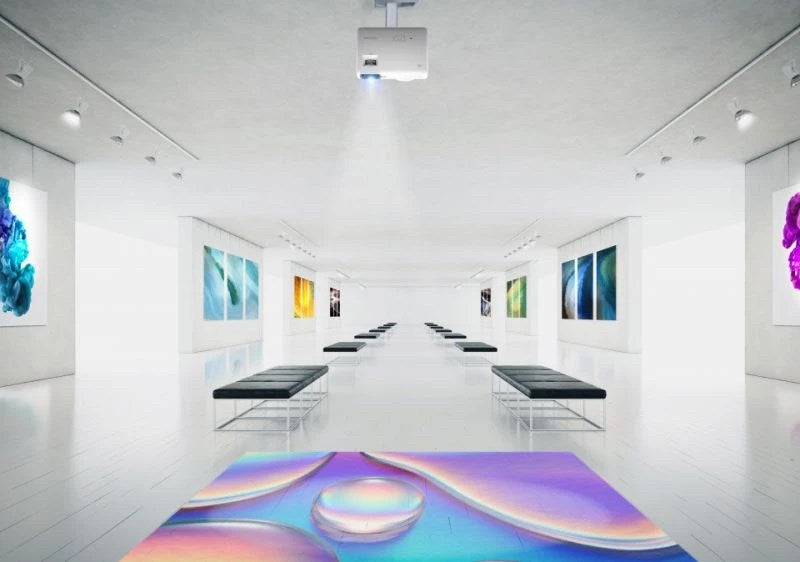

The projector can freely rotate at any angle vertically to aid with creative applications, allowing projection onto ceilings, walls, or floors.
-
USB Type A power supply
The built-in 5 V/1.5 A USB output conveniently delivers power to HDMI wireless dongles, eliminating the need for separate power adapters when streaming multimedia content.
-
Non-stop 24/7 operation

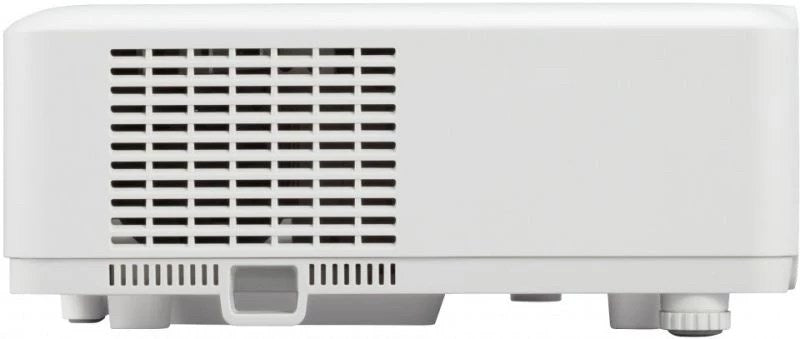

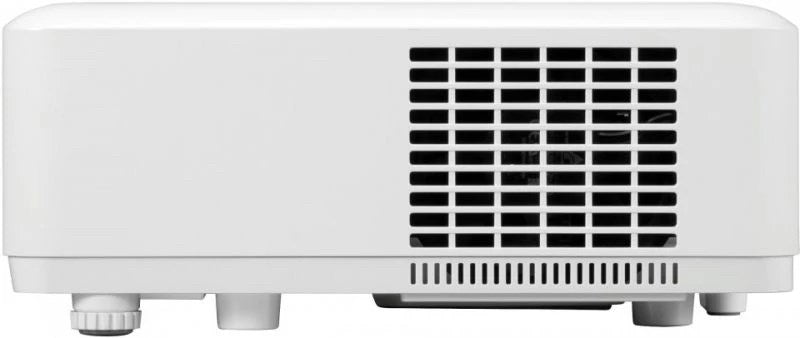

The advanced cooling design enables 24/7 operation without degradation of image quality or work performance, making the projector ideal for applications that require continuous use.
-
Sealed optical engine with IP5X
Maintain crystal-clear image quality and product longevity with an advanced sealed optical engine that prevents dust from entering and affecting the thermal system.
|
| General |
| Device Type |
DLP projector - 720p |
| Built-in Devices |
Keypad |
| Networking |
Ethernet |
| Projector |
| Microdisplay |
DarkChip 3 |
| Brightness |
4000 ANSI lumens |
| Contrast Ratio |
3000000:1 (dynamic) |
| Image Size |
76.2 cm - 762 cm |
| Projection Distance |
0.88 m - 10.59 m |
| Throw Ratio |
1.37 - 1.64:1 |
| Digital Zoom Factor |
2x |
| Resolution |
WXGA - WXGA (1280 x 800) (native) / 1920 x 1080 (resized) |
| Native Aspect Ratio |
16:10 |
| Colour Support |
1.07 billion colours |
| Max Sync Rate (V x H) |
120 Hz x 102 kHz |
| Bulb type |
LED |
| Bulb life cycle |
Up to 30000 hours - normal mode |
| Controls & Adjustments |
Keystone correction |
| OSD Languages |
English, French, Spanish, Thai, Korean, German, Italian, Russian, Swedish, Dutch, Polish, Czech, Chinese (traditional), Chinese (simplified), Japanese, Turkish, Portuguese, Finnish, Indonesian, Indic (Indian Languages), Arabic, Vietnamese, Greek, Hungarian |
| Features |
16ms Input Lag, 24/7 operation, 4 Corner Correction, Crestron Connected, AMX Control System, instant on/off, auto power on, Auto Power Off, 360° projection |
| Lens |
| Type |
Zoom lens |
| Focus Type |
Manual |
| Lens Aperture |
F/1.6-1.75 |
| Zoom Type |
Manual |
| Zoom Factor |
1.2x |
| Keystone Correction Direction |
Horizontal, vertical |
| Vertical Keystone Correction |
-40 / +40 |
| Horizontal Keystone Correction |
-40 / +40 |
| Video Input |
| Video Interfaces |
HDMI |
| Video Modes |
480p, 480i, 720p, 576i, 576p, 1080p, 1080i |
| Speakers |
| Type |
Internal |
| Sound Output Mode |
Mono |
| Output Power / Channel |
10 Watt |
| Speakers |
1 x mixed channel |

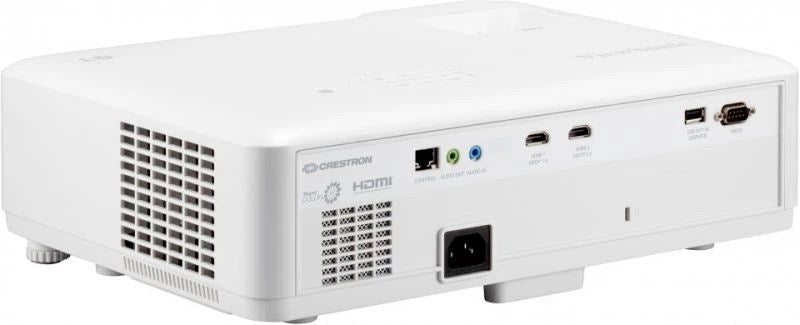

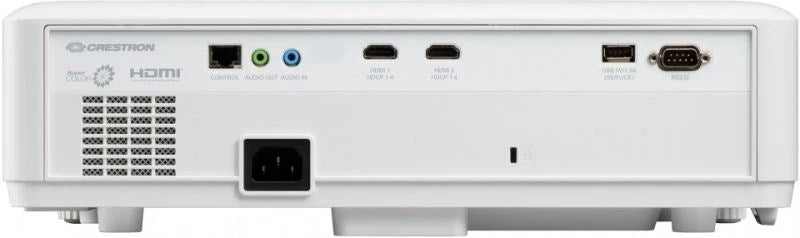

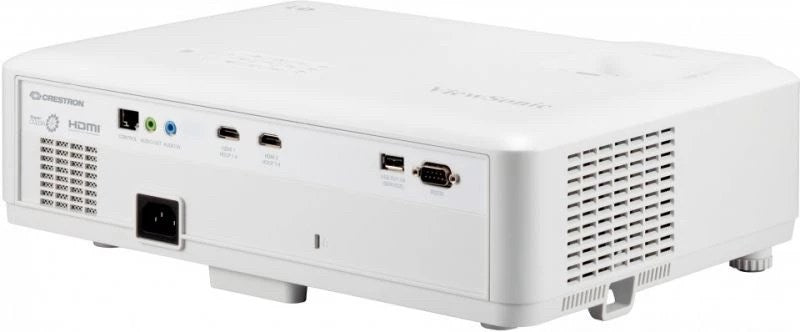

| Expansion / Connectivity |

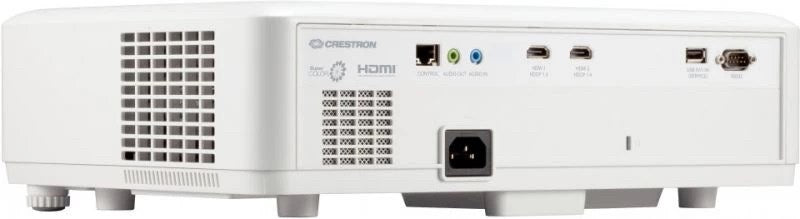

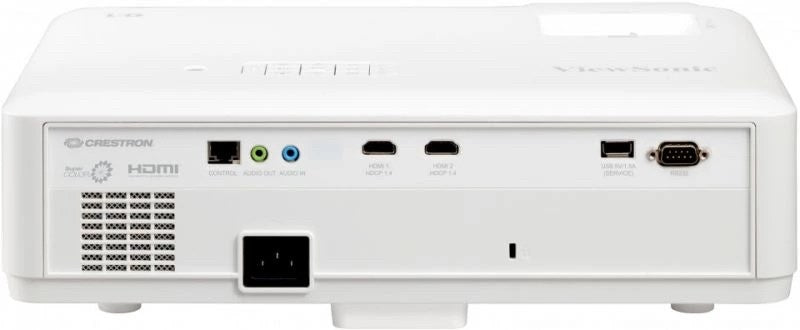

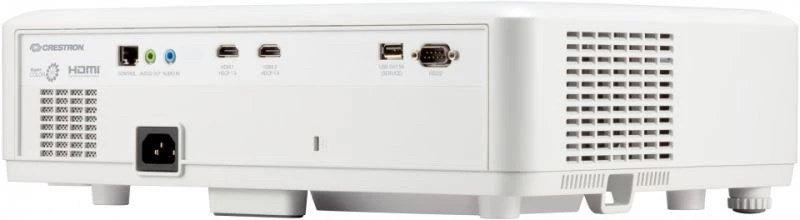

| Interfaces |
1 x USB 2.0 - 4 pin USB Type A
1 x network - RJ-45
1 x audio line-in - mini-phone stereo 3.5 mm
1 x audio line-out - mini-phone stereo 3.5 mm
1 x serial RS-232 - 9 pin D-Sub (DB-9)
2 x HDMI - 19 pin HDMI Type A |
| Miscellaneous |
| Included Accessories |

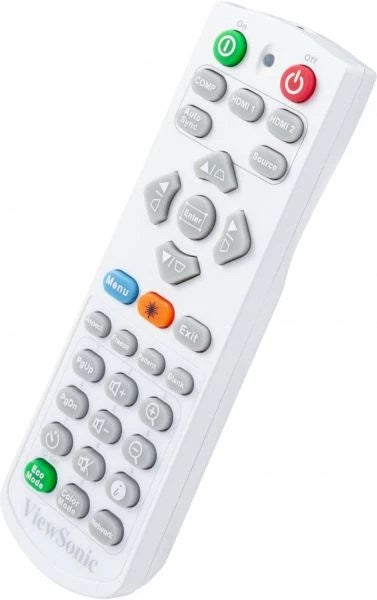

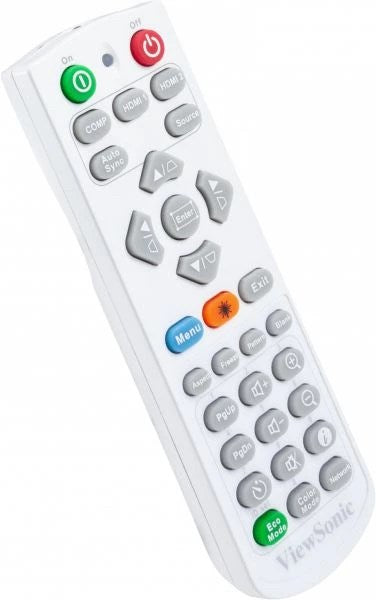

Remote control with laser pointer |
| Security Features |
Security lock slot (cable lock sold separately) |
| Security Slot Type |
Kensington security slot |
| Compliant Standards |
HDCP 1.4, IP5X, FCC Part 15 B, RoHS, Directive 2014/30/EU, EMC, CAN ICES-3(B)/NMB3(B), LVD 2014/35/EU, WEEE 2012/19/EU, 2011/65/EU |
| Power |
| Power Source |
AC |
| Voltage Required |
AC 100-240 V (50/60 Hz) |
| Power Consumption Operational |
310 Watt |
| Power Consumption Stand by |
0.5 Watt |
| Dimensions & Weight |
| Width |
38.6 cm |
| Depth |
11.6 cm |
| Height |
27.6 cm |
| Weight |
5 kg |
| Dimensions & Weight (Shipping) |
| Shipping Width |
49 cm |
| Shipping Depth |
26.8 cm |
| Shipping Height |
37.6 cm |
| Shipping Weight |
7 kg |
| Manufacturer Warranty |
| Service & Support |
Limited warranty - 3 years - pick-up and return
Limited warranty - light source - 3 years - 20000 hours |
| Environmental Parameters |
| Min Operating Temperature |
0 °C |
| Max Operating Temperature |
40 °C |
| Humidity Range Operating |
10 - 90% (non-condensing) |
| Sound Emission |
34 dB |
| Sound Emission (Economic Mode) |
27 dB |
