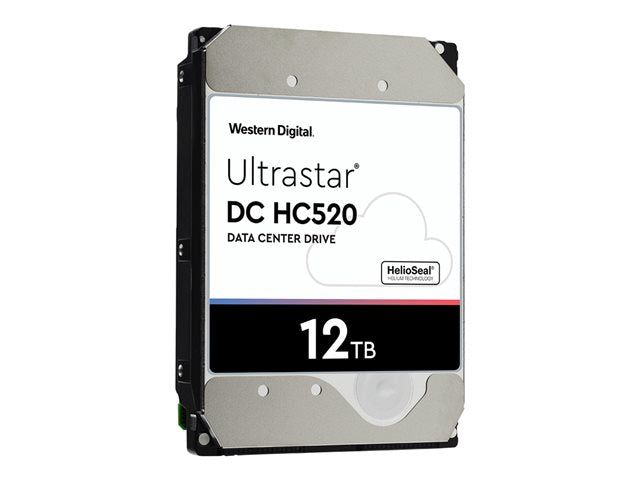

WESTERN DIGITAL SE MM CRU HE12 устройство w/Carrier 12TB SAS 512E ISE SE-4UMM-12C04

WESTERN DIGITAL SE MM CRU HE12 устройство w/Carrier 12TB SAS 512E ISE SE-4UMM-12C04

by Western digital
SKU KXG0144208

Избери период за изплащане и виж месечната вноска

Месечна вноска Обща сума за плащане ГПР Лихва Банка

Description

WESTERN DIGITAL SE MM CRU HE12 Drive w/Carrier 12TB SAS 512E ISE SE-4UMM-12C04

Manufacturer WESTERN DIGITAL
Manufacturer Part No 1EX1007

Marketing Description
The breadth and depth of big data is driving the universal need for higher capacities across a broad spectrum of applications and workloads. Laying the foundation for a worry-free data center, Western Digital delivers the capacity to conquer the data explosion with the Ultrastar DC HC500 series of hard drives.
Product Features
  • HelioSeal Technology helps solve challenges facing next generation data centers
    Data centers are facing growing pressures. Data volume is expanding, operating costs are rising, yet budgets remain flat. Datacenter ready features like a second generation dual-stage actuator - the Western Digital Micro Actuator - enhance head-positioning accuracy to deliver better performance, data integrity and overall drive reliability, especially in multi-drive environments where operational vibration is present.
  • Data durability and data security to support compliance and privacy requirements
    As drive capacity grows beyond single-digit TBs, object storage systems with erasure coding provide better data durability compared to RAID systems, given its tolerance for simultaneous error conditions. Compliance and privacy requirements drive the need for increased data security. The Ultrastar DC HC520 offers security and encryption options to help protect data from unauthorized use, including TCG SAS models.
General
Device Type Hard drive - internal
Capacity 12 TB
Form Factor 3.5"
Interface SAS 12Gb/s
Buffer Size 256 MB
Features Rotational Vibration Safeguard (RVS), Perpendicular Magnetic Recording (PMR), Dual Stage Actuator (DSA), HelioSeal, Instant Secure Erase (ISE), Rebuild Assist mode, advanced format 512e, 24x7 availability, Media Cache Plus, dual safe firmware
Width 101.6 mm
Depth 147 mm
Height 26.1 mm
Weight 660 g
Performance
Drive Transfer Rate 1.2 GBps (external)
Internal Data Rate 255 MBps
Seek Time 8 ms (average) / 8.6 ms (max)
Average Latency 4.16 ms
Spindle Speed 7200 rpm
Reliability
MTBF 2,500,000 hours
24x7 Operation Yes
Non-Recoverable Errors 1 per 10^15
Load / Unload Cycles 600,000
Expansion & Connectivity
Interfaces 1 x SAS 12 Gb/s
Compatible Bay 3.5"
Power
Power Consumption 10.1 Watt (active)
6.1 Watt (idle)
Miscellaneous
Included Accessories Carrier
Manufacturer Warranty
Service & Support Limited warranty - 5 years
Environmental Parameters
Min Operating Temperature 5 °C
Max Operating Temperature 60 °C
Min Storage Temperature -40 °C
Max Storage Temperature 70 °C
Shock Tolerance (operating) 70 g @ 2 ms half-sine wave
Shock Tolerance (non-operating) 300 g @ 2 ms half-sine wave
Vibration Tolerance (operating) 0.67 g @ 5-500 Hz
Vibration Tolerance (non-operating) 1.04 g @ 2-200 Hz
Compatibility Information
Designed For P/N: 1EX0545
