| Marketing Description |

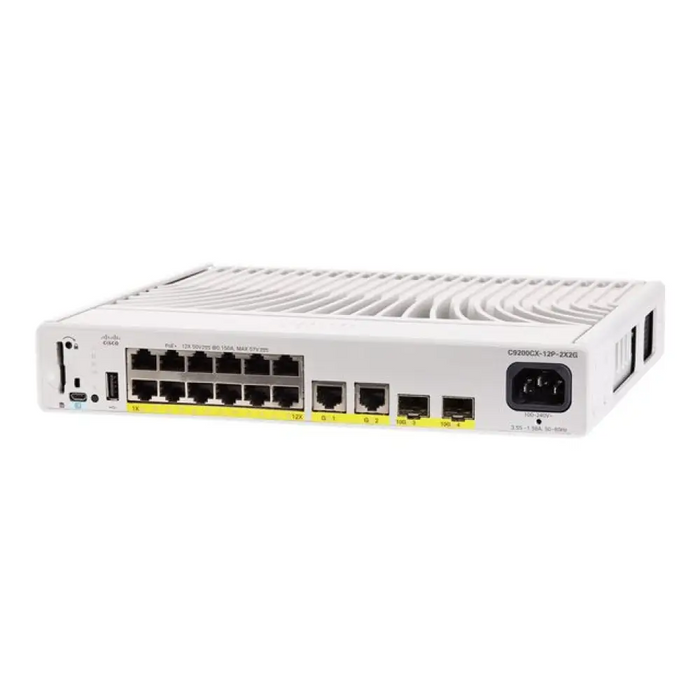

| The Cisco Catalyst 9200CX switch is engineered to meet the demands of modern networks, offering robust capacity, advanced networking capabilities, and high performance. It supports a wide range of virtual networks and IPv4/IPv6 routing entries, making it a suitable choice for organizations looking to future-proof their network infrastructure. With its advanced Layer 3 switching capabilities and support for multiple routing protocols, this switch is capable of handling complex and demanding network environments. Security is a priority, with features like MACsec support and Access Control List (ACL) support ensuring a secure network experience. Additionally, its fanless design and compact form factor make it a versatile addition to any data center. Whether you're looking to upgrade your current setup or deploy a new network, the Cisco Catalyst 9200CX offers the performance, security, and flexibility needed to support your business objectives. |
| Product Features |
-
Robust capacity
With support for up to 16 virtual networks, 14,000 IPv4 routes, and dual-stack IPv4/IPv6 routing entries, the Cisco Catalyst 9200CX ensures comprehensive coverage for evolving network demands.
-
Advanced networking
Featuring Layer 3 advanced switching, support for multiple routing protocols including EIGRP, OSPF, and RIP, and comprehensive Quality of Service (QoS) capabilities, this switch is designed to handle complex networks.
-
High performance
Equipped with a 4 GB RAM and 8 GB flash memory, the Cisco Catalyst 9200CX delivers exceptional performance, ensuring smooth and efficient operation even in high-demand environments.
-
Enhanced security
MACsec support, Access Control List (ACL) support, and 802.1x authentication provide a secure network environment, safeguarding against unauthorized access and threats.
-
Flexible connectivity
This switch offers a variety of connectivity options including RJ-45, SFP+ ports for uplinks, and a console (micro-USB), catering to diverse networking requirements and setups.
|
| General |
| Device Type |
Switch - 12 ports - L3 - Managed |
| Enclosure Type |
Rack-mountable 1U |
| Subtype |
Gigabit Ethernet |
| Ports |
12 x 10/100/1000 (PoE+) + 2 x 1000Base-T + 2 x 10 Gigabit SFP+ (uplink) |
| Power Over Ethernet (PoE) |
PoE+ |
| PoE Budget |
240 W |
| Performance |
Switching capacity: 120 Gbps
Forwarding rate: 95.23 Mpps
Packet buffer size: 6 MB |
| Capacity |
Virtual networks: 16
IPv4 routes: 14000
Direct IPv4 routes: 10000
Indirect IPv4 routes: 4000
IPv4 routing entries: 4000
IPv6 routing entries: 2000
Multicast scale: 1000
QoS scale entries: 1000
ACL scale entries: 1600
Flexible NetFlow entries: 16000
VLAN IDs: 4096
PVST instances: 128
STP Virtual Ports for PVST: 13000
STP Virtual Ports for MST: 13000 |
| MAC Address Table Size |
32000 entries |
| Jumbo Frame Support |
9198 bytes |
| Routing Protocol |
OSPF, RIP, RIP-1, RIP-2, EIGRP, VRRP, PIM-SM, OSPFv3, EIGRP for IPv6, PIM-SSM, policy-based routing (PBR), RIPng, MSTP |
| Remote Management Protocol |
SNMP 1, SNMP 2c, SNMP 3, RMON 1, RMON 2, CLI, NETCONF, RESTCONF, YANG |
| Encryption Algorithm |
128-bit AES |
| Features |
Fanless, QoS, Rapid PVST+, SRR, PXE support, RSPAN, NetFlow, Energy Efficient Ethernet, MIB, CoS, FNF, 802.1x authentication, DSCP support, MACsec support, CoPP, SPAN, EEM, PIM, FHS, PVLAN support, CIR, ACL support |
| Compliant Standards |
IEEE 802.3, IEEE 802.3at, IEEE 802.3af, IEEE 802.1s, IEEE 802.1w, IEEE 802.1p, IEEE 802.1x, IEEE 802.3ad (LACP), IEEE 802.3x, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.1ae |
| RAM |
4 GB |
| Flash Memory |
8 GB |
| Built-in Devices |
RFID tag |
| Status Indicators |
Power |
| Expansion / Connectivity |
| Interfaces |
12 x 1000Base-T RJ-45 PoE+ - 30 W
2 x 1000Base-T RJ-45
2 x 10GBase-X SFP+ uplink
1 x USB 2.0
1 x console (micro-USB) |
| Expansion Slots |
1 (total) / 1 (free) x SD Memory Card |
| Power |
| Power Device |
Internal power supply |
| Power Provided |
310 Watt |
| Voltage Required |
AC 100-240 V (50/60 Hz) |
| Miscellaneous |
| MTBF |
553,140 hours |
| Compliant Standards |
Plug and Play, CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN 61000-6-1, AS/NZS 60950-1, CCC, ICES-003 Class A, UL 60950-1, IEC 60950-1, EN 60950-1, RoHS, AS/NZS 3548 Class A, BSMI Class A, VCCI Class A, CNS 13438, EN 55022 Class A, FCC CFR47 Part 15 B Class A, EN 300 386, KN32, KN35, EN 55032 Class A, CISPR 32 Class A, CAN/CSA-C22.2 No. 60950-1, TCVN 7189 Class A, V-3 Class A, TCVN 7317, CISPR 35 |
| Dimensions & Weight |
| Width |
26.9 cm |
| Depth |
24.4 cm |
| Height |
4.4 cm |
| Weight |
2.99 kg |
| Manufacturer Warranty |
| Service & Support |
Limited warranty - replacement - lifetime - response time: next business day
Technical support - consulting - 90 days |
| Environmental Parameters |
| Min Operating Temperature |
-5 °C |
| Max Operating Temperature |
45 °C |
| Humidity Range Operating |
5 - 90% (non-condensing) |
| Min Storage Temperature |
-40 °C |
| Max Storage Temperature |
70 °C |
| Humidity Range Storage |
5 - 90% (non-condensing) |
