| Marketing Description |

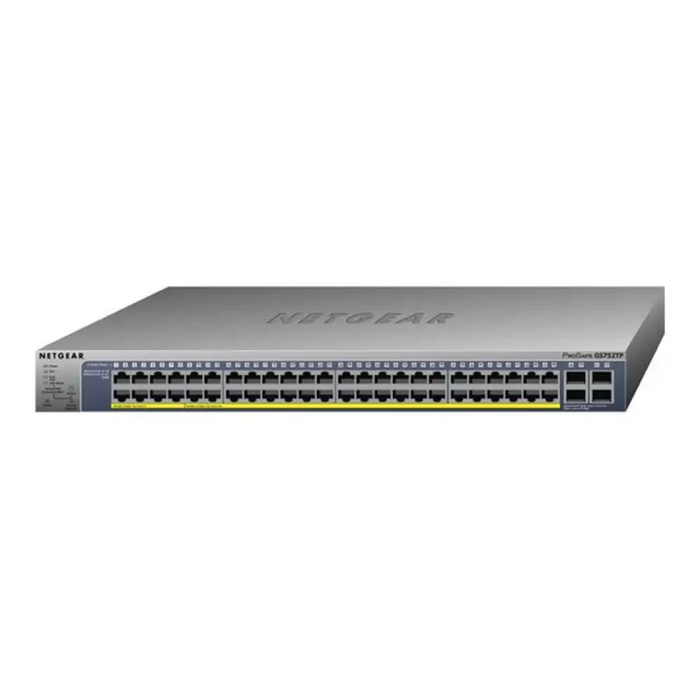

| GS752TP is Gigabit PoE/ PoE+ Smart Switche that comes with PoE capabilities on all ports and supports PoE+ with up to 30W of power budget on the first 8 ports, providing hardware investment protections so that the switch can support many more PoE powered devices and higher-powered devices down the road. There has also been an addition of high-powered PoE+ Smart Switch into the portfolio. It also comes with 4 dedicated Gigabit SFP ports for fiber connectivity. |
| Product Features |
-
Designed for converged network, big or small
Gigabit Speed with all ports capable of support either PoE or PoE+. Auto Voice VLAN for fast and reliable deployment of VoIP. Auto Video VLAN, following the same concept of Auto Voice, help speed up your deployment of IP-based surveillance system. Static routing, helps to route internal traffic for more efficient use of network resources. IGMP and MLD snooping, providing advanced multicast filtering.
-
Build a future-proof network with NETGEAR
Solid performance with non-blocking architecture, 8K MAC addresses, 256 VLANs, 480 shared ACL entries, 32static routes, and 1,024 Multicast Groups. Comprehensive IPv6 supporting management, QoS and ACL, ensuring investment protection and a smooth migration to IPv6-based network. PoE+ support on all models with GS728TPP support PoE+ on all ports, providing flexibility in the future to add power-hungry devices such as video phone, PTZ camera and 11ac Wireless APs into the network. 4 dedicated SFPs, not only providing fiber uplinks, but also uplink redundancy and failover, improving reliability and availability for network virtualization. Energy Efficient Ethernet (IEEE802.3az) support for more energy saving in the future when more EEE-compliant end devices come to market. Advanced QoS with IPv4/IPv6 ingress traffic filtering (ACLs) and prioritization (QoS - DiffServ). Dynamic VLAN assignment for easy user authentication and location-independent access to network.
-
Network development made easy
Auto Voice VLAN for easy development of VoIP. Auto Video for simple deployment of IP Surveillaince. ACL Wizard for a guided tour to set up your network access control. Smart Control Center, a powerful tool for multi-switch discovery, deployment, monitoring and firmware upgrade. PoE Timer for scheduling on/off time of your PoE powered devices. With PD and PoE capability on the same device, GS516TP make network switch deployment truly free from AC power outlet. It provides maximum flexibility for network build-up, modifications and re-layout.
|
| General |
| Device Type |
Switch - 48 ports - L3 Lite - smart |
| Enclosure Type |
Desktop, rack-mountable 1U |
| Subtype |
Gigabit Ethernet |
| Ports |
8 x 10/100/1000 (PoE+) + 40 x 10/100/1000 (PoE) + 4 x SFP |
| Power Over Ethernet (PoE) |
PoE+ |
| PoE Budget |
384 W |
| Performance |
Bandwidth: 104 Gbps
Packet buffer size: 8 MB |
| Capacity |
Virtual interfaces (VLANs): 256
ACL entries: 480
Layer 2 multicast groups: 1024
Static routes: 32
Priority queues per port: 4 |
| MAC Address Table Size |
8K entries |
| Routing Protocol |
IGMP, IGMPv2, IGMPv3, MLD, MLDv2 |
| Remote Management Protocol |
RMON 1, RMON 2, RMON 3, RMON 9, SNMP 1, SNMP 2, SNMP 3, HTTPS, TFTP, HTTP |
| Encryption Algorithm |
SSL, TLS 1.0 |
| Authentication Method |
RADIUS, TACACS+ |
| Features |
IGMP snooping, MLD snooping, VoIP support, 8MB packet buffer, static routing, QoS, 802.1x authentication, DHCP support, DHCP snooping, auto-sensing per device, flow control, full duplex mode, LLDP support, MSTP support, RSTP support, STP support, store and forward, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, DHCP client, ACL support, Port Security, DiffServ support, CoS, WRR queuing, ToS, DSCP support, port mirroring, SPQ, administrator's password, SNTP support, cable test, TFTP support, Syslog support, PoE timer, protected ports, DHCP filtering |
| Compliant Standards |
IEEE 802.3at, IEEE 802.3af, IEEE 802.1x, IEEE 802.1p, IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.1Q, IEEE 802.3x, IEEE 802.3z, IEEE 802.3ad (LACP), IEEE 802.1ab (LLDP), IEEE 802.1D, IEEE 802.1s, IEEE 802.1w |
| Status Indicators |
Power, PoE, link/activity, fan, port transmission speed, speed |
| Expansion / Connectivity |
| Interfaces |
48 x 1000Base-T RJ-45 8 ports (PoE+) / 40 ports (PoE)
4 x 1000Base-X SFP |
| Power |
| Power Device |
Internal power supply |
| Power Consumption Operational |
512.8 Watt |
| Miscellaneous |
| Rack Mounting Kit |
Included |
| MTBF |
220,447 hours |
| Compliant Standards |
TLS v1.0, CCC, CISPR 22, C-Tick Class A, EN50082-1, EN 55022 Class A, EN55024, VCCI Class A, FCC Part 15 A, CSA 22.2 No. 950, cUL, EN 60950, IEC 950, UL 1950, RoHS, WEEE |
| Localisation |
Europe |
| Dimensions & Weight |
| Width |
44 cm |
| Depth |
31.6 cm |
| Height |
4.3 cm |
| Weight |
5.1 kg |
| Manufacturer Warranty |
| Service & Support |
Limited warranty - replacement - lifetime - response time: next business day
Technical support - phone consulting - 90 days |
| Environmental Parameters |
| Min Operating Temperature |
0 °C |
| Max Operating Temperature |
50 °C |
| Humidity Range Operating |
95% (non-condensing) |
| Min Storage Temperature |
-20 °C |
| Max Storage Temperature |
70 °C |
