| Marketing Description |
| The Catalyst 9200 series delivers the superior features. It's highly secure and always on, and it provides IT simplicity, resulting in a great experience every time. |
| Product Features |
-
Super secure
Get advanced security features that protect the integrity of your hardware, software, and all data that flows through the switch.
-
Always on
Catalyst 9200 series switches provide enterprise-level resiliency, analytics, and assurance to keep your business up and running seamlessly.
|
| General |
| Device Type |

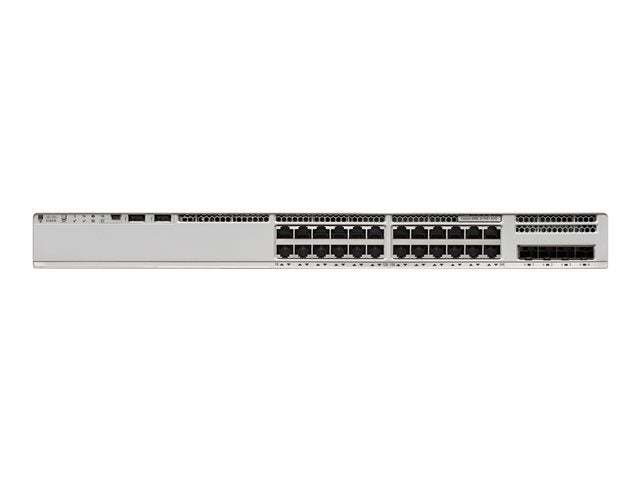

Switch - 24 ports - L3 - Managed - stackable |
| Enclosure Type |
Rack-mountable |
| Subtype |
Gigabit Ethernet |
| Ports |
8 x 100/1000/2.5G/5G/10GBase-T + 16 x 10/100/1000 (PoE+) |
| Power Over Ethernet (PoE) |
PoE+ |
| PoE Budget |
370 W |
| Performance |
Stacking bandwidth: 80 Gbps
Switching capacity: 272 Gbps
Switching capacity with stacking: 352 Gbps
Forwarding rate: 214.28 Mpps |
| Capacity |
Virtual networks: 1
IPv4 routes: 11000
IPv4 routing table entries: 3000
IPv6 routing table entries: 1500
Multicast scale: 1000
ACL scale entries: 1500
FNF entries: 16000
VLANs supported: 1024
Switched virtual interfaces (SVIs): 512
QoS hardware queues per port: 8
Packet buffer size: 6 MB |
| MAC Address Table Size |
16000 entries |
| Jumbo Frame Support |
9198 bytes |
| Routing Protocol |
OSPF, RIP, IS-IS, RIP-1, RIP-2, EIGRP, HSRP, VRRP, PIM-SM, EIGRP for IPv6, OSPFv3, PIM-SSM, MSDP, policy-based routing (PBR), RIPng, MSTP |
| Remote Management Protocol |
SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF, IPv4, IPv6, YANG |
| Encryption Algorithm |
128-bit AES |
| Features |
ARP support, STP support, QoS, Rapid PVST+, SRR, PXE support, RSPAN, Energy Efficient Ethernet, MIB, VRF, CoS, FNF, DSCP support, MACsec support, CoPP, VXLAN, LISP, SPAN, SGT caching, EEM, PIM, FHS, PVLAN support, CIR, Cisco StackWise-80 technology |
| Compliant Standards |
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3bz |
| RAM |
2 GB |
| Flash Memory |
4 GB |
| Expansion / Connectivity |
| Interfaces |
8 x 100/1000/2.5G/5G/10GBase-T RJ-45
16 x 1000Base-T RJ-45 PoE+
1 x network stack device
1 x management (LAN) RJ-45
1 x console RJ-45 |
| Power |
| Power Device |
Internal power supply - hot-plug |
| Max Supported Qty |
2 |
| Power Redundancy |
Optional |
| Voltage Required |
AC 100-240 V (50 - 60 Hz) |
| Miscellaneous |
| MTBF |
379,410 hours |
| Compliant Standards |
CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN 61000-6-1, AS/NZS 60950-1, CCC, ICES-003 Class A, UL 60950-1, IEC 60950-1, EN 60950-1, RoHS, AS/NZS 3548 Class A, BSMI Class A, VCCI Class A, CNS 13438, EN 55022 Class A, FCC CFR47 Part 15 B Class A, EN 300 386, KN32, KN35, EN 55032 Class A, CISPR 32 Class A, CAN/CSA-C22.2 No. 60950-1, TCVN 7189 Class A, V-3 Class A, TCVN 7317, CISPR 35 |
| Dimensions & Weight |
| Width |
44.5 cm |
| Depth |
4.4 cm |
| Height |
35 cm |
| Weight |
5.44 kg |
| Manufacturer Warranty |
| Service & Support |
Limited warranty - replacement - lifetime - response time: next business day
Technical support - consulting - 90 days |
| Environmental Parameters |
| Min Operating Temperature |
-5 °C |
| Max Operating Temperature |
45 °C |
| Humidity Range Operating |
5 - 90% (non-condensing) |
| Min Storage Temperature |
-40 °C |
| Max Storage Temperature |
70 °C |
| Humidity Range Storage |
5 - 90% (non-condensing) |
