| Marketing Description |

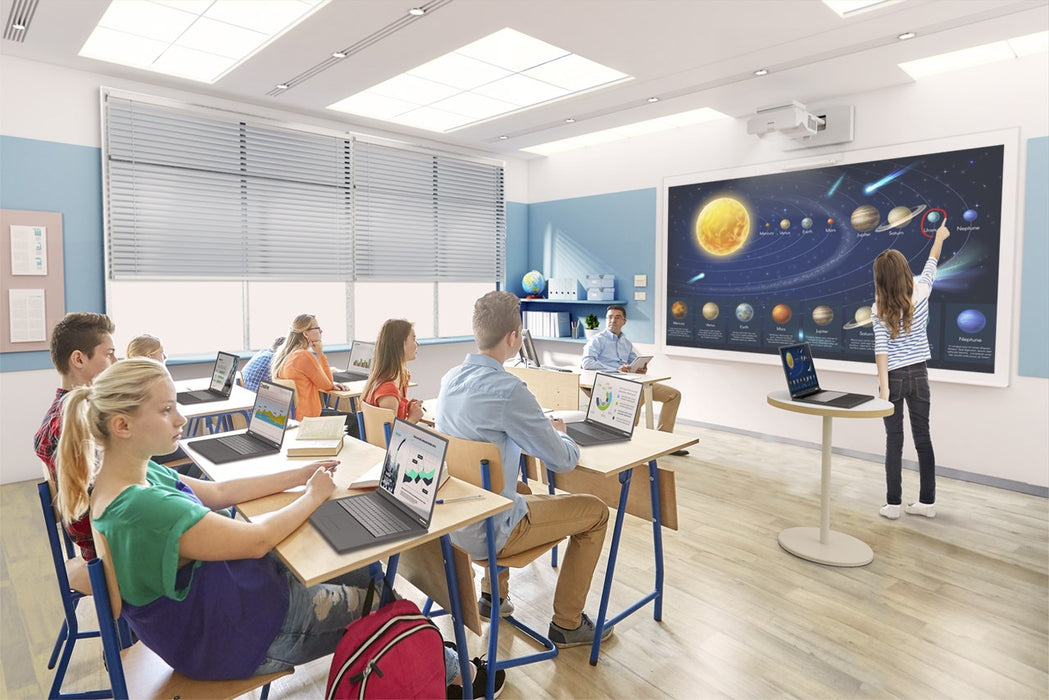

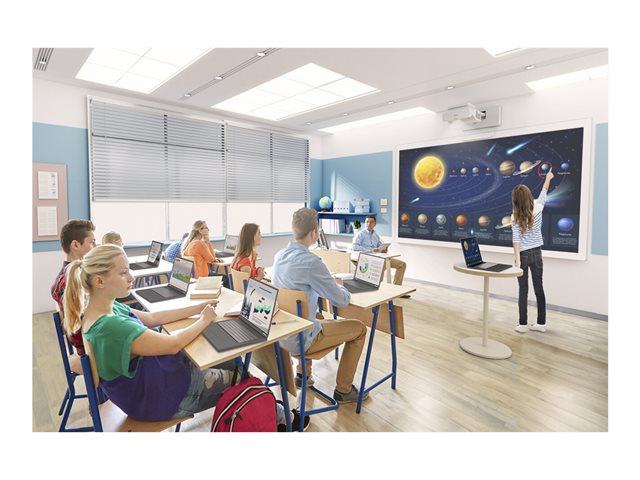

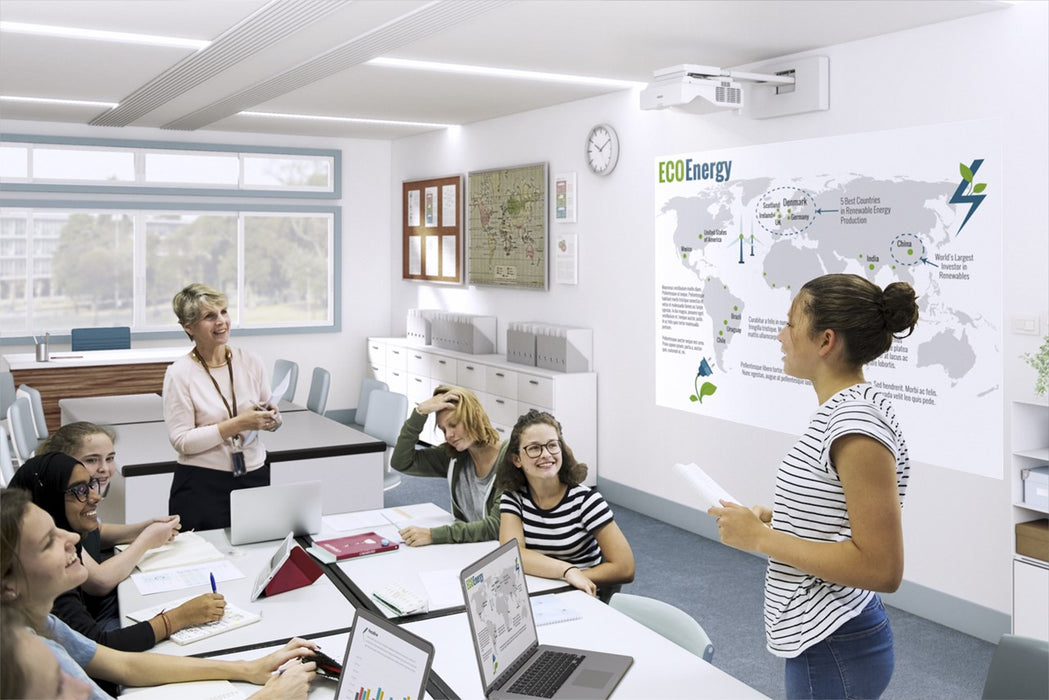

Designed for ease of use in collaborative learning environments, BrightLink ultra short throw displays simplify interactivity in the classroom by offering compatibility with frequently used software applications including Office 365 and Google Workspace. Offering a high-quality 16:10 WXGA display up to 100", the BrightLink 760Wi interactive display delivers easy-to-read images that provides up to 85 percent more interactive space than a 75" flat panel - for a low cost per square inch. With 4,100 lumens of color and white brightness and proprietary 3-chip 3LCD technology, this display delivers a remarkably bright and colorful picture that can be easily viewed in ambient light conditions from nearly anywhere in the classroom.
A convenient and seamless solution, the BrightLink 760Wi features wireless connectivity with casting capability from PCs, Mac computers, Chromebooks, and Android and iOS devices, along with convenient split screen functionality, making it easy for teachers and students to wirelessly display up to four screens simultaneously. With its unique ability to display and support interactivity on existing whiteboards, this dual-pen-enabled display has an optional touch function and delivers exceptional value by allowing teachers to retain valuable whiteboard space when the display is not in use. |
| Product Features |
-
Interactive display up to 100"
Provides up to 85 percent more interactive space than a 75" interactive panel, for a low cost per square inch.
-
Large, easy-to-read images
16:10 WXGA resolution for true-to-life images; supports 4:3 and widescreen 16:9 aspect ratios.
-
Convenient connectivity
Works with popular applications and devices including Microsoft Office 365 and Google Workspace.
-
PC-free digital whiteboard
Draw, save, print and email without a PC; share whiteboard content with other networked BrightLink projectors.
|
| General |
| Device Type |
3LCD projector |
| Built-in Devices |
Speaker |
| Networking |
802.11a/b/g/n/ac, Ethernet |
| Enclosure Colour |
White |
| Projector |
| Brightness (White) |
4100 lumens |
| Brightness (Colour) |
4100 lumens |
| Brightness (Reduced) |
2800 lumens |
| Contrast Ratio |
2500000:1 |
| Image Size |
135 cm - 254 cm |
| Throw Ratio |
0.27 - 0.37:1 |
| Digital Zoom Factor |
1.35x |
| Resolution |
WXGA - WXGA (1280 x 800) |
| Native Aspect Ratio |
16:10 |
| Colour Support |
1.07 billion colours |
| Max Sync Rate (V x H) |
120 Hz |
| Bulb type |
Laser 205 Watt |
| Bulb life cycle |
Up to 20000 hour(s) - high power
Up to 30000 hour(s) - economic mode |
| Features |
EPSON 3LCD technology, auto power on, Digital Zoom, Direct Power Off, Direct Power On, document camera compatible, image shift, instant on/off, PC free, PC interactive, EPSON Quick Corner, screen mirroring, Split Screen, web control, web remote, whiteboard sharing function, Crestron Integrated Partner, Crestron RoomView, Extron IPLink certified, AMX Device Discovery, Control4 SDDP, Blackboard Mode, Cinema Mode, Dynamic Mode, Presentation Mode, sRGB colour profile, RGB liquid crystal shutter |
| Lens |
| Type |
Ultra short-throw lens |
| Focus Type |
Manual |
| Lens Aperture |
F/1.6 |
| Keystone Correction Direction |
Horizontal, vertical |
| Vertical Keystone Correction |
-3 / +3 |
| Horizontal Keystone Correction |
-3 / +3 |
| Video Input |
| Video Interfaces |
VGA, HDMI, composite video |
| LAN and Wireless Image Transferring Protocols |
IEEE 802.11b, IEEE 802.11g, wired LAN, IEEE 802.11a, IEEE 802.11n, Miracast, IEEE 802.11ac |
| Speakers |
| Type |
Integrated |
| Sound Output Mode |
Mono |
| Output Power / Channel |
16 Watt |
| Speakers |
1 x mixed channel |
| Expansion / Connectivity |

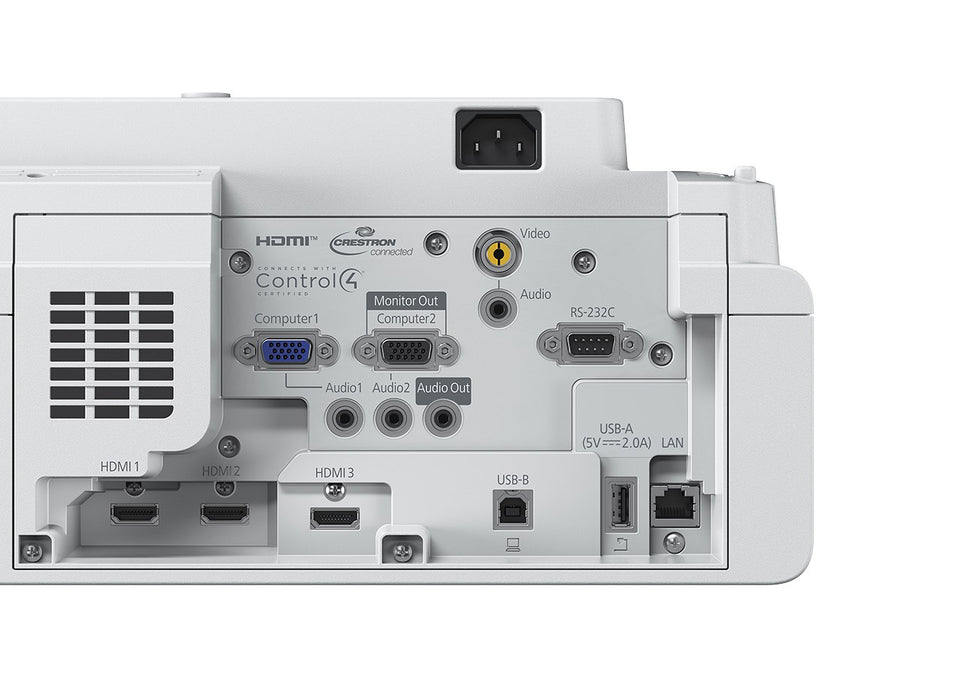

| Interfaces |
1 x audio line-out - mini-phone stereo 3.5 mm
3 x HDMI input - 19 pin HDMI Type A
2 x USB 2.0 - 4 pin USB Type A
2 x USB 2.0 - 4 pin USB Type B
3 x audio line-in - mini-phone stereo 3.5 mm
1 x microphone
1 x serial RS-232C - 9 pin D-Sub (DB-9)
2 x VGA input - 15 pin HD D-Sub (HD-15)
1 x network - RJ-45
1 x VGA output - 15 pin HD D-Sub (HD-15)
1 x composite video input - RCA |
| Miscellaneous |
| Included Accessories |
Remote control, battery for remote control |
| Security Features |
Security lock slot (cable lock sold separately), control panel lock, password lock, padlock, security cable hole, Wireless LAN Lock, Wireless LAN security, password protection |
| Security Slot Type |
Kensington security slot |
| Compliant Standards |
IPv4, IPv6 |
| Power |
| Power Source |
AC |
| Voltage Required |
AC 100-240 V (50 - 60 Hz) |
| Power Consumption Operational |
263 Watt |
| Power Consumption Stand by |
0.5 Watt |
| Software / System Requirements |
| Software Included |
Epson Easy Interactive Tools, EasyMP Multi PC Projection, Epson Projector Management Software |
| Dimensions & Weight |
| Width |
35.6 cm |
| Depth |
39.5 cm |
| Height |
13.3 cm |
| Weight |
6 kg |
| Manufacturer Warranty |
| Service & Support |
Limited warranty - 5 years / 12000 hours - carry-in |
| Environmental Parameters |
| Humidity Range Operating |
20 - 80% |
| Sound Emission |
37 dB |
| Sound Emission (Economic Mode) |
27 dB |
