| Marketing Description |

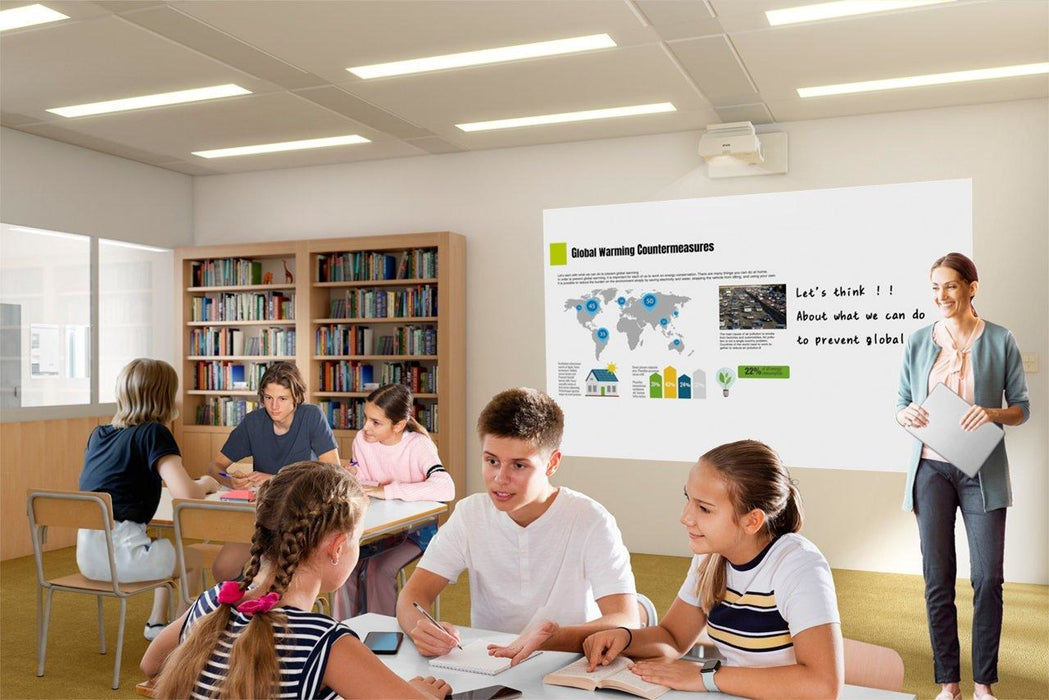

Project your vision, with a Full HD interactive large screen display up to 100" that will enhance engagement, learning and productivity.

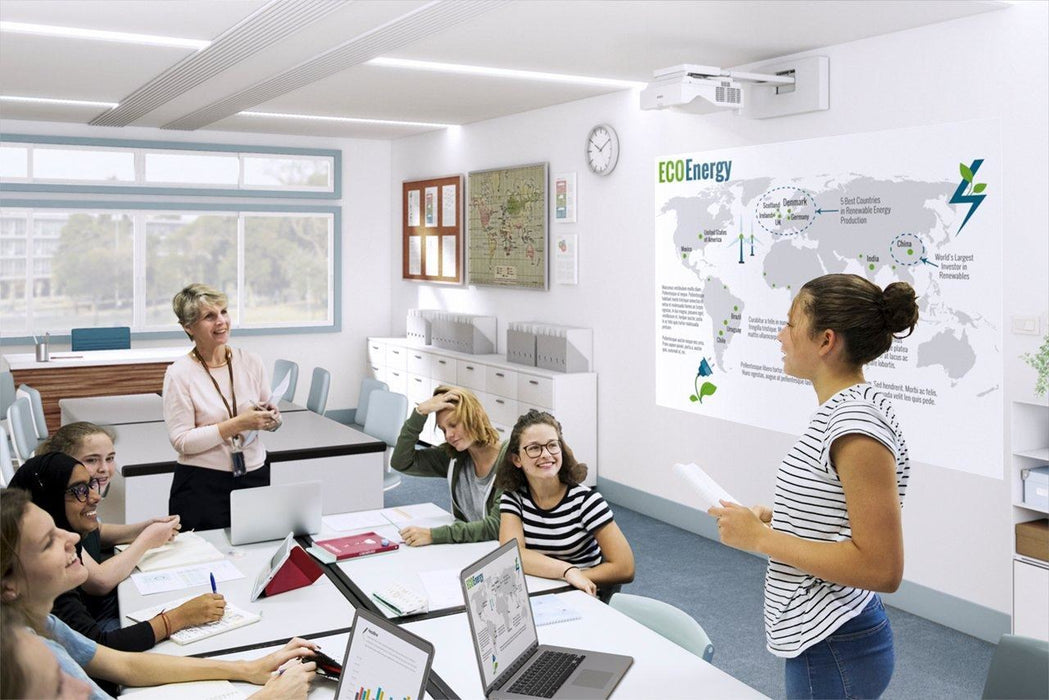

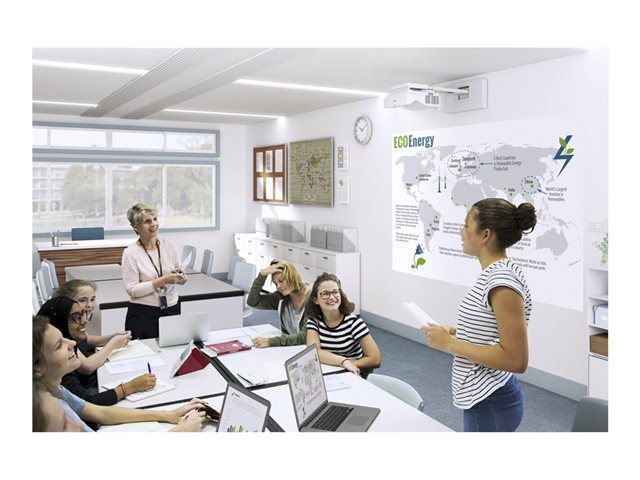

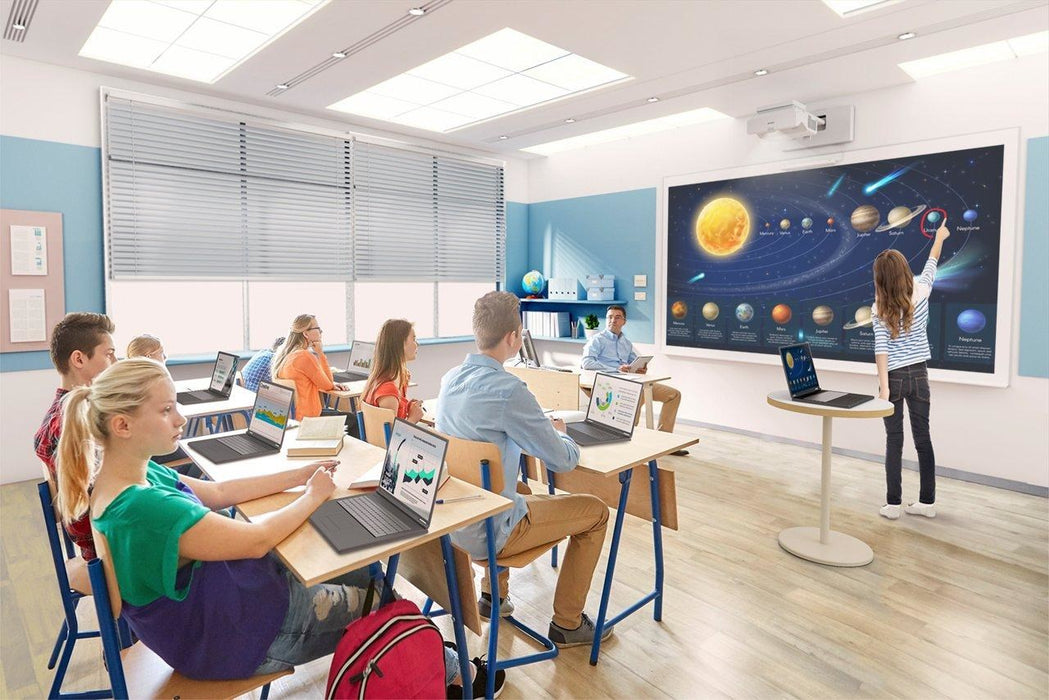

Whatever the size of class or meeting room, unrestricted and interactive learning sessions are possible with this bright, compact and affordable touch-display solution.
The EB-770FI's bright image, scalable up to 100", is clearly visible from every angle and at a distance, and content can easily be shared or streamed directly from multiple devices for the ultimate collaborative experience.
With a 4,100 lumens laser-light source, combined with 3LCD technology, it produces a large, bright and vibrant display up to 100", clearly visible from all angles and at a distance.
Versatile wired and wireless connectivity options, including screen mirroring via Miracast, allows participants to effortlessly share content from their PCs or mobile devices. The experience is immersive and user-friendly. |
| Product Features |
-
Robust connectivity
Equipped with a wide range of interfaces including HDMI, VGA, USB 2.0, and more, this projector ensures seamless connection to various devices, making it ideal for diverse presentation environments.
-
Exceptional brightness
With a brightness of 4100 lumens for both color and white output, the EB-770FI delivers vivid, bright images even in well-lit rooms, ensuring clear, engaging presentations.
-
Advanced security features
Features such as Wireless LAN Lock, control panel lock, padlock, password protection, and a Kensington security slot safeguard the projector against unauthorized access and theft, providing peace of mind.
-
Wireless and wired networking
Supports both wired and wireless networking, including IEEE 802.11a/b/g/n/ac and Miracast, offering flexible, convenient options for image transferring and making it easier to share content.
-
Long-lasting projector lamp
The projector lamp boasts a life cycle of up to 20,000 hours in normal mode, extending to 30,000 hours in economic mode, reducing maintenance and ensuring long-term, reliable use.
|
| General |
| Device Type |
3LCD projector - 1080p |
| Built-in Devices |
Speaker |
| Networking |
Ethernet |
| Enclosure Colour |
White |
| Projector |
| Brightness (White) |
4100 lumens |
| Brightness (Colour) |
4100 lumens |
| Brightness (Reduced) |
2800 lumens |
| Contrast Ratio |
2500000:1 |
| Image Size |
152.4 cm - 254 cm |
| Throw Ratio |
0.25 - 0.35:1 |
| Digital Zoom Factor |
1.35x |
| Resolution |
Full HD |
| Native Aspect Ratio |
16:9 |
| Colour Support |
1.07 billion colours |
| Max Sync Rate (V x H) |
240 Hz |
| Bulb type |
Laser |
| Bulb life cycle |
Up to 20000 hour(s) - normal mode
Up to 30000 hour(s) - economic mode |
| Features |
EPSON 3LCD technology, RGB liquid crystal shutter, 21:9 aspect ratio support, auto power on, Direct Power Off, Direct Power On, instant off, instant on, EPSON Quick Corner, Screen Share, Split Screen, Crestron Integrated Partner, Crestron RoomView, Extron IPLink certified, AMX Device Discovery, Control4 Certified, Blackboard Mode, Cinema Mode, Dynamic Mode, Presentation Mode, DICOM Simulation Mode |
| Lens |
| Focus Type |
Manual |
| Lens Aperture |
F/1.6 |
| Keystone Correction Direction |
Horizontal, vertical |
| Vertical Keystone Correction |
-3 / +3 |
| Horizontal Keystone Correction |
-3 / +3 |
| Video Input |
| Video Interfaces |
Composite video, HDMI, VGA |
| LAN and Wireless Image Transferring Protocols |
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, Miracast, wired LAN |
| Speakers |
| Type |
Integrated |
| Sound Output Mode |
Mono |
| Output Power / Channel |
16 Watt |
| Speakers |
1 x mixed channel |
| Expansion / Connectivity |

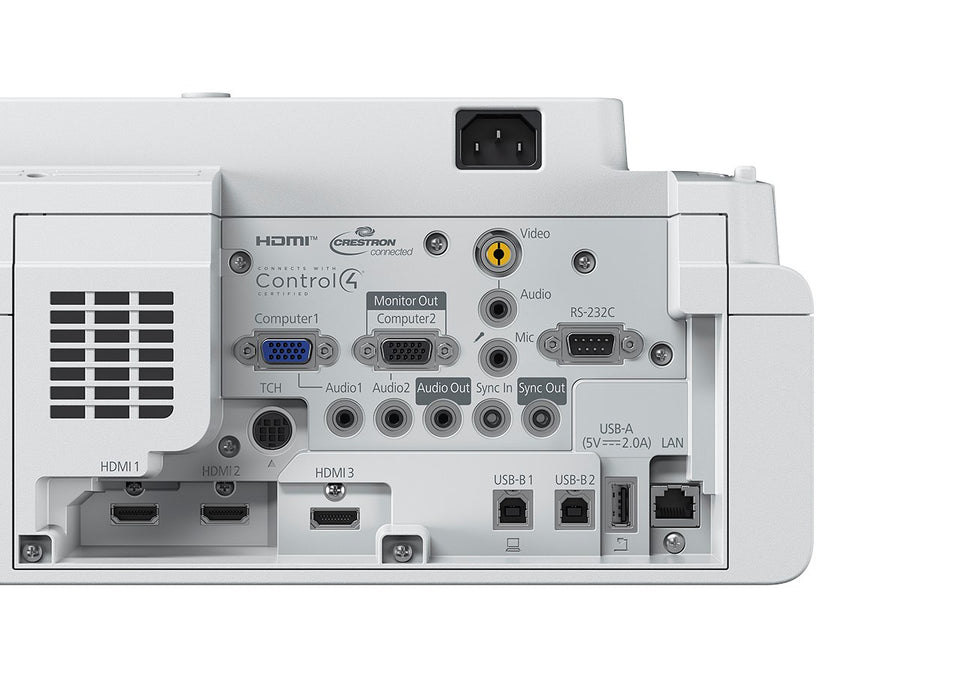

| Interfaces |
2 x VGA input - 15 pin HD D-Sub (HD-15)
1 x microphone input
3 x HDMI input - 19 pin HDMI Type A
2 x USB 2.0 - 4 pin USB Type A
1 x composite video input
3 x audio line-in - mini-phone stereo 3.5 mm
1 x audio line-out - mini-phone stereo 3.5 mm
1 x USB 2.0 - 4 pin USB Type B
1 x serial RS-232C
1 x network - RJ-45
1 x VGA output - 15 pin HD D-Sub (HD-15)
1 x Sync in
1 x Sync out |
| Miscellaneous |
| Included Accessories |
2 x pen tips (teflon), 4 x pen tips (felt), interactive pens, pen stand, remote control, battery for remote control |
| Security Features |
Security lock slot (cable lock sold separately), control panel lock, padlock, security cable hole, Wireless LAN Lock, password protection |
| Security Slot Type |
Kensington security slot |
| Compliant Standards |
IPv4, IPv6 |
| Power |
| Power Source |
AC |
| Voltage Required |
AC 100-240 V (50 - 60 Hz) |
| Power Consumption Operational |
263 Watt |
| Power Consumption Stand by |
0.5 Watt |
| Software / System Requirements |
| Software Included |
Epson Easy Interactive Tools, EasyMP Multi PC Projection, Epson Projector Management Software |
| Dimensions & Weight |
| Width |
35.6 cm |
| Depth |
39.5 cm |
| Height |
13.3 cm |
| Weight |
6 kg |
| Manufacturer Warranty |
| Service & Support |
Limited warranty - 5 years / 12000 hours - carry-in |
| Environmental Parameters |
| Humidity Range Operating |
20 - 80% |
| Sound Emission |
37 dB |
| Sound Emission (Economic Mode) |
27 dB |
