| Marketing Description |
| Create stunning visual displays and immersive environments with the LightScene EV-115, the cutting-edge digital signage solution from Epson. A convergence of lighting and display technology, LightScene laser projectors captivate audiences by simultaneously illuminating and projecting on virtually any surface or material, unleashing dynamic, experiential content for digital art, commercial signage and décor applications. |
| Product Features |
-
Integrated lighting and digital projection
Project dynamic, experiential content without being bound by a frame to engage audiences in retail, hospitality and event spaces, showrooms and museums.
-
Breakthrough laser technology
Features a laser light source of long hours of virtually maintenance-free operation, plus a sealed optical engine, for amazing image quality matched by outstanding performance.
-
Blends in discreetly
Spotlight design easily blends into the surroundings, offering vertical and horizontal rotation, with flexible mounting on tracks, floors, walls or ceilings.
-
Easily programmable with the built-in media-player
Which includes templates, effects, color filters and customizable options; playlist and playback function allows for seamless content management for single or multiple LightScene projectors.
-
Creative Content Projection app
Pre-loaded with video content and customizable features, including a touch-enabled, 4-point correction to easily upload customized content and messaging to LightScene and easily adjust to the desirable size.
-
3-chip 3LCD image quality
With up to 2,200 lumens of equal color and white brightness for vibrant, rich color.
|
| General |
| Device Type |
3LCD projector |
| Networking |
802.11a/b/g/n, Ethernet |
| Enclosure Colour |
Black |
| Projector |
| Brightness (White) |
2200 lumens |
| Brightness (Colour) |
2200 lumens |
| Brightness (Reduced) |
1100 lumens |
| Contrast Ratio |
2000:1 / 2500000:1 (dynamic) |
| Image Size |
76.2 cm - 381 cm |
| Projection Distance |
0.9 m - 4.5 m |
| Throw Ratio |
1.38 - 2.19:1 |
| Resolution |
WXGA - WXGA (1280 x 800) |
| Native Aspect Ratio |
16:10 |
| Colour Support |
16.8 million colours |
| Bulb type |
Laser |
| Bulb life cycle |
Up to 20000 hour(s) - normal mode
Up to 30000 hour(s) - economic mode |
| Features |
EPSON 3LCD technology, Crestron Integrated Partner, Crestron RoomView, auto power on, EPSON Quick Corner, PJlink |
| Lens |
| Focus Type |
Powered |
| Lens Aperture |
F/1.51-1.92 |
| Zoom Type |
Powered |
| Zoom Factor |
1.58x |
| Keystone Correction Direction |
Horizontal, vertical |
| Vertical Keystone Correction |
-45 / +45 |
| Horizontal Keystone Correction |
-40 / +40 |
| Video Input |
| Video Interfaces |
HDMI |
| Supported Memory Cards |
SD Memory Card |
| LAN and Wireless Image Transferring Protocols |
IEEE 802.11b, IEEE 802.11g, wired LAN, IEEE 802.11n, IEEE 802.11a |
| Expansion / Connectivity |

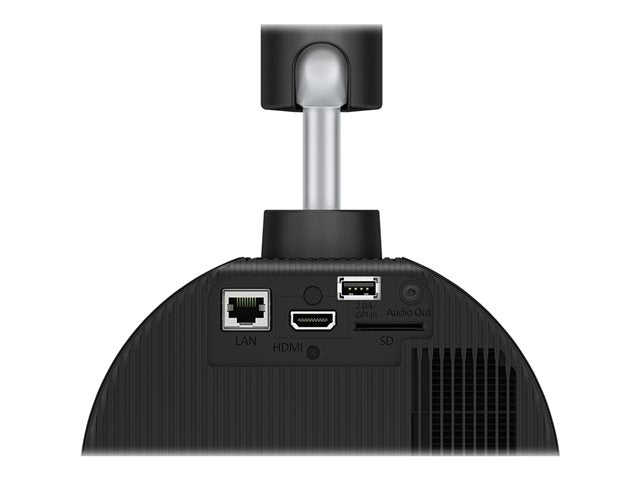

| Interfaces |
1 x USB 2.0 - 4 pin USB Type A
1 x USB 2.0 - 4 pin USB Type B (management)
1 x network - RJ-45
1 x HDMI - 19 pin HDMI Type A
1 x audio line-out - mini-phone stereo 3.5 mm |
| Miscellaneous |
| Included Accessories |
2 x HDMI cable clamps, direct mount unit, remote control, battery for remote control, cable cover, hexagon wrench |
| Security Features |
Password protection, Wireless LAN Lock |
| Compliant Standards |
IPv6 |
| Power |
| Power Source |
AC |
| Voltage Required |
AC 120/230 V (50/60 Hz) |
| Power Consumption Operational |
149 Watt |
| Software / System Requirements |
| Software Included |
Epson Projector Content Manager |
| Dimensions & Weight |
| Width |
17.5 cm |
| Depth |
26 cm |
| Height |
17.5 cm |
| Weight |
5 kg |
| Manufacturer Warranty |
| Service & Support |
Limited warranty - 5 years |
| Environmental Parameters |
| Min Operating Temperature |
5 °C |
| Max Operating Temperature |
40 °C |
| Humidity Range Operating |
20 - 80% |
| Sound Emission |
34 dBA |
| Sound Emission (Economic Mode) |
22 dBA |
