| Marketing Description |

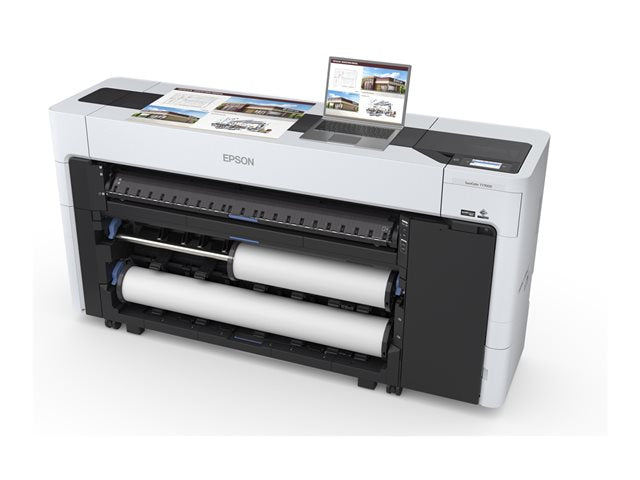

| The SC-T7700DL combines high productivity with a low total cost of ownership. It provides the capacity for extended print runs thanks to its 6-color integrated ink pack system with 1.6 L UltraChrome XD3 all-pigment ink packs, including a red. The dual-roll boosts productivity by automatically switching rolls even between two different media types and sizes or for roll-to-roll printing. |
| Product Features |
-
Focused on higher print volumes
The SC-T7700DL boasts 1.6 L ink packs, versatile dual rolls and a permanent 2.64-inch micro TFP printhead. The features result in a durable high-volume printer for customers who need speed, consistent image quality and security.
-
Fast and adaptable
High speeds up to 130 m2/hr, water resistant pigment inks, automatic media switching and bi-directional auto take up reel.
-
Ideal for print rooms or copy shops
The contemporary and versatile design make it ideal for working environments, with a flat back, front and sides it allows installation tightly against walls and cabinets. Monitor usage and consumables remotely.
|
| General |
| Printer Type |
44" large-format printer - ink-jet - colour |
| Printer |
| Inkjet Technology |
Epson Micro Piezo TFP |
| Ink Palette Supported (Colours) |
6-ink - cyan, magenta, yellow, red, photo black, matte black |
| Nozzle Configuration |
400 nozzles |
| Minimum Ink Droplet Size |
3.5 pl |
| Ink Cartridge Configuration |
6 cartridges (1 each: cyan, magenta, yellow, red, photo black, matte black) |
| Ink Type |
Epson UltraChrome XD3 Ink |
| Print Speed |
Up to 130 sq.m/hour - high speed |
| Built-in Devices |
4.3 inch colour LCD touch screen |
| Connectivity Technology |
Wireless |
| Interface |
USB, Wi-Fi, LAN |
| AirPrint Enabled |
Yes |
| Max Resolution (B&W) |
2400 x 1200 dpi |
| Max Resolution (Colour) |
2400 x 1200 dpi |
| Max Resolution Class (B&W) |
2400 x 1200 dpi |
| Max Resolution Class (Colour) |
2400 x 1200 dpi |
| Language Simulation |
Adobe PostScript 3, EPSON ESC/P Raster, HP GL/2, HP RTL, PDF 1.7 |
| Printer Features |
Borderless printing, auto take up reel, Nozzle Verification Technology |
| RAM |
| RAM Installed (Max) |
4 GB |
| Media Handling |
| Media Type |
Continuous paper, plain paper |
| Max Media Size |
Roll (111.8 cm) |
| Media Sizes |
Roll (25.4 - 111.8 cm) |
| Max Printing Length |
91 m |
| Media Feeders |
1 x manual - 1 roll - Roll (111.8 cm) |
| Networking |
| Networking |
Print server |
| Security Protocols & Features |
Wi-Fi Direct, IPsec, LDAP |
| Expansion / Connectivity |
| Connections |
USB
1 x LAN - RJ-45 |
| Miscellaneous |
| Included Accessories |
User manual (on CD) |
| Consumables Included |
1 x ink cartridge (red) - 110 ml
1 x ink cartridge (cyan) - 110 ml
1 x ink cartridge (magenta) - 110 ml
1 x ink cartridge (yellow) - 110 ml
1 x ink cartridge (photo black) - 110 ml
1 x ink cartridge (matte black) - 110 ml
1 x maintenance box |
| Compliant Standards |
Energy-Related Products (ErP) Lot 26, Nordic Swan |
| Power |
| Power Consumption Operational |
70 Watt |
| Power Consumption Stand by |
0.3 Watt |
| Power Consumption Sleep |
2 Watt |
| Environmental Parameters |
| Sound Emission (Operating) |
50 dBA |
| Dimensions & Weight |
| Width |
184.8 cm |
| Depth |
49.9 cm |
| Height |
97.5 cm |
| Weight |
155 kg |
| Dimensions & Weight (Shipping) |
| Width (Shipping) |
75 cm |
| Depth (Shipping) |
200 cm |
| Height (Shipping) |
121.5 cm |
| Weight (Shipping) |
196.5 kg |
