| Marketing Description |

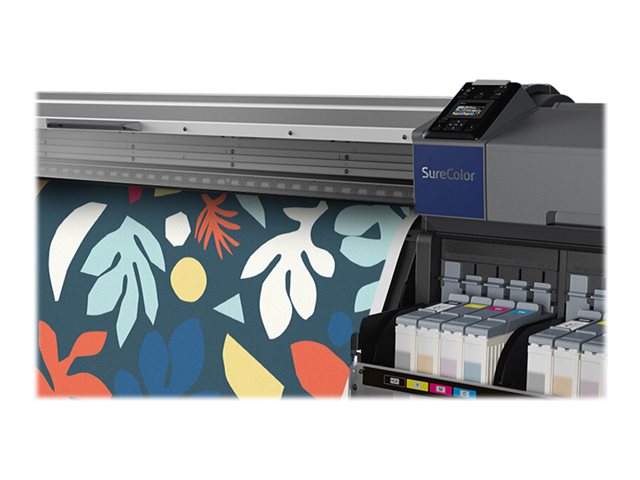

| The SC-F9400 64-inch dye sublimation printer has been developed primarily for fast, high-volume printing, for clothing, textiles and soft signage, as well as other printed merchandise. |
| Product Features |
-
Stay productive
The SC-F9400 has a maximum speed of 108.6m2/h for fast turnarounds. The updated settings deliver a lower tension and accurate registration, which improves take-up and reduces the total cost of ownership (TCO) by using lower-weight sublimation papers.
-
Wide color gamut
The SC-F9400 uses dedicated Epson UltraChrome DS inks for accurate reproductions of complex and colourful designs.
-
Ready to wear
The SureColor SC-F9400 comes with Oeko-Tex Eco Passport certification, meaning that clothing and textiles produced on the printer using UltraChrome DS inks are completely safe to wear for adults and children, including babies.
|
| General |
| Printer Type |
64" large-format printer - dye sublimation - colour |
| Printer |
| Inkjet Technology |
Epson PrecisionCore TFP |
| Ink Palette Supported (Colours) |
4-ink - cyan x 2, magenta x 2, yellow x 2, high density black x 2 |
| Nozzle Configuration |
720 nozzles (black), 720 nozzles (per color) |
| Minimum Ink Droplet Size |
4 pl |
| Refillable Tank |
Yes |
| Ink Cartridge Configuration |
8 tanks (2 each: cyan, magenta, yellow, high density black) |
| Ink Type |
Epson UltraChrome DS |
| Print Speed |
Up to 108.6 sq.m/hour - colour
Up to 108.6 sq.m/hour - B/W |
| Built-in Devices |
LCD display |
| Connectivity Technology |
Wired |
| Interface |
USB 2.0, Gigabit LAN |
| Max Resolution (B&W) |
720 x 1440 dpi |
| Max Resolution (Colour) |
720 x 1440 dpi |
| Language Simulation |
EPSON ESC/P Raster |
| Printer Features |
Automatic wet fabric wiper system, auto take up reel |
| Media Handling |
| Media Type |
Transfer paper, textile |
| Max Media Size |
Roll (162.6 cm) |
| Max Media Size (Custom) |
1626 mm |
| Media Sizes |
A2 (420 x 594 mm), A1 (594 x 841 mm), A0 (841 x 1189 mm), Roll (111.8 cm), Roll (91.4 cm), Roll (162.6 cm), Roll (61 cm) |
| Media Thickness Range |
0.4 mm - 1 mm |
| Media Feeders |
1 x manual - 1 roll - Roll (162.6 cm) |
| Networking |
| Networking |
Print server |
| Expansion / Connectivity |
| Connections |
1 x Gigabit LAN - RJ-45
1 x USB 2.0 - 4 pin USB Type B |
| Miscellaneous |
| Included Accessories |
Maintenance kit, waste bottle |
| Consumables Included |
Ink refill (cyan)
Ink refill (magenta)
Ink refill (yellow)
Ink refill (high density black) |
| Power |
| Power Device |
Power supply - internal |
| Frequency Required |
50/60 Hz |
| Power Consumption Operational |
570 Watt |
| Power Consumption Sleep |
14 Watt |
| Software / System Requirements |
| OS Required |
Microsoft Windows 7 (32/64 bits) SP1, Apple MacOS X Lion 10.7, Windows 8 (32/64 bits), Windows 8.1 (32/64 bits), Windows 10 (32/64 bits) |
| Environmental Parameters |
| Min Operating Temperature |
15 °C |
| Max Operating Temperature |
25 °C |
| Humidity Range Operating |
40 - 60% |
| Dimensions & Weight |
| Width |
262 cm |
| Depth |
93.4 cm |
| Height |
133.2 cm |
| Weight |
290 kg |
