| Marketing Description |

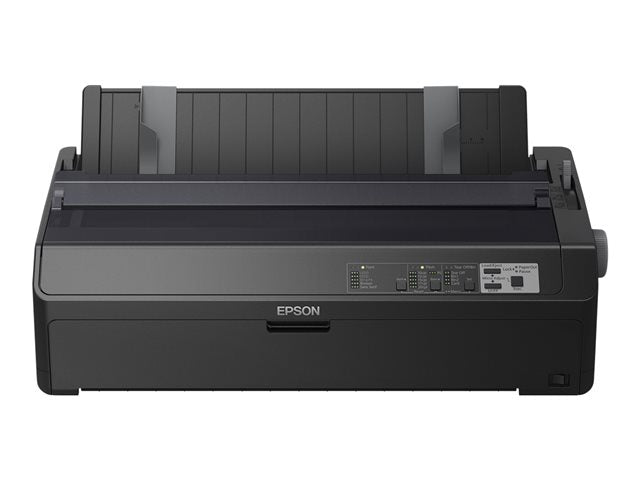

| The FX-2190IIN is a network high-volume, low TCO 136-column dot matrix printer designed for faster, more reliable network printing. A contemporary new design and smaller footprint make it an easy upgrade. |
| Product Features |
-
Market-leading print speeds
The FX-2190IIN offers an improved USD (ultra-speed draft) speed of 735 characters per second at 12 characters per inch, making a real difference to high-volume print runs such as stock reports, large batches of invoices or freight documents.
-
Outstanding reliability
Building on Epson's established and reliable dot matrix technology, the new range of printers improves the mean time between failures by 25 percent. This delivers 25,000 of power-on hours, ideal for challenging conditions where regular maintenance is not practical.
-
Smaller footprint
Epson's range of dot matrix printers has a refreshed design with a smaller footprint - depth has been reduced to just 320mm - making it easy to place into a business environment.
-
Network capability
This is a network model which supports both serial and Ethernet connections for enhanced connectivity.
|
| General |
| Printer Type |
Workgroup printer - dot-matrix - 9 pin - monochrome |
| Printer |
| Print Speed |
Up to 738 char/sec - ultra high speed draft - 12 cpi
Up to 615 char/sec - ultra high speed draft - 10 cpi
Up to 694 char/sec - high speed draft - 12 dpi
Up to 612 char/sec - high speed draft - 10 cpi
Up to 555 char/sec - draft - 12 cpi
Up to 463 char/sec - draft - 10 cpi
Up to 138 char/sec - letter - 12 cpi
Up to 115 char/sec - letter - 10 cpi |
| Connectivity Technology |
Wired |
| Interface |
Parallel, USB 2.0, LAN, serial |
| Max Resolution (B&W) |
240 x 144 dpi |
| Max Resolution Class (B&W) |
240 x 144 dpi |
| Language Simulation |
EPSON ESC/P, IBM PPDS |
| Barcodes |
Matrix 2 of 5, Industrial 2 of 5, Code 39, EAN/JAN-8, EAN/JAN-13, UPC-A, UPC-E, Codabar, Code 128, Interleaved 2 of 5, Postnet |
| RAM |
| RAM Installed (Max) |
128 KB |
| Media Handling |
| Media Type |
Envelopes, plain paper, continuous forms, cards |
| Max Media Size |
Roll (21.6 cm), continuous paper 101.6 mm - 406.4 mm (width), 420 x 364 mm |
| Media Sizes |
Roll (21.6 cm), 100 x 100 mm, continuous paper 101.6 mm - 406.4 mm (width), 148 x 148 mm, 420 x 364 mm |
| Envelope Sizes |
US No 10 (104.7 x 241.3 mm), US No 6 (92 x 165 mm) |
| Media Thickness Range |
0.065 mm - 0.46 mm |
| Max Sheets in Multi-Part Form |
6 |
| Networking |
| Networking |
Print server |
| Expansion / Connectivity |
| Connections |
1 x USB 2.0
1 x parallel
1 x LAN
1 x serial |
| Miscellaneous |
| Consumables Included |
1 x printhead - up to 400 million characters
1 x ribbon (black) - up to 12 million characters |
| MTBF |
25,000 hour(s) |
| Compliant Standards |
ICES-003 Class A, UL 60950-1, FCC Part 15 B Class A, CAN/CSA-C22.2 No. 60950-1 |
| Power |
| Power Device |
Power supply - internal |
| Power Consumption Operational |
54 Watt |
| Power Consumption Stand by |
10 Watt |
| Power Consumption Sleep |
0.8 Watt |
| Software / System Requirements |
| OS Required |
Microsoft Windows XP, Microsoft Windows Server 2003, Microsoft Windows 7, Microsoft Windows Vista, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2003 R2, Microsoft Windows Server 2008, Windows 8, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Windows 8.1, Windows 10, Microsoft Windows Server 2016 |
| Environmental Standards |
| ENERGY STAR |
Yes |
| Environmental Parameters |
| Min Operating Temperature |
5 °C |
| Max Operating Temperature |
35 °C |
| Humidity Range Operating |
10 - 80% (non-condensing) |
| Sound Emission (Operating) |
55 dBA |
| Dimensions & Weight |
| Width |
58.9 cm |
| Depth |
32 cm |
| Height |
17.65 cm |
| Weight |
9.4 kg |
