| Marketing Description |

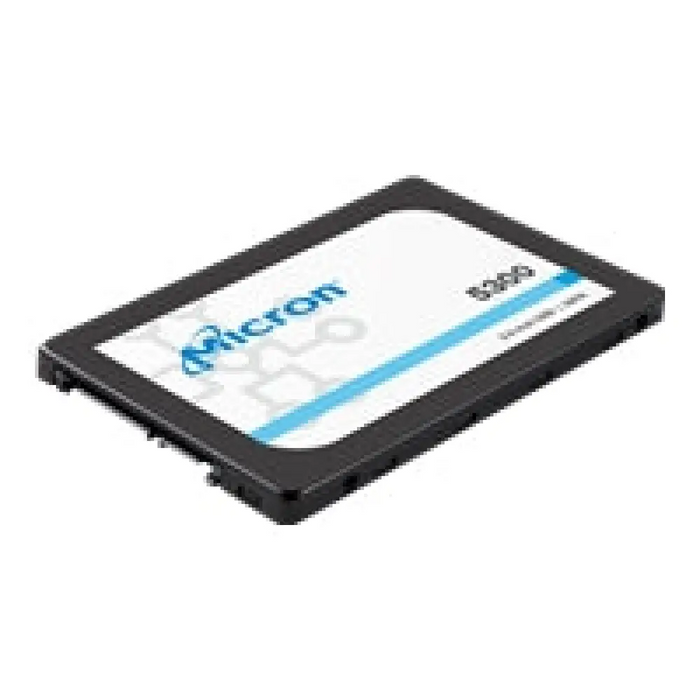

| The 5300 Entry SATA solid-state drives (SSDs) are new SSDs for ThinkSystem servers. The drives use Micron 96-layer 3D NAND flash memory technology with a SATA 6Gbps interface and provide an affordable solution for read-intensive applications such as boot, web servers, lower data rate operational databases and analytics. |
| Product Features |
-
Enhanced durability
Built to withstand the rigors of day-to-day operations, the Lenovo ThinkSystem 5300 Entry solid state drive has an impressive MTBF of 3,000,000 hours, ensuring reliability and longevity in any working environment.
-
High-capacity storage
With a generous 240 GB capacity, this solid state drive offers ample space for storing critical data, applications, and workloads, making it a suitable choice for businesses seeking efficient storage solutions.
-
Exceptional performance
Experience swift data access with the Lenovo ThinkSystem 5300 Entry, featuring up to 67,000 IOPS for 4KB random read and 40,000 IOPS for 4KB random write, alongside a data transfer rate of 600 MBps for high-speed operations.
-
Energy efficient
Optimized for efficiency, this solid state drive consumes a mere 2.5 W during read operations and 3 W during write operations, reducing energy costs and supporting eco-friendly computing practices.
-
Robust compliance
Adhering to a wide array of standards including S.M.A.R.T., RoHS, and more, the Lenovo ThinkSystem 5300 Entry ensures compatibility and safety, meeting global regulatory requirements and industry standards.
|
| General |
| Device Type |
Solid state drive - hot-swap |
| Capacity |
240 GB |
| NAND Flash Memory Type |
3D triple-level cell (TLC) |
| Form Factor |
2.5" |
| Interface |
SATA 6Gb/s |
| Features |
96-layer 3D NAND technology, S.M.A.R.T. |
| Width |
174 mm |
| Depth |
133 mm |
| Height |
63 mm |
| Weight |
434 g |
| Performance |
| Drive Writes Per Day (DWPD) |
1.5 |
| SSD Endurance |
657 TB |
| Drive Transfer Rate |
600 MBps (external) |
| Internal Data Rate |
540 MBps (read) / 310 MBps (write) |
| 4KB Random Read |
67000 IOPS |
| 4KB Random Write |
40000 IOPS |
| Average Latency |
175 μs |
| Reliability |
| MTBF |
3,000,000 hours |
| Non-Recoverable Errors |
1 per 10^17 |
| Expansion & Connectivity |
| Interfaces |
1 x SATA 6 Gb/s |
| Compatible Bay |
2.5" |
| Power |
| Power Consumption |
2.5 Watt (read)
3 Watt (write) |
| Miscellaneous |
| Compliant Standards |
EN 55032 Class B, RoHS, FCC CFR47 Part 15 B, UL 60950-1 Second Edition, BSMI, CNS 13438, RCM, WEEE, Directive 2002/96/EC, TUV, IEC 60950, EN 60950, VCCI 2015.04 Class B, CISPR 32 Class B, ICES-003:2016, RRL, KCC KN32 Class B, KCC KN35 Class B, Micron Green Standard, IC |
| Manufacturer Warranty |
| Service & Support |
Limited warranty - 1 year |
| Environmental Parameters |
| Min Operating Temperature |
0 °C |
| Max Operating Temperature |
70 °C |
| Humidity Range Operating |
5 - 95% (non-condensing) |
| Shock Tolerance (non-operating) |
1500 g @ 0.5 ms |
| Vibration Tolerance (non-operating) |
3.13 g @ 5-800 Hz |
| Compatibility Information |
| Designed For |
Lenovo ThinkAgile VX 1SE Certified Node 7Z58 (2.5")
Lenovo ThinkAgile VX1320 Appliance 7Z58 (2.5")
Lenovo ThinkAgile VX3330 Appliance 7Z62 (2.5")
Lenovo ThinkAgile VX3331 7Z62 (2.5")
Lenovo ThinkAgile VX3530-G Appliance 7Z63 (2.5")
Lenovo ThinkAgile VX3575-G Integrated System 7D43 (2.5")
Lenovo ThinkAgile VX5575 Integrated System 7D43 (2.5")
Lenovo ThinkAgile VX7530 Appliance 7Z63 (2.5")
Lenovo ThinkAgile VX7531 Certified Node 7Z63 (2.5")
Lenovo ThinkAgile VX7575 Integrated System 7D43 (2.5")
Lenovo ThinkAgile VX7576 Certified Node 7D43 (2.5")
Lenovo ThinkSystem SD530 7X21 (2.5")
Lenovo ThinkSystem SN550 7X16 (2.5")
Lenovo ThinkSystem SN850 7X15 (2.5")
Lenovo ThinkSystem SR250 7Y51, 7Y52 (2.5")
Lenovo ThinkSystem SR250 V2 7D7Q
Lenovo ThinkSystem SR530 7X07 (2.5"), 7X08
Lenovo ThinkSystem SR550 7X03 (2.5"), 7X04 (2.5")
Lenovo ThinkSystem SR570 7Y02 (2.5"), 7Y03 (2.5"), 7Y04 (2.5")
Lenovo ThinkSystem SR590 7X98 (2.5"), 7X99
Lenovo ThinkSystem SR630 7X01 (2.5"), 7X02
Lenovo ThinkSystem SR630 V2 7Z71
Lenovo ThinkSystem SR635 7Y98 (2.5"), 7Y99 (2.5")
Lenovo ThinkSystem SR645 7D2X
Lenovo ThinkSystem SR650 7X05 (2.5"), 7X06
Lenovo ThinkSystem SR650 V2 7D15 (2.5"), 7Z73
Lenovo ThinkSystem SR655 7Y00 (2.5"), 7Z01 (2.5")
Lenovo ThinkSystem SR665 7D2V, 7D2W (2.5")
Lenovo ThinkSystem SR670 7Y36 (2.5"), 7Y37 (2.5")
Lenovo ThinkSystem SR670 V2 7Z23 (2.5")
Lenovo ThinkSystem SR850 7X18 (2.5"), 7X19 (2.5")
Lenovo ThinkSystem SR850 V2 7D32 (2.5")
Lenovo ThinkSystem SR860 7X69 (2.5"), 7X70 (2.5")
Lenovo ThinkSystem SR860 V2 7Z60 (2.5")
Lenovo ThinkSystem SR950 7X11 (2.5"), 7X12 (2.5"), 7X13 (2.5")
Lenovo ThinkSystem ST250 7Y45 (2.5"), 7Y46 (2.5")
Lenovo ThinkSystem ST250 V2 7D8F
Lenovo ThinkSystem ST550 7X09 (2.5"), 7X10
Lenovo ThinkSystem ST650 V2 7Z74, 7Z75 (2.5") |
