| Marketing Description |

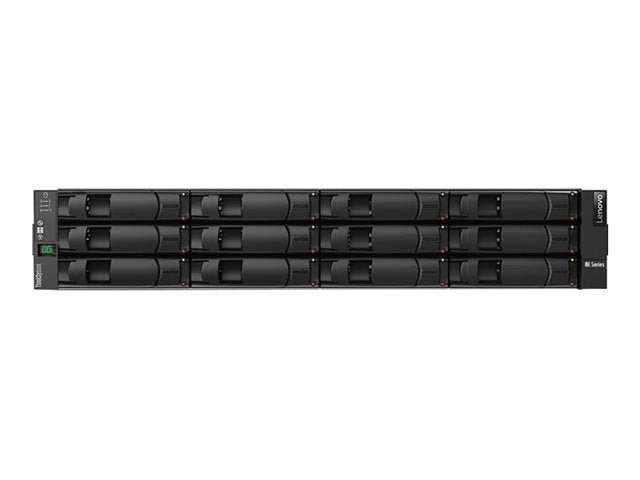

| Lenovo ThinkSystem DE2000H is a low-cost, hybrid storage system that is designed to provide performance, simplicity, capacity, security, and high availability for small to large businesses. It delivers enterprise-class storage management capabilities with a wide choice of host connectivity options, flexible drive configurations, and enhanced data management features. The ThinkSystem DE2000H is a perfect fit for small offices and remote and branch offices of large enterprises that run a wide range of workloads, including big data and analytics, video surveillance, technical computing, backup and recovery, and other storage I/O-intensive applications. |
| Product Features |
-
Efficient power management
Equipped with an 80 PLUS Platinum certified internal power supply, this device ensures efficient power usage and management, providing 913 W of power with redundancy capabilities. The hot-plug feature allows for uninterrupted power supply replacement, ensuring your system remains operational and reliable.
-
Advanced RAID support
The Lenovo ThinkSystem DE2000H Hybrid offers comprehensive RAID support, including RAID 0, 1, 10, 3, 5, and 6. This versatility allows for a wide range of data protection and performance options, catering to various business needs and ensuring data integrity.
-
Robust environmental adaptability
Designed to operate within a broad range of temperatures from 10°C to 40°C and humidity levels from 8% to 90% (non-condensing), this storage solution is built to withstand diverse environmental conditions, ensuring reliability and durability in various operational scenarios.
-
High-capacity storage expansion
With 12 hot-swap 3.5" LFF expansion bays, the system provides ample space for storage expansion, allowing for seamless scalability. This feature supports Serial Attached SCSI 3 interface, offering high-speed data access and transfer rates, ideal for growing business needs.
-
Comprehensive compliance standards
Meeting a wide array of international compliance standards, including AS/NZS CISPR22 Class A, FCC Part 15 A, and EN 55032 Class A, among others, this device assures global market compatibility and adherence to rigorous safety and operational benchmarks.
|
| General |
| Device Type |
Hard drive array |
| Enclosure Type |
Rack-mountable - 2U |
| Localisation |
EMEA |
| Chassis |
| Supported Devices / Modules Qty |
12 |
| Supported Drives |
SAS-3 |
| Storage |
| HDD Array External Interface |
16Gb Fibre Channel |
| Host Channels |
2 |
| Storage Controller |
| Type |
RAID |
| Interface Type |
SAS 12Gb/s |
| Data Transfer Rate |
1.2 GBps |
| Cache / Buffer Size (Max) |
16 GB |
| RAID Level |
RAID 0, RAID 1, RAID 3, RAID 5, RAID 6, RAID 10 |
| Hard Drive |
| Type |
No HDD |
| Expansion / Connectivity |
| Expansion Bays |
12 (total) / 12 (free) x hot-swap - 3.5" LFF |
| Interfaces |
2 x SAS 12Gb/s - 36 pin 4x Mini SAS HD (SFF-8644)
2 x 16Gb Fibre Channel - SFP+
1 x Ethernet 1000 (management) - RJ-45
1 x serial (management) - 5 pin Micro-USB Type A
1 x serial (management) - RJ-45 |
| Miscellaneous |
| Features |
Application snapshots, Dynamic Disk Pool (DDP) Technology |
| Cables Included |
1 x micro-USB to USB cable - 2 m
2 x power cable (C13-C14) - 1.5 m |
| Compliant Standards |
FCC Part 15 A, UL 60950-1, ICES-003 Class A, CAN/CSA-C22.2 No. 60950-1, NOM, EN 55032 Class A, EN55024, EN 60950-1, IEC 60950-1, RoHS 2011/65/EC, EAC, GB 4943.1, CCC, GB 17625.1, GB 9254 Class A, CELP, CECP, VCCI Class A, BSMI CNS 13438 Class A, CNS 14336-1, KN32 Class A, KN35 Class A, AS/NZS CISPR22 Class A |
| Power |
| Power Device |
2 x internal power supply - hot-plug |
| Max Supported Qty |
2 |
| Power Redundancy |
Yes |
| Voltage Required |
AC 120/230 V - 50/60 Hz |
| Power Provided |
913 Watt |
| 80 PLUS Certification |
80 PLUS Platinum |
| Dimensions & Weight |
| Width |
44.7 cm |
| Depth |
48.3 cm |
| Height |
8.5 cm |
| Weight |
27.6 kg |
| Manufacturer Warranty |
| Service & Support |
Limited warranty - 3 years - on-site |
| Environmental Parameters |
| Min Operating Temperature |
10 °C |
| Max Operating Temperature |
40 °C |
| Humidity Range Operating |
8 - 90% (non-condensing) |
