| Marketing Description |

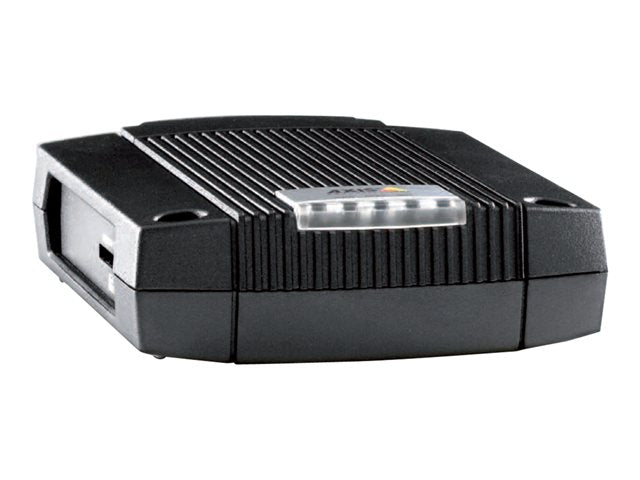

AXIS Q7401 Video Encoder is a high performance, single channel solution that integrates an analog camera into an IP-based video surveillance system. With outstanding video processing capabilities, AXIS Q7401 delivers superb video quality and significant savings in bandwidth and storage.
AXIS Q7401 offers the highly efficient H.264 video compression, which drastically reduces bandwidth and storage requirements without compromising image quality. Motion JPEG is also supported for increased flexibility. AXIS Q7401 can deliver multiple, individually configurable video streams simultaneously at full frame rate in all resolutions up to D1 (720 x 480 in NTSC, 720 x 576 in PAL). This means that several video streams can be configured with different compression formats, resolutions and frame rates for different needs. |
| Product Features |
-
High performance, single channel solution
AXIS Q7401 Video Encoder is a high performance, single channel solution that integrates an analog camera into an IP-based video surveillance system. With outstanding video processing capabilities, AXIS Q7401 delivers superb video quality and significant savings in bandwidth and storage.
-
Reduced bandwidth and storage needs
AXIS Q7401 offers the highly efficient H.264 video compression, which drastically reduces bandwidth and storage requirements without compromising image quality. Motion JPEG is also supported for increased flexibility.
-
Full frame rate in all resolutions
AXIS Q7401 can deliver multiple, individually configurable video streams simultaneously at full frame rate in all resolutions up to D1 (720 x 480 in NTSC, 720 x 576 in PAL). This means that several video streams can be configured with different compression formats, resolutions and frame rates for different needs.
-
Wide range of analog PTZ cameras supported
All Axis video encoders connect to analog pan/tilt/zoom (PTZ) cameras to allow for easy operation of these PTZ cameras across the IP network. Axis' open policy ensures simple and fast integration with most analog PTZ cameras on the market by including software drivers for more than 25 different analog cameras.
-
Easy installation
Support for Power over Ethernet (IEEE802.3af) enables the unit, as well as the analog camera that is connected to it, to receive power through the same cable as for data transmission. This makes for easy installation since no power outlet is needed.
|
| General |
| Device Type |
Video server |
| Video Channels |
1 |
| Audio Channels |
1 |
| TV System |
NTSC/PAL |
| Image Resolution |
720x576 (PAL), 176x112 (NTSC) |
| Compression Format |
MJPEG, ADPCM, G.711, G.726, H.264, AAC |
| Package Content |
Manual, external power adapter, software, video server, mounting kit, connector kit |
| Software Included (Y) |
Drivers & Utilities |
| Compliant Standards |
C-Tick, VCCI Class B ITE, EN 61000-3-2, EN 61000-3-3, EN55024, CISPR 22, EN55022 Class B, ICES-003 Class B, EN 61000-6-1, FCC Part 15 B, EN 61000-6-2, EN 60950-1 |
| Warranty |
3 years |
| Video Server |
| Frame Rate |
25 fps (PAL), 30 fps (NTSC) |
| CPU |
ARTPEC-3 |
| RAM |
128 MB |
| Flash Memory |
128 MB |
| Features |
Motion detection, PTZ support, PAL/NTSC auto-sensing input, SD memory card slot |
| Networking |
| DDNS Support |
Yes |
| Web Server |
Yes |
| Network Interfaces |
Ethernet 10Base-T/100Base-TX |
| Supported Protocols |
DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, HTTP over SSL, SNMP 1, SNMP 2c, SNMP 3, SOCKS, RTSP, RTP, Bonjour, RTCP, IGMP |
| Features |
Power over Ethernet (PoE), E-mail alert, IP address filtering |
| Connections |
| Video Input Ports |
BNC x 1 |
| Audio Input Ports |
Mini-phone 3.5 mm x 1 |
| Audio Output Ports |
Mini-phone 3.5 mm x 1 |
| Alarm Ports |
Alarm input x 4, alarm output x 4 |
| Camera Control Interface (PTZ) |
RS-422/485 |
| Network Port |
10/100Base-T |
| Dimensions & Weight |
| Width |
9.9 cm |
| Depth |
11.8 cm |
| Height |
3.2 cm |
| Weight |
335 g |
| Environmental Parameters |
| Min Operating Temperature |
0 °C |
| Max Operating Temperature |
50 °C |
| Humidity Range Operating |
20 - 80% |
