| Marketing Description |

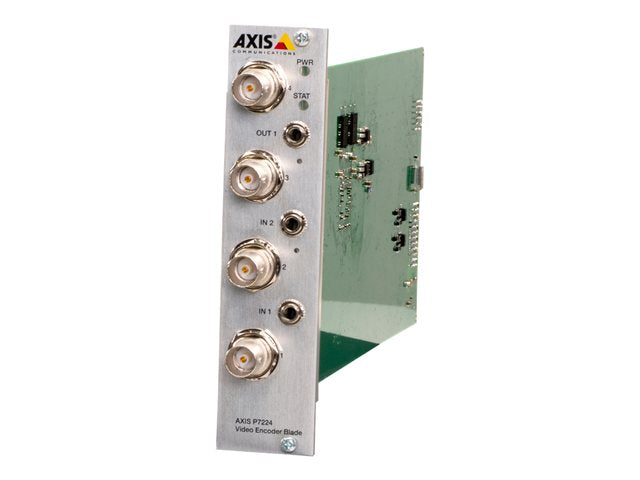

AXIS P7224 Video Encoder Blade is a cost-effective four-channel video encoder blade with great video performance and excellent audio quality. It can simplify migration to network video without upgrading existing camera systems. AXIS P7224 supports all types of analog cameras including PTZ (pan/tilt/zoom) and PTZ domes. The video encoder features both RS-422 and RS-485 for controlling analog PTZ cameras. Configurable inputs/outputs can be connected to external relays and sensors for activating lights, locking/unlocking doors etc.
AXIS P7224 is perfect for large analog video installations, especially where an IP network infrastructure is already in place. It is powered from the rack, which simplifies installation. AXIS P7224 can deliver two simultaneous video streams, one in H.264 and another in Motion JPEG, at full frame rate in all resolutions up to D1 (720 x 480 in NTSC, 720 x 576 in PAL). The H.264 video compression format drastically reduces bandwidth and storage requirements without compromising image quality. Motion JPEG is supported for increased flexibility. |
| Product Features |
-
High performance, 4-channel solution with excellent audio quality
AXIS P7224 Video Encoder Blade is a cost-effective four-channel video encoder blade with great video performance and excellent audio quality. It can simplify migration to network video without upgrading existing camera systems.
-
Powerful and full-featured
AXIS P7224 supports all types of analog cameras including PTZ (pan/tilt/zoom) and PTZ domes. The video encoder features both RS-422 and RS-485 for controlling analog PTZ cameras. Configurable inputs/outputs can be connected to external relays and sensors for activating lights, locking/unlocking doors etc.
-
The easy way to a smarter CCTV system
AXIS P7224 is perfect for large analog video installations, especially where an IP network infrastructure is already in place. It is powered from the rack, which simplifies installation.
-
Reduced bandwidth and storage
AXIS P7224 can deliver two simultaneous video streams, one in H.264 and another in Motion JPEG, at full frame rate in all resolutions up to D1 (720 x 480 in NTSC, 720 x 576 in PAL). The H.264 video compression format drastically reduces bandwidth and storage requirements without compromising image quality. Motion JPEG is supported for increased flexibility.
|
| General |
| Device Type |
Video server |
| Video Channels |
4 |
| Audio Channels |
1 |
| TV System |
NTSC/PAL |
| Image Resolution |
176x120 (NTSC), 720x480 (NTSC), 720x576 (PAL), 176x144 (PAL) |
| Compression Format |
MJPEG, H.264 |
| Package Content |
Manual, software, video server |
| Software Included (Y) |
Drivers & Utilities |
| Country Kits |
Australia, United Kingdom, United States, Europe |
| Compliant Standards |
C-Tick, VCCI Class B ITE, EN 61000-3-2, EN 61000-3-3, EN55024, CISPR 22, EN55022 Class B, ICES-003 Class B, EN 61000-6-1, FCC Part 15 B, EN 61000-6-2, UL 60950-1, IEC 60950-1, EN 60950-1 |
| Warranty |
3 years |
| Video Server |
| Frame Rate |
25 fps (PAL), 30 fps (NTSC) |
| CPU |
ARTPEC-4 |
| RAM |
512 GB |
| Flash Memory |
128 MB |
| Features |
Video motion detector, Pan/Tilt/Zoom support |
| Networking |
| DDNS Support |
Yes |
| Web Server |
Yes |
| Network Interfaces |
Ethernet 10Base-T/100Base-TX |
| Supported Protocols |
DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP 1, SNMP 2c, SNMP 3, SOCKS, RTSP, RTP, HTTPS, UPnP, IPv4, IPv6, Bonjour, RTCP, IGMP, QOS |
| Features |
E-mail alert |
| Connections |
| Video Input Ports |
BNC x 4 |
| Audio Input Ports |
Mini-phone mono 3.5 mm x 2 |
| Audio Output Ports |
Mini-phone mono 3.5 mm x 1 |
| Camera Control Interface (PTZ) |
RS-422/485 |
| Network Port |
10/100Base-T |
| Dimensions & Weight |
| Width |
12.9 cm |
| Depth |
25.5 cm |
| Height |
3 cm |
| Weight |
210 g |
| Environmental Parameters |
| Min Operating Temperature |
0 °C |
| Max Operating Temperature |
45 °C |
| Humidity Range Operating |
20 - 80% (non-condensing) |
