| Marketing Description |

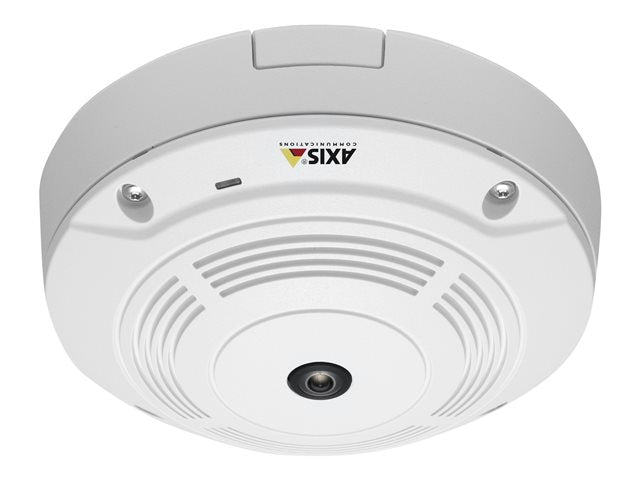

The AXIS M3007-P network camera is an ultra-discreet, 5-megapixel fixed mini dome that provides detailed, high quality panoramic views of areas as large as 650 m2 (7,000 sq. ft. ). The camera is ideal for retail stores, hotels, schools and offices.
AXIS M3007-P offers different views: 360° overview and dewarped views such as panorama, double panorama and quad views. The quad view is suitable, for instance, when the camera is positioned at an intersection of corridors. The camera also provides four individually cropped out and dewarped view areas where users can digitally pan, tilt and zoom in on areas of interest. Multiple video streams in H.264 and Motion JPEG can be sent simultaneously.
AXIS M3007-P can be mounted on a wall or ceiling. The camera comes focused at delivery, which shortens the installation time. It has a 2 m (6.6 ft. ) network cable attached and supports Power over Ethernet (IEEE 802.3af), which eliminates the need for power cables and reduces installation costs. |
| Product Features |
-
Panoramic surveillance
The AXIS M3007-P network camera is an ultra-discreet, 5-megapixel fixed mini dome that provides detailed, high quality panoramic views of areas as large as 650 m2 (7,000 sq. ft. ). The camera is ideal for retail stores, hotels, schools and offices.
-
Different views
AXIS M3007-P offers different views: 360° overview and dewarped views such as panorama, double panorama and quad views. The quad view is suitable, for instance, when the camera is positioned at an intersection of corridors. The camera also provides four individually cropped out and dewarped view areas where users can digitally pan, tilt and zoom in on areas of interest. Multiple video streams in H.264 and Motion JPEG can be sent simultaneously.
-
Easy and flexible installation
AXIS M3007-P can be mounted on a wall or ceiling. The camera comes focused at delivery, which shortens the installation time. It has a 2 m (6.6 ft. ) network cable attached and supports Power over Ethernet (IEEE 802.3af), which eliminates the need for power cables and reduces installation costs.
-
Intelligent video and video management
AXIS M3007-P offers video motion detection and active tampering alarm. The camera also supports the installation of intelligent video applications, such as people counting and heat mapping, through the AXIS Camera Application Platform. In addition, the camera's built-in microSDHC card slot enables several days of recording to be stored locally on a memory card. When local storage is used together with the free AXIS Camera Companion, users have an easy way to remotely view and manage video from up to 16 cameras per site.
|
| General |
| Device Type |
Network surveillance camera |
| Form Factor |
Dome |
| Connectivity Technology |
Wired |
| Width |
13.1 cm |
| Depth |
13.1 cm |
| Height |
5.3 cm |
| Weight |
570 g |
| Camera |
| Type |
Colour - fixed |
| Digital Video Format |
MPEG-4, MJPEG, H.264 |
| Max Digital Video Resolution |
2592 x 1944 |
| Exposure Range |
2 sec - 1/24000 sec |
| Minimum Illumination |
0.6 lux F2.8 |
| Frame Rate (max) |
12 frames per second |
| RAM |
512 MB |
| Flash Memory |
128 MB |
| Features |
Exposure compensation, Backlight Compensation (BLC), digital image rotation, white balance, progressive scanning, image mirror, Wide Dynamic Range (WDR), Privacy Mask Function, text stamp, smoke detector housing, digital PTZ function, ONVIF V2.2 (Profile S) support, password protection, 360° monitoring |
| Image Sensor |
| Type |
5 MP CMOS 1/3.2" |
| Lens Construction |
| Type |
M12 mount - fixed focal |
| Focal Length |
1.3 mm |
| Lens Iris |
F/2.8 fixed iris |
| Horizontal Field of View (degree) |
187 |
| Interfaces |
| Network Interface |
Ethernet 10Base-T/100Base-TX |
| Network Protocols |
DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP 1, SNMP 2c, SNMP 3, SOCKS, RTSP, RTP, HTTPS, UPnP, TLS, IPv4, IPv6, Bonjour, RTCP, SMB, IGMP, SSL, QOS, CIFS |
| Expansion / Connectivity |
| Ports |
LAN/power - RJ-45 |
| Interfaces Details |
1 x network / power - Ethernet 10Base-T/100Base-TX - RJ-45 |
| Supported Memory Cards |
microSD Card, microSDHC Card, microSDXC Card |
| Miscellaneous |
| Cables Included |
1 x network cable - 2 m |
| Compliant Standards |
C-Tick, EN55024, EN55022 Class B, ICES-003 Class B, EN 61000-6-1, EN 61000-6-2, UL 60950-1, IEC 60950-1, EN 60950-1, VCCI Class B, KN24, KCC KN22 Class B, AS/NZS CISPR 22 Class B |
| Colour |
White |
| Power |
| Power Requirements |
PoE Class 2 |
| Power Device |
4.6 Watt |
| Software / System Requirements |
| Software Included |
Drivers & Utilities |
| Manufacturer Warranty |
| Service & Support |
Limited warranty - 1 year |
| Environmental Parameters |
| Min Operating Temperature |
0 °C |
| Max Operating Temperature |
45 °C |
| Relative Humidity (operating) |
15 - 85% (non-condensing) |
