| Marketing Description |

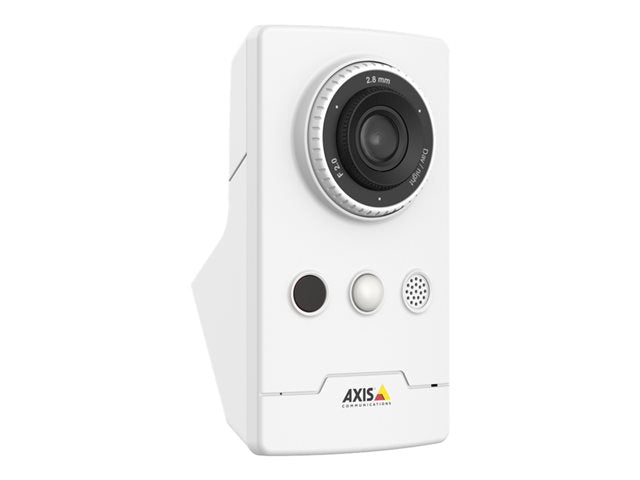

| If you’re a business owner looking for a discreet, camera that’s attractively priced, simple to install and cost-effective to run, AXIS M1065-L Network Camera is just what you need. You get excellent Axis image quality – both during the day and at night. And a wealth of useful features. AXIS M1065-L is the perfect plug & play video surveillance camera for smaller stores and offices. |
| Product Features |
-
Just plug it in and press record
AXIS M1065-L is made for easy and flexible installation. It comes with a combined corner and wall bracket that lets anyone install it perfectly: Drop the camera in the bracket and it's perfectly positioned to provide 110° coverage of the room. And AXIS M1065-L can be powered either over Ethernet or by power supply. The choice is yours.
-
A camera that sees in the dark
With AXIS M1065-L, you'll always be able to see exactly what's going on at your premises - regardless of time of day or lighting. With HDTV 1080p, it delivers excellent Axis image quality. Wide Dynamic Range (WDR) technology ensures you can see details even when they are recorded in dark or light scenes. And IR illumination means you can record useful videos even in the dark.
-
Warn intruders off your premises
With AXIS M1065-L, you can detect intruders and warn them off your premises before it's too late. AXIS M1065-L is equipped with a microphone and a speaker, so you can record a motion-triggered message that will send thieves and vandals packing. And the camera can alert you to the situation and deliver footage to your PC, tablet or smart phone, so you can alert the police fast.
-
A camera that saves you money
In addition to an attractive price and easy installation, the discreet little camera saves you money in other ways too. For example, you can store footage on the camera on a memory card, which saves bandwidth and eliminates the need for a server. And a motion sensor means that AXIS M1065-L only records when it detects movement.
|
| General |
| Device Type |
Network surveillance camera |
| Audio Support |
Built-in speaker |
| Connectivity Technology |
Wired |
| Width |
6 cm |
| Depth |
3.7 cm |
| Height |
10.6 cm |
| Weight |
134 g |
| Camera |
| Type |
Colour - Day&Night - fixed |
| Digital Video Format |
MPEG-4, MJPEG, H.264 |
| Max Digital Video Resolution |
1920 x 1080 |
| Video Modes |
1080p |
| Exposure Range |
1/5 sec - 1/32500 sec |
| Minimum Illumination |
0.25 lux - colour - F2.0 - 50 IRE
0.05 lux - B&W - F2.0 - 50 IRE
0 lux - IR |
| Infrared Distance |
6 m |
| Digital Video Capture Resolution |
320 x 240, 1920 x 1080 |
| Frame Rate (max) |
30 frames per second |
| RAM |
512 MB |
| Flash Memory |
256 MB |
| Features |
Sharpness control, white balance, auto exposure control, colour control, brightness control, contrast control, Wide Dynamic Range (WDR), infrared cut filter, digital PTZ function, password protection, IR Corrected lens, Zipstream technology |
| Image Sensor |
| Type |
CMOS 1/3" |
| Lens Construction |
| Type |
M12 mount - fixed focal |
| Focal Length |
2.8 mm |
| Lens Iris |
F/2.0 fixed iris |
| Horizontal Field of View (degree) |
110 |
| Vertical Field of View (degree) |
61 |
| Interfaces |
| Network Interface |
Ethernet 10Base-T/100Base-TX |
| Network Protocols |
DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP 1, SNMP 2c, SNMP 3, SOCKS, RTSP, RTP, HTTPS, UPnP, TLS, IPv4, IPv6, Bonjour, RTCP, SMB, IGMP, SSH, SSL, QOS, CIFS, SFTP |
| Expansion / Connectivity |
| Ports |
LAN - RJ-45
USB (power only) - Micro-USB Type B |
| Supported Memory Cards |
microSD Card, microSDHC Card, microSDXC Card |
| Miscellaneous |
| Included Accessories |
Stand, mounting kit |
| Compliant Standards |
EN 61000-3-2, EN 61000-3-3, EN55024, ICES-003 Class B, EN 61000-6-1, EN 61000-6-2, VCCI Class B, KN24, EN 62471:2008, IEC 62471, FCC CFR47 Part 15 B Class B, KN35, EN 55032 Class B, AS/NZS CISPR 32 Class B, IEC/EN/UL 60950-1 |
| Colour |
White |
| Power |
| Power Requirements |
PoE Plus |
| Power Device |
4.7 Watt |
| Manufacturer Warranty |
| Service & Support |
Limited warranty - 3 years |
| Environmental Parameters |
| Min Operating Temperature |
0 °C |
| Max Operating Temperature |
40 °C |
| Relative Humidity (operating) |
10 - 85% (non-condensing) |
