| Marketing Description |

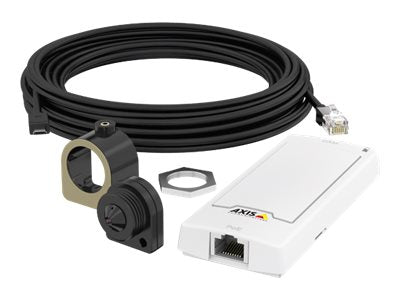

| AXIS P1265 Network Camera is a cost-effective complete modular pinhole camera with HDTV 1080p resolution, ideal for discreet indoor eye-level surveillance. It can be installed in tight places or flush-mounted in a wall, ceiling, or metal panel with only a small pinhole lens visible, suitable in, for example, ATMs or vending machines. Equipped with WDR - Forensic Capture, enables the camera to handle scenes with strong variations in light. AXIS P1265 comes with a mounting bracket and an 8 meter (26 feet) detachable cable. |
| Product Features |
- HDTV 1080p resolution
- WDR - Forensic Capture
- Pinhole lens with 91° horizontal field of view
- Axis Zipstream
- Power over Ethernet
|
| General |
| Device Type |
Network surveillance camera |
| Camera Mount Type |
Flush mount |
| Connectivity Technology |
Wired |
| Width |
1.65 cm |
| Depth |
4.6 cm |
| Height |
10.9 cm |
| Weight |
72 g |
| Camera |
| Type |
Colour - fixed |
| Digital Video Format |
MPEG-4, MJPEG, H.264 |
| Max Digital Video Resolution |
1920 x 1080 |
| Motion Detection |
Yes |
| Video Modes |
1080p |
| Exposure Range |
1/32500 sec - 2 sec |
| Minimum Illumination |
0.27 lux - colour |
| Digital Video Capture Resolution |
1920 x 1080 |
| Frame Rate (max) |
30 frames per second |
| RAM |
512 MB |
| Flash Memory |
256 MB |
| Features |
Sharpness control, digital image rotation, white balance, colour control, progressive scanning, brightness control, Power over Ethernet, contrast control, e-mail alerts, image mirror, AXIS Video Hosting System (AVHS), ONVIF support, Privacy Mask Function, multi-streaming, Video Motion Detection Technology, active tampering alarm, password protection, Variable Bitrate (VBR), Zipstream technology |
| Image Sensor |
| Type |
CMOS 1/2.9" |
| Lens Construction |
| Type |
Fixed focal |
| Focal Length |
3.7 mm |
| Lens Iris |
F/2.5 fixed iris |
| Horizontal Field of View (degree) |
91 |
| Vertical Field of View (degree) |
45 |
| Interfaces |
| Network Interface |
Ethernet 10Base-T/100Base-TX |
| Network Protocols |
DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP 1, SNMP 2c, SNMP 3, SOCKS, RTSP, RTP, HTTPS, UPnP, TLS, IPv4, IPv6, Bonjour, RTCP, SMB, IGMP, SSH, SSL, QOS, CIFS, SFTP |
| Expansion / Connectivity |
| Ports |
Sensor unit - RJ-12
LAN - RJ-45 |
| Supported Memory Cards |
microSD Card, microSDHC Card, microSDXC Card |
| Miscellaneous |
| Included Accessories |
Mounting bracket, AVHS Authentication key, locking nut, AXIS F82A06 Angled Pinhole Mount |
| Cables Included |
1 x sensor cable - 8 m |
| Compliant Standards |
EN55024, ICES-003 Class B, EN 61000-6-1, EN 61000-6-2, IEC 60068-2-27, IEC 60068-2-6, FCC Part 15 B Class A, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-14, IEC 60068-2-78, VCCI Class B, EN 50581, KN35, EN 55032 Class B, KCC KN32 Class B, IEEE 802.3af, IEEE 802.3at, IEC 60529 IP3X, IEC/EN/UL 62368-1, AS/NZS CISPR 32 |
| Power |
| Power Requirements |
PoE Class 2 |
| Power Device |
4 Watt |
| Software / System Requirements |
| Software Included |
Windows decoder 1-user licence |
| Manufacturer Warranty |
| Service & Support |
Limited warranty - 3 years |
| Environmental Parameters |
| Min Operating Temperature |
-20 °C |
| Max Operating Temperature |
50 °C |
| Relative Humidity (operating) |
10 - 85% (non-condensing) |
