| Marketing Description |

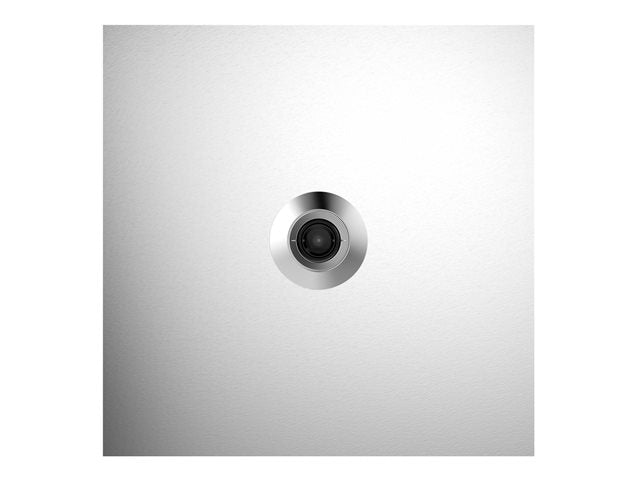

| AXIS F1005-E Sensor Unit is ideal for use in highly discreet indoor, outdoor and mobile surveillance applications. AXIS F1005-E can be discreetly installed in tight places, flush-mounted in a wall or ceiling, or incorporated in a lightbar on top of an emergency vehicle. The rugged sensor unit withstands dust, rain, snow, vibrations, shock and temperature fluctuations. AXIS F1005-E comprises an image sensor and a fixed lens that provides a wide 113° horizontal field of view in HDTV 1080p. It can be placed indoors, inside a vehicle or in an outdoor enclosure. |
| Product Features |
- Flexible, rugged design for indoor, outdoor and mobile use
- Fixed lens with HDTV 1080p resolution
- Wide 113° horizontal field of view
|
| General |
| Device Type |
Network surveillance camera |
| Audio Support |
Yes: two-way audio capability |
| Connectivity Technology |
Wired |
| Width |
3 cm |
| Depth |
6.9 cm |
| Height |
3 cm |
| Weight |
116 g |
| Camera |
| Type |
Colour - fixed - outdoor - dustproof / weatherproof |
| Digital Video Format |
MPEG-4, MJPEG, H.264 |
| Max Digital Video Resolution |
1920 x 1200 |
| Motion Detection |
Yes |
| Exposure Range |
1/143000 sec - 2 sec |
| Minimum Illumination |
0.3 lux - colour - F2.0 |
| Frame Rate (max) |
60 frames per second |
| Features |
Sharpness control, digital image rotation, white balance, colour control, progressive scanning, brightness control, contrast control, image mirror, Wide Dynamic Range (WDR), AXIS Video Hosting System (AVHS), Privacy Mask Function, text stamp, Video Motion Detection Technology, active tampering alarm, ONVIF V2.2 (Profile S) support, password protection, Audio Detection |
| Image Sensor |
| Type |
CMOS 1/2.8" |
| Lens Construction |
| Type |
Fixed focal |
| Focal Length |
2.8 mm |
| Lens Iris |
F/2.0 fixed iris |
| Horizontal Field of View (degree) |
113 |
| Interfaces |
| Network Interface |
Ethernet 10Base-T/100Base-TX |
| Network Protocols |
DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP 1, SNMP 2c, SNMP 3, SOCKS, RTSP, RTP, HTTPS, UPnP, TLS, IPv4, IPv6, Bonjour, RTCP, SMB, IGMP, SSH, SSL, QOS, CIFS |
| Miscellaneous |
| Included Accessories |
Mounting bracket |
| Cables Included |
1 x network cable - external - 3 m |
| Compliant Standards |
C-Tick, CISPR 22 Class B, EN 61000-3-2, EN 61000-3-3, EN55024, IEC 60529 IP66, EN55022 Class B, ICES-003 Class B, EN 61000-6-1, FCC Part 15 B, EN 61000-6-2, UL 60950-1, IEC 60950-1, EN 60950-1, IEC 60068-2-30, EN50155, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-14, IEC 60068-2-78, AS/NZS, IEC 60068-2-60, EN 50121-4, VCCI Class B, EN 50581, KN24, IEC 60950-22, EN 60950-22, UL 60950-22, KCC KN22 Class B, IEC 60721-3-5 |
| Manufacturer Warranty |
| Service & Support |
Limited warranty - 3 years |
| Environmental Parameters |
| Min Operating Temperature |
-30 °C |
| Max Operating Temperature |
55 °C |
| Relative Humidity (operating) |
10 - 100% |
