| Marketing Description |

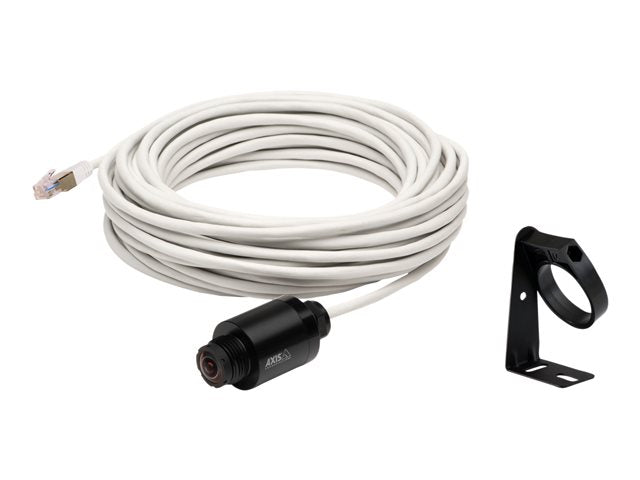

AXIS F1035-E provides wide area coverage with a fisheye view. It is ideal for highly discreet overview surveillance in indoor, outdoor and mobile surveillance applications; for example, at entrances, long corridors, around an ATM, in emergency vehicles, buses and trams.
The small sensor unit can be installed in tight places, flush-mounted in a wall or ceiling, or incorporated in a lightbar on top of an emergency vehicle. The rugged, IP66-rated AXIS F1035-E withstands dust, rain, snow, vibrations, shock and temperature fluctuations. |
| Product Features |
- Flexible, rugged design for indoor, outdoor and mobile use
- Fisheye lens with HDTV resolution
- Ultra-wide horizontal field of view
|
| General |
| Device Type |
Network surveillance camera |
| Audio Support |
Yes: two-way audio capability |
| Connectivity Technology |
Wired |
| Width |
3 cm |
| Depth |
3 cm |
| Height |
6.2 cm |
| Weight |
96 g |
| Camera |
| Type |
Colour - fixed - outdoor - dustproof / weatherproof |
| Digital Video Format |
MPEG-4, MJPEG, H.264 |
| Max Digital Video Resolution |
1920 x 1200 |
| Minimum Illumination |
0.3 lux - colour - F2.8 |
| Frame Rate (max) |
60 frames per second |
| Image Sensor |
| Type |
CMOS 1/2.8" |
| Lens Construction |
| Type |
Fixed focal |
| Focal Length |
1.3 mm |
| Lens Iris |
F/2.8 fixed iris |
| Horizontal Field of View (degree) |
194 |
| Interfaces |
| Network Interface |
Ethernet 10Base-T/100Base-TX |
| Network Protocols |
DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP 1, SNMP 2c, SNMP 3, SOCKS, RTSP, RTP, HTTPS, UPnP, TLS, IPv4, IPv6, Bonjour, RTCP, SMB, IGMP, SSH, SSL, QOS, CIFS |
| Miscellaneous |
| Included Accessories |
Mounting bracket |
| Cables Included |
1 x network cable - external - 12 m |
| Compliant Standards |
C-Tick, CISPR 22 Class B, EN 61000-3-2, EN 61000-3-3, EN55024, IEC 60529 IP66, EN55022 Class B, ICES-003 Class B, EN 61000-6-1, FCC Part 15 B, EN 61000-6-2, UL 60950-1, IEC 60950-1, EN 60950-1, IEC 60068-2-30, IP66, EN50155, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-14, IEC 60068-2-78, AS/NZS, IEC 60068-2-60, EN 50121-4, VCCI Class B, EN 50581, KN24, IEC 60950-22, EN 60950-22, UL 60950-22, KCC KN22 Class B, IEC 60721-3-5 |
| Manufacturer Warranty |
| Service & Support |
Limited warranty - 3 years |
| Environmental Parameters |
| Min Operating Temperature |
-30 °C |
| Max Operating Temperature |
55 °C |
| Relative Humidity (operating) |
0 - 100% |
