| Marketing Description |
| AXIS M1134 is a compact network camera that delivers great image quality in HDTV 720p resolution. Designed as a visible deterrent, it helps discourage trespassing, antisocial or criminal behavior. It offers flexible, low-cost installation making it ideal for various industrial or commercial surveillance situations, such as retail stores, indoor markets and delivery areas. |
| Product Features |
-
Flexible design
This Axis M-line camera includes a built-in microphone and audio recording, letting you hear and register sound in a fixed area. And, with a video streaming indicator, it's easy to check that the video is up and running. Featuring Axis Zipstream with support for both H.264 and H.265 video compression, it significantly reduces bandwidth and storage requirements without compromising image quality. Thanks to support for PoE and redundant DC power, you get flexible installation and your data is safeguarded in the event of a power outage.
-
Sharp images even in low light
AXIS M1134 offers HDTV 720p resolution at up to 30 fps and delivers great video quality even in low light conditions. It features Axis Lightfinder for images in true colors even in low light and with Axis Forensic WDR you get clarity even when there are both dark and light areas in the scene. Furthermore, it offers a CS-mount with interchangeable lenses, so you can easily change lens and ensure you capture the exact images you need.
-
Designed for deterrence
AXIS M1134 is designed to act as a deterrent to let potential offenders know you're watching. This compact network camera provides a clearly visible, fixed angle of view, making it easy to see exactly where the camera's pointing and allowing you to record both audio and video in a precisely defined area.
|
| General |
| Device Type |
Network surveillance camera |
| Audio Support |
Yes: built-in microphone |
| Audio Formats |
G.726, ADPCM, AAC-LC, LPCM, G.711, OPUS |
| Connectivity Technology |
Wired |
| Width |
4.8 cm |
| Depth |
7 cm |
| Height |
14.8 cm |
| Weight |
205 g |
| Localisation |
Argentina, Australia, China, Japan, Korea, Brazil, United Kingdom, United States, Europe |
| Camera |
| Type |
Colour - Day&Night - fixed |
| Digital Video Format |
MPEG-4, MJPEG, H.264 |
| Max Digital Video Resolution |
1280 x 720 |
| Motion Detection |
Yes |
| Video Modes |
720p |
| Exposure Range |
2 sec - 1/33500 sec |
| Minimum Illumination |
0.15 lux - colour - F1.4 - 50 IRE
0.03 lux - B&W - F1.4 - 50 IRE |
| Digital Video Capture Resolution |
1280 x 720, 160 x 90 |
| Frame Rate (max) |
30 frames per second |
| RAM |
1024 MB |
| Flash Memory |
512 MB |
| Features |
Sharpness control, white balance, colour control, brightness control, contrast control, Wide Dynamic Range (WDR), AXIS Video Hosting System (AVHS), infrared cut filter, Video Motion Detection Technology, active tampering alarm, digital PTZ function, LED indicator, password protection, IR Corrected lens, Variable Bitrate (VBR), Zipstream technology, ONVIF (Profile S) support, ONVIF (Profile G) support, ONVIF (Profile T) support |
| Image Sensor |
| Type |
RGB CMOS 1/3" |

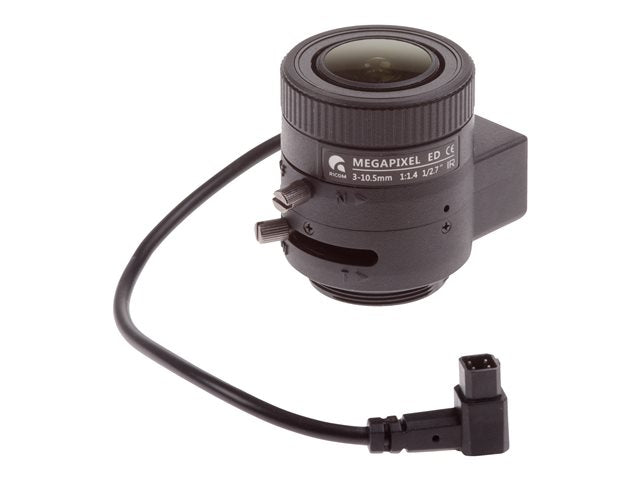

| Lens Construction |
| Type |
CS-mount - vari-focal |
| Optical Zoom |
3.5 x |
| Focal Length |
3 mm - 10.5 mm |
| Lens Iris |
F/1.4 auto iris (DC) |
| Horizontal Field of View (degree) |
33 - 90 |
| Vertical Field of View (degree) |
19 - 49 |
| Interfaces |
| Network Interface |
Ethernet 10Base-T/100Base-TX |
| Network Protocols |
DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP 1, SNMP 2c, SNMP 3, SOCKS, RTSP, RTP, HTTPS, UPnP, TLS, IPv4, IPv6, Bonjour, RTCP, SMB, IGMP, SSH, SSL, QOS, CIFS, SFTP |
| Expansion / Connectivity |
| Ports |
LAN/power - RJ-45
Audio line-in/microphone - 3.5 mm jack |
| Supported Memory Cards |
microSD Card, microSDHC Card, microSDXC Card |
| Miscellaneous |
| Included Accessories |
Stand |
| Compliant Standards |
C-Tick, EN 61000-3-2, EN 61000-3-3, EN55024, EN 61000-6-1, ICES-003 Class A, EN 61000-6-2, FCC CFR47 Part 15, UL 60950-1, IEC 60950-1, EN 60950-1, IEC 60068-2-30, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-14, IEC 60068-2-78, EN 50121-4, VCCI Class A, EN 50581, KN24, KCC KN22, AS/NZS CISPR22:2004 Class A, EN 55022 Class A |
| Colour |
Black, white |
| Power |
| Power Requirements |
DC 8 - 28 V / PoE |
| Power Device |
6.49 Watt |
| Software / System Requirements |
| Software Included |
Windows decoder 1-user licence |
| Manufacturer Warranty |
| Service & Support |
Limited warranty - 3 years |
| Environmental Parameters |
| Min Operating Temperature |
-20 °C |
| Max Operating Temperature |
50 °C |
| Relative Humidity (operating) |
10 - 80% (non-condensing) |
