| Marketing Description |

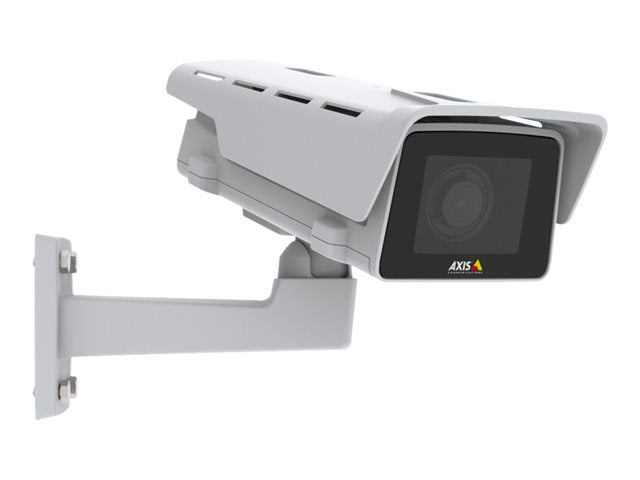

| AXIS M1137-E is a compact, outdoor-ready network camera that delivers superb image quality in 5 MP resolution. Designed as a visible deterrent, it helps discourage trespassing, antisocial or criminal behavior. It offers flexible, low-cost installation making it ideal for various industrial or commercial surveillance situations, such as warehouses, storage or delivery areas. |
| Product Features |
-
More bang for your buck
This affordable Axis M-line camera offers one-way audio allowing you to record video with sound. And, with a video streaming indicator, it's easy to check that the video is up and running. Axis Zipstream with support for both H.264 and H.265 video compression significantly reduces bandwidth and storage requirements without compromising image quality. Thanks to support for PoE and redundant DC power, you get flexible installation and your data is safeguarded in the event of a power outage. Furthermore, it offers enhanced security functionality to prevent unauthorized access and safeguard your system. Signed firmware and secure boot ensures only authorized firmware is installed and that the firmware hasn't been compromised.
-
Sharp images even in low light
AXIS M1137-E offers 5 MP resolution at up to 30 fps and delivers superb video quality even in low light conditions. It features Axis Lightfinder for images in true colors even in low light and with Axis Forensic WDR you get clarity even when there's both dark and light areas in the scene. Furthermore, it offers a CS-mount with interchangeable lenses, so you can easily change lens and ensure you capture the exact images you need. Use lens calculator to select a lens that meets your specific requirements.
-
Designed for deterrence
This robust, outdoor-ready camera has you covered both day and night - outside in the cold, heat, rain or sun, or inside your office or store. It comes enclosed in an IP66-, IK10- and NEMA 4X-rated casing to protect against water, corrosion, dust and impacts. AXIS M1137-E sends a powerful message of deterrence to potential offenders to let them know you're watching. It provides a clearly visible, fixed angle of view, making it easy to see exactly where the camera's pointing and allowing you to record both audio and video in a precisely defined area.
|
| General |
| Device Type |
Network surveillance camera |
| Audio Formats |
G.726, ADPCM, AAC-LC, LPCM, G.711, OPUS |
| Connectivity Technology |
Wired |
| Width |
24 cm |
| Depth |
14.3 cm |
| Height |
37.2 cm |
| Weight |
1.8 kg |
| Localisation |
Argentina, Australia, China, Japan, Korea, Brazil, United Kingdom, United States, Europe |
| Camera |
| Type |
Colour - Day&Night - fixed - outdoor |
| Digital Video Format |
MPEG-4, MJPEG, H.264 |
| Max Digital Video Resolution |
2592 x 1944 |
| Motion Detection |
Yes |
| Exposure Range |
1/5 sec - 1/33500 sec |
| Minimum Illumination |
0.17 lux - colour - F1.4 - 50 IRE
0.03 lux - B&W - F1.4 - 50 IRE |
| Digital Video Capture Resolution |
160 x 120, 2592 x 1944 |
| Frame Rate (max) |
30 frames per second |
| RAM |
1024 MB |
| Flash Memory |
512 MB |
| Features |
Sharpness control, white balance, colour control, brightness control, contrast control, Wide Dynamic Range (WDR), AXIS Video Hosting System (AVHS), infrared cut filter, Video Motion Detection Technology, active tampering alarm, digital PTZ function, LED indicator, password protection, IR Corrected lens, Variable Bitrate (VBR), Zipstream technology, ONVIF (Profile S) support, ONVIF (Profile G) support, ONVIF (Profile T) support |
| Image Sensor |
| Type |
5 MP RGB CMOS 1/3" |
| Lens Construction |
| Type |
CS-mount - vari-focal |
| Optical Zoom |
4.6 x |
| Focal Length |
2.8 mm - 13 mm |
| Lens Iris |
F/1.4 auto iris (DC) |
| Horizontal Field of View (degree) |
24 - 112 |
| Vertical Field of View (degree) |
19 - 82 |
| Interfaces |
| Network Interface |
Ethernet 10Base-T/100Base-TX |
| Network Protocols |
DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP 1, SNMP 2c, SNMP 3, SOCKS, RTSP, RTP, HTTPS, UPnP, TLS, IPv4, IPv6, Bonjour, RTCP, SMB, IGMP, SSH, SSL, QOS, CIFS, SFTP |
| Expansion / Connectivity |
| Ports |
LAN/power - RJ-45
Audio line-in/microphone - 3.5 mm jack |
| Supported Memory Cards |
microSD Card, microSDHC Card, microSDXC Card |
| Miscellaneous |
| Included Accessories |
Connector kit, AXIS T94Q01A Wall Mount, screw bit T30 |
| Compliant Standards |
C-Tick, EN 61000-3-2, EN 61000-3-3, EN55024, IEC 60529 IP66, EN 61000-6-1, ICES-003 Class A, EN 61000-6-2, FCC CFR47 Part 15, UL 60950-1, IEC 60950-1, EN 60950-1, IEC 60068-2-30, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-14, IEC 60068-2-78, EN 50121-4, VCCI Class A, EN 50581, KN24, KCC KN22, AS/NZS CISPR22:2004 Class A, EN 55022 Class A, NEMA250 Type 4X, EN 62262 IK10 |
| Colour |
White |
| Power |
| Power Requirements |
DC 8 - 28 V / PoE |
| Power Device |
7.2 Watt |
| Software / System Requirements |
| Software Included |
Windows decoder 1-user licence |
| Manufacturer Warranty |
| Service & Support |
Limited warranty - 3 years |
| Environmental Parameters |
| Min Operating Temperature |
-25 °C |
| Max Operating Temperature |
50 °C |
| Relative Humidity (operating) |
10 - 100% |
