| Marketing Description |

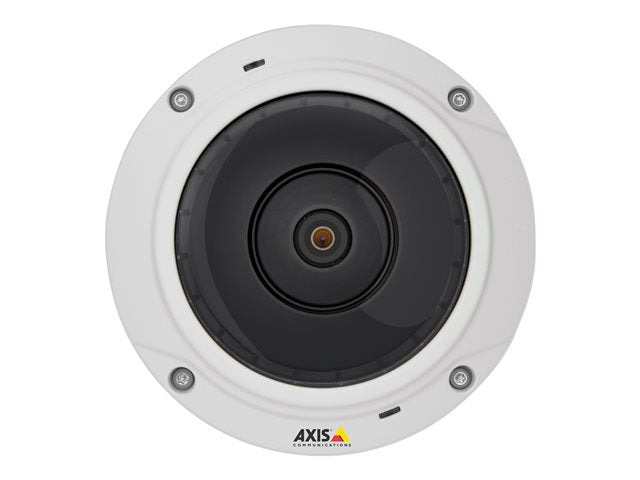

AXIS M3037-PVE is a factory-focused mini dome that provides superb image quality in daylight as well as dark conditions. It supports 360° overview, and dewarped views such as panorama, double panorama, 270° corner and quad views.
The vandal-resistant camera offers full duplex audio with echo cancellation and noise reduction and it supports Session Initiation Protocol (SIP) for easy integration with IP phone systems.
Support for AXIS Camera Application Platform enables video analytics applications such as people counting and cross-line detection. AXIS M3037-PVE can help detect activity, track the flow of people and improve situational awareness. |
| Product Features |
-
Wide angular field of view
With an angular field of view reaching up to 187 degrees horizontally and 168 degrees vertically, the AXIS M3037-PVE offers comprehensive coverage, reducing the need for multiple cameras and ensuring critical areas are not missed.
-
Robust environmental adaptability
Designed to operate in a wide range of temperatures from -30°C to 50°C and compliant with IEC 60529 IP66 and IEC 62262 IK10 standards, this camera is both vandal- and weatherproof, making it ideal for outdoor surveillance needs.
-
High-quality imaging
Equipped with a CMOS optical sensor and a maximum resolution of 2592 x 1944, the camera delivers clear, detailed images even in low-light conditions, thanks to its F2.0 aperture, ensuring reliable surveillance day and night.
-
Advanced networking capabilities
Supporting a wide array of network protocols including IPv4, IPv6, DHCP, and more, the AXIS M3037-PVE ensures seamless integration and compatibility with existing network infrastructure, offering flexibility in deployment and operation.
-
Comprehensive surveillance features
From two-way audio capability with a built-in microphone and speaker to day and night functionality and wide dynamic range, this camera is equipped with features that enhance its surveillance capabilities, making it a versatile choice for a variety of settings.
|
| General |
| Device Type |
Network surveillance camera |
| Audio Support |
Yes: built-in speaker, two-way audio capability, built-in microphone |
| Form Factor |
Dome |
| Connectivity Technology |
Wired |
| Width |
13.2 cm |
| Depth |
13.2 cm |
| Height |
7.3 cm |
| Weight |
740 g |
| Camera |
| Type |
Colour - Day&Night - fixed - outdoor - vandal / weatherproof |
| Digital Video Format |
MJPEG, H.264 |
| Max Digital Video Resolution |
2592 x 1944 |
| Exposure Range |
2 sec - 1/24500 sec |
| Minimum Illumination |
0.3 lux - colour - F2.0
0.06 lux - B&W - F2.0 |
| RAM |
512 MB |
| Flash Memory |
128 MB |
| Features |
Exposure compensation, Backlight Compensation (BLC), white balance, colour control, brightness control, Power over Ethernet, contrast control, image mirror, Wide Dynamic Range (WDR), ONVIF support, Privacy Mask Function |
| Image Sensor |
| Type |
CMOS 1/3.2" |
| Lens Construction |
| Type |
M12 mount |
| Focal Length |
1.27 mm |
| Lens Iris |
F/2.0 fixed iris |
| Horizontal Field of View (degree) |
187 |
| Vertical Field of View (degree) |
168 |
| Panning |
| Range (degree) |
360 |
| Tilting |
| Range (degree) |
180 |
| Interfaces |
| Network Interface |
Ethernet 10Base-T/100Base-TX |
| Network Protocols |
DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP 1, SNMP 2c, SNMP 3, SOCKS, RTSP, RTP, HTTPS, UPnP, TLS, IPv4, IPv6, Bonjour, RTCP, SMB, IGMP, SSH, SSL, QOS, CIFS, SFTP |
| Alarm Inputs Qty |
1 |
| Alarm Outputs Qty |
1 |
| Expansion / Connectivity |
| Ports |
LAN - RJ-45 |
| Supported Memory Cards |
microSD Card, microSDHC Card, microSDXC Card |
| Miscellaneous |
| Included Accessories |
Mounting kit |
| Compliant Standards |
CISPR 22 Class B, EN55024, IEC 60529 IP66, EN55022 Class B, ICES-003 Class B, EN 61000-6-1, NEMA Type 4X, EN 61000-6-2, FCC CFR47 Part 15 B, IEC 62262 IK10, VCCI Class B, KN22, KN24 |
| Colour |
White |
| Power |
| Power Requirements |
PoE Class 3 |
| Power Device |
3.4 Watt |
| Manufacturer Warranty |
| Service & Support |
Limited warranty - 1 year |
| Environmental Parameters |
| Min Operating Temperature |
-30 °C |
| Max Operating Temperature |
50 °C |
| Relative Humidity (operating) |
10 - 100% |
