| Marketing Description |

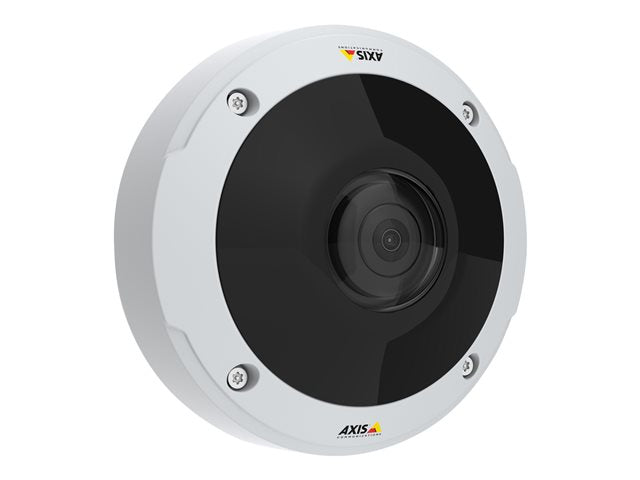

| AXIS M3057-PLVE Network Camera delivers outstanding video in any light conditions, using Axis-developed forensic WDR technologies. With its integrated, automatically adaptable optimized IR illumination, this versatile camera even sees in the dark. The camera offers 360° overview as well as dewarped views. |
| General |
| Device Type |
Network surveillance camera |
| Form Factor |
Dome |
| Connectivity Technology |
Wired |
| Width |
14.9 cm |
| Depth |
14.9 cm |
| Height |
6.6 cm |
| Weight |
770 g |
| Camera |
| Type |
Colour - Day&Night - fixed - outdoor - dustproof / waterproof / vandal-proof |
| Digital Video Format |
MJPEG, H.264, MPEG-4 AVC |
| Max Digital Video Resolution |
3072 x 2048 |
| Motion Detection |
Yes |
| Video Modes |
1080p |
| Exposure Range |
2 sec - 1/100000 sec |
| Minimum Illumination |
0.16 lux - colour - F2.0 - 50 IRE
0.03 lux - B&W - F2.0 - 50 IRE
0 lux - IR |
| Infrared LEDs |
Yes |
| Infrared Distance |
20 m |
| Digital Video Capture Resolution |
320 x 240, 2560 x 1920, 1920 x 1440, 3072 x 2048, 2048 x 1152, 160 x 160, 2560 x 960, 2048 x 2048, 256 x 144, 192 x 72, 2368 x 1184 |
| Frame Rate (max) |
60 frames per second |
| RAM |
2 GB |
| Flash Memory |
512 MB |
| Features |
Sharpness control, white balance, colour control, progressive scanning, brightness control, contrast control, image mirror, Privacy Mask Function, notification picture to E-mail, Lightfinder technology, active tampering alarm, digital PTZ function, password protection, OptimizedIR, Zipstream technology, image overlay, exposure control, infrared-cut filter, Forensic WDR |
| Image Sensor |
| Type |
6 MP CMOS 1/1.8" |
| Lens Construction |
| Type |
Fixed focal |
| Focal Length |
1.6 mm |
| Lens Iris |
F/2.0 fixed iris |
| Horizontal Field of View (degree) |
185 |
| Vertical Field of View (degree) |
185 |
| Panning |
| Range (degree) |
-180 to +180 |
| Interfaces |
| Video |
HDMI |
| Network Interface |
Ethernet 10Base-T/100Base-TX |
| Network Protocols |
DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP 1, SNMP 2c, SNMP 3, SOCKS, RTSP, RTP, HTTPS, UPnP, TLS, IPv4, IPv6, Bonjour, RTCP, SMB, IGMP, SSH, SSL, QOS, CIFS, SRTP, SFTP, LLDP |
| Alarm Inputs Qty |
1 |
| Expansion / Connectivity |
| Ports |
LAN/power - RJ-45
HDMI output |
| Supported Memory Cards |
microSD Card, microSDHC Card |
| Miscellaneous |
| Included Accessories |
Mounting bracket, cable gaskets, drill hole template, Resistorx T20 tool L-key, I/O connector, connector guard, cable hole lid, view protector |
| Compliant Standards |
EN55024, EN 61000-6-1, ICES-003 Class A, EN 61000-6-2, IEC 60068-2-27, IEC 60068-2-6, IK10, FCC Part 15 B Class A, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-14, KC, EN 50121-4, IEC 62236-4, VCCI Class A, RCM, KN35, NEMA250 Type 4X, KN32 Class A, EN 55032 Class A, IEC/EN/UL 60950-22, IEC/EN 62471, IEEE 802.3af, IEEE 802.3at, IEC/EN 62262, AS/NZS CISPR32 Class A, IEC/EN/UL 62368-1, IEC/EN 60529 IP66, IEEE 802.1x |
| Colour |
White |
| Power |
| Power Requirements |
PoE Plus |
| Power Device |
12.95 Watt |
| Software / System Requirements |
| Software Included |
Windows decoder 1-user licence |
| Manufacturer Warranty |
| Service & Support |
Limited warranty - 3 years |
| Environmental Parameters |
| Min Operating Temperature |
-40 °C |
| Max Operating Temperature |
50 °C |
| Relative Humidity (operating) |
10 - 100% |
