| Marketing Description |
| This compact, outdoor-ready mini dome offers outstanding images and complete 360° panoramic overview for a wide range of surveillance scenarios. It features two built-in microphones for audio surveillance and detection. And, enhanced security features to safeguard your system. |
| Product Features |
-
See and hear - 24/7

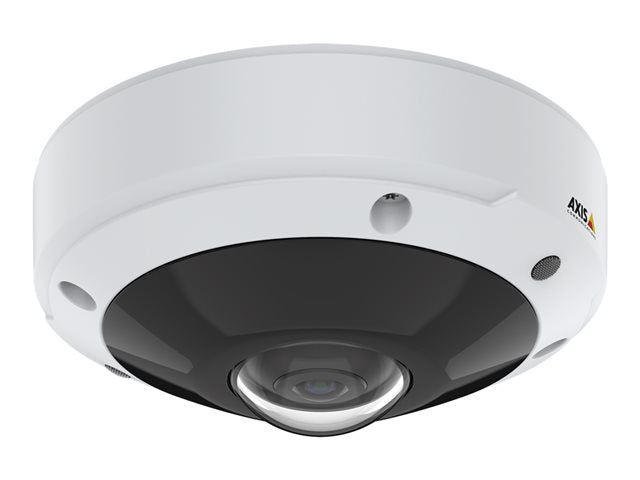

AXIS M3077-PLVE delivers a complete 180° or 360° overview, indoors or out, around the clock. This compact, IK10-rated, vandal-resistant mini dome can be repainted to blend in seamlessly with any surroundings. And, the IP66 rating keeps the camera safe from dust and powerful blasts of water. It features two built-in microphones allowing for audio surveillance and detection. Furthermore, you can use one video stream to produce any dewarped views you'd like. And, it's possible to stream panorama, quad, corner, and corridor views directly from the camera. Plus, you can digitally pan, tilt, and zoom in on areas of interest in up to four areas simultaneously.
-
Sharp images in any light
With its 6MP sensor, AXIS M3077-PLVE offers excellent image quality regardless of the light conditions. It includes Axis Lightfinder for sharp, color images in poor lighting conditions and Axis Forensic WDR for high-quality images even when there's both dark and light areas in the scene. Plus, there's no need for extra lighting, thanks to Axis OptimizedIR you get 24/7 coverage for surveillance in pitch darkness up to 20m or more. Furthermore, it's possible to stream the complete 360° overview so you can be sure you record everything with no blind spots.
-
Advanced camera
AXIS M3077-PLVE is packed with enhanced security functionality to prevent unauthorized access and safeguard your system. Axis Edge Vault protects your Axis device ID and simplifies authorization of Axis devices on your network. Additionally, signed firmware and secure boot guarantee that the firmware hasn't been compromised and ensure only authorized firmware is installed. And, secure boot guarantees the camera is completely free of malware even after a factory default. It's delivered factory-focused and features digital roll functionality allowing you to remotely adjust the rotation of the camera overview - no need to do it manually on each camera. Furthermore, Axis Zipstream with support for H.264 and H.265 video compression significantly reduces bandwidth and storage requirements.
|
| General |
| Device Type |
Network panoramic camera |
| Audio Support |
Yes: built-in microphone, two-way audio capability |
| Audio Formats |
AAC-LC, ADPCM, G.711, G.726, LPCM, OPUS, PCM |
| Form Factor |
Dome |
| Connectivity Technology |
Wired |
| Width |
14.9 cm |
| Depth |
14.9 cm |
| Height |
6.6 cm |
| Weight |
700 g |
| Camera |
| Type |
Colour - Day&Night - fixed - outdoor - vandal / weatherproof |
| Digital Video Format |
MJPEG, H.264, H.265 |
| Max Digital Video Resolution |
2016 x 2016 |
| Motion Detection |
Yes |
| Exposure Range |
1 sec - 1/16000 sec |
| Minimum Illumination |
0.16 lux - colour - F2.0 - 50 IRE
0.03 lux - B&W - F2.0 - 50 IRE
0 lux - IR |
| Infrared LEDs |
Yes |
| Infrared Distance |
20 m |
| Digital Video Capture Resolution |
160 x 160, 2560 x 1440, 192 x 72, 2560 x 1920, 384 x 288, 2016 x 2016, 1920 x 1440, 256 x 144, 2368 x 1184 |
| Frame Rate (max) |
60 frames per second |
| RAM |
1 GB |
| Flash Memory |
512 MB |
| Features |
Panorama Capture, Double Panorama Capture, Corridor mode, Wide Dynamic Range (WDR), 360° field of view, compression, auto gain control, auto low-light correction, brightness control, contrast control, day/night threshold, exposure control, exposure zone, Forensic WDR, image mirror, image overlay, polygon privacy mask, saturation control, sharpness control, text overlay, tone correction, white balance, adjustable zoom speed, digital PTZ function, guard tour, lens preset positioning, on-screen directional indicator, tour recording, Access Control, digest authentication, HTTPs encryption, IP address filtering, password protection, secure boot, signed firmware, active tampering alarm, Pixel Counter Support, Power over Ethernet, NAS-Ready, Lightfinder technology, OptimizedIR |
| Image Sensor |
| Type |
6 MP RGB CMOS 1/1.8" |
| Lens Construction |
| Type |
Fixed focal |
| Focal Length |
1.56 mm |
| Lens Iris |
F/2.0 fixed iris |
| Horizontal Field of View (degree) |
183 |
| Vertical Field of View (degree) |
183 |
| Interfaces |
| Network Protocols |
IPv6, USGv6, HTTP, HTTPS, ARP, Bonjour, CIFS, DDNS, DHCP, DNS, FTP, ICMP, IGMP, LLDP, MQTT, NTP, QOS, RTCP, RTP, RTSP, SFTP, SIP, SMB, SMTP, SNMP 1, SNMP 2c, SNMP 3, SOCKS, SRTP, SSH, SSL, TCP/IP, TLS, UDP/IP, UPnP |
| Expansion / Connectivity |
| Supported Memory Cards |
microSD Card, microSDHC Card, microSDXC Card |
| Miscellaneous |
| Included Accessories |
Drill hole template, cable gaskets, connector guard, I/O connector, Resitorx TR20 screw bit, mounting bracket, cable hole lid, view protector |
| Compliant Standards |
IEEE 802.1x, IP66, NEMA 4, IK10, IEEE 802.3af, IEEE 802.3at, AS/NZS CISPR 32 Class A, EN 55032 Class A, EN 55035, EN 61000-6-1, EN 61000-6-2, EN55024, FCC Part 15 B Class A, ICES-3(A)/NMB-3(A), IEC 60068-2-1, IEC 60068-2-14, IEC 60068-2-2, IEC 60068-2-27, IEC 60068-2-6, IEC 60068-2-78, IEC 60721-3-5 Class 5M3, IEC/EN 60529 IP66, IEC/EN 62262, IEC/EN 62471, IEC/EN/UL 60950-22, IEC/EN/UL 62368-1, IPv6, KN32 Class A, KN35, NEMA TS-2-2016, NEMA250 Type 4X, NIST SP500-267, USGv6, VCCI Class A |
| Colour |
White |
| Power |
| Power Requirements |
PoE Class 3 |
| Power Device |
8 Watt |
| Software / System Requirements |
| Software Included |
Windows decoder 1-user licence, AXIS Device Manager, AXIS Companion, AXIS Camera Station, AXIS Video Motion Detection |
| Manufacturer Warranty |
| Service & Support |
Limited warranty - 5 years |
| Environmental Parameters |
| Min Operating Temperature |
-40 °C |
| Max Operating Temperature |
50 °C |
| Relative Humidity (operating) |
10 - 100% (condensing) |
