| Marketing Description |
Are you looking for an affordable and discreet indoor camera that delivers high quality video surveillance under any light conditions? AXIS M42 Fixed Dome Cameras are ultra-compact and reliable network cameras designed to blend seamlessly with any environment.
Perhaps you need a hawk-eye overview of an area? Or a close-up of a cash desk or high-ticket item? These easy-to-install cameras with varifocal lens provide clear and detailed images, so you can always keep an eye on what's happening on your premises. |
| Product Features |
-
Designed for discretion or deterrence

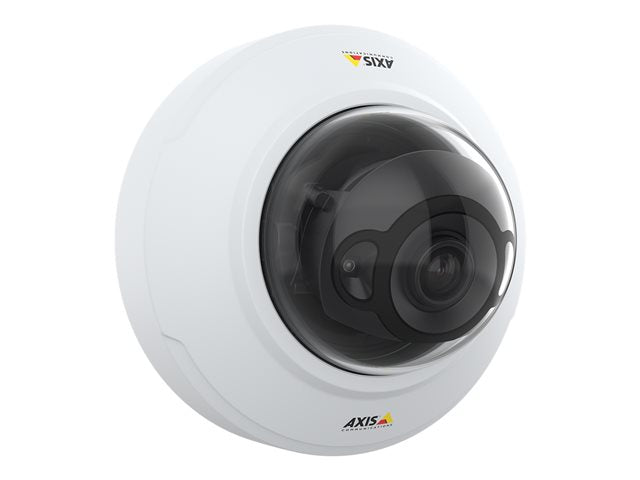

The compact dome design means AXIS M4206-LV can be discreetly installed so it's not easily noticed. These mini domes can be repainted to blend in seamlessly with any interior. Clear and smoked dome covers are also available as accessories, so you can conceal the direction in which the camera is pointing, making it perfect for any location where discreet monitoring is needed to protect your assets. Plus, it can be used as a visible deterrent to discourage antisocial and criminal behavior thanks to a HDMI port that can display digital streams on public viewing monitors.
-
Outstanding images from every angle
AXIS M4206-LV Network Camera offers a flexible field of view. It includes 3-6 mm varifocal lens letting you adjust and focus from remote locations. This camera delivers 3 MP for wide 4:3 view and 1080p for 16:9 aspect ratio, with a viewing angle up to 100°. Under challenging light, WDR and Zipstream lets you capture the important details while lowering bandwidth and storage requirements by 50% or more. And with IR Illumination, you get exceptional clarity and sharpness even in pitch darkness.
-
Easy to install
AXIS M4206-LV is easy to install and operate. Including a wide range of accessories, this camera can be mounted just about anywhere indoors. Mounting on walls or ceilings requires only two screws, and the casing simply snaps on. Plus, thanks to its dust-resistant casing you can be confident it's safe and secure.
|
| General |
| Device Type |
Network surveillance camera |
| Form Factor |
Dome |
| Camera Mount Type |
Wall mount, ceiling mount |
| Connectivity Technology |
Wired |
| Width |
12.1 cm |
| Depth |
12.1 cm |
| Height |
7.1 cm |
| Weight |
370 g |
| Camera |
| Type |
Colour - Day&Night - fixed - indoor - dustproof / waterproof |
| Digital Video Format |
MJPEG, H.264, HEVC, H.265, MPEG-4 AVC |
| Max Digital Video Resolution |
2048 x 1536 |
| Motion Detection |
Yes |
| Video Modes |
720p, 1080p |
| Exposure Range |
1/5 sec - 1/10000 sec |
| Minimum Illumination |
0.26 lux - colour - F2.0 - 50 IRE
0.05 lux - B&W - F2.0 - 50 IRE
0 lux - IR |
| Infrared LEDs |
Yes |
| Infrared Distance |
15 m |
| Digital Video Capture Resolution |
320 x 240, 2048 x 1536 |
| Frame Rate (max) |
30 frames per second |
| RAM |
512 MB |
| Flash Memory |
512 MB |
| Features |
Sharpness control, white balance, colour control, progressive scanning, brightness control, contrast control, e-mail alerts, Wide Dynamic Range (WDR), Privacy Mask Function, Video Motion Detection Technology, digital PTZ function, Event Notification, password protection, OptimizedIR, Zipstream technology, remote focus, ONVIF (Profile S) support, ONVIF (Profile G) support, image overlay, exposure control, infrared-cut filter |
| Image Sensor |
| Type |
3 MP CMOS 1/2.5" |
| Lens Construction |
| Type |
Vari-focal |
| Optical Zoom |
2 x |
| Focal Length |
3 mm - 6 mm |
| Lens Iris |
F/2.0 fixed iris |
| Horizontal Field of View (degree) |
45 - 100 |
| Vertical Field of View (degree) |
34 - 72 |
| Panning |
| Range (degree) |
-180 to +180 |
| Tilting |
| Range (degree) |
-40 to +65 |
| Interfaces |
| Video |
HDMI |
| Network Interface |
Ethernet 10Base-T/100Base-TX |
| Network Protocols |
DDNS, DHCP, DNS, FTP, HTTP, NTP, TCP/IP, UDP/IP, SNMP 1, SNMP 2c, SNMP 3, SOCKS, RTSP, RTP, HTTPS, UPnP, TLS, IPv4, IPv6, Bonjour, RTCP, SMB, IGMP, SSH, SSL, QOS, CIFS, SRTP, SFTP, LLDP, USGv6 |
| Expansion / Connectivity |
| Ports |
LAN/power - RJ-45
HDMI - Type D |
| Supported Memory Cards |
microSD Card, microSDHC Card, microSDXC Card |
| Miscellaneous |
| Compliant Standards |
EN55024, EN 61000-6-1, ICES-003 Class A, EN 61000-6-2, IEC 60068-2-27, IEC 60068-2-6, FCC Part 15 B Class A, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-14, IP42, EN 50121-4, IEC 62236-4, VCCI Class A, RCM, IEC 62471, AS/NZS CISPR 32 Class A, EN 55032 Class A, IEEE 802.3af, IEEE 802.3at, IEC/EN/UL 62368-1, IEC/EN 62262 IK08, NIST SP500-267, IEC/EN 60529 IP42 |
| Colour |
White |
| Power |
| Power Requirements |
PoE Plus |
| Power Device |
8.1 Watt |
| Software / System Requirements |
| Software Included |
Windows decoder 1-user licence |
| Manufacturer Warranty |
| Service & Support |
Limited warranty - 3 years |
| Environmental Parameters |
| Min Operating Temperature |
0 °C |
| Max Operating Temperature |
45 °C |
| Relative Humidity (operating) |
10 - 85% (non-condensing) |
