| Marketing Description |

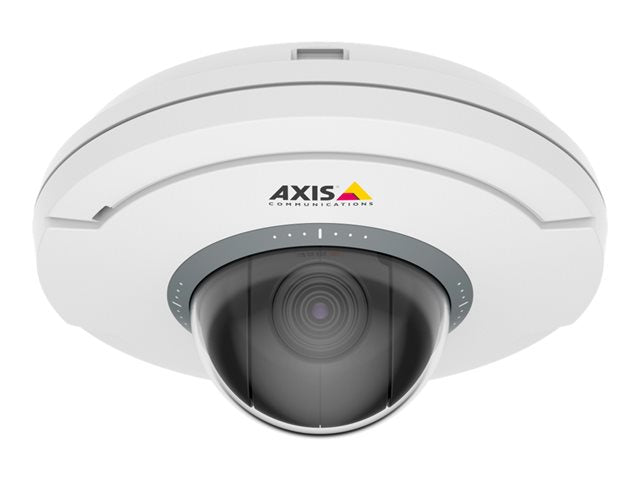

| AXIS M5055 PTZ network camera is a discreet, palm-sized PTZ camera that fits in anywhere. Perfect for smaller installations, it offers an affordable way to see the big picture - and all the important details. |
| Product Features |
-
See it all - and see it clearly
AXIS M5055 gives you good, detailed video with 71° horizontal field of view. PTZ functionality lets you benefit from sweeping overviews and zoom in to get the details.
-
Built-in analytics
AXIS M5055 provides even more functionality and versatility thanks to these built-in analytics. Scream detection - an event is triggered when the built-in microphone detects a scream in the camera's proximity.
|
| General |
| Device Type |
Network surveillance camera |
| Audio Support |
Yes: built-in microphone |
| Camera Mount Type |
Ceiling mount |
| Connectivity Technology |
Wired |
| Width |
13 cm |
| Depth |
13 cm |
| Height |
6.3 cm |
| Weight |
375 g |
| Camera |
| Type |
Colour - pan / tilt / zoom |
| Digital Video Format |
MJPEG, H.264, AVC |
| Max Digital Video Resolution |
1920 x 1080 |
| Motion Detection |
Yes |
| Video Modes |
1080p |
| Digital Zoom |
10 |
| Exposure Range |
1 sec - 1/16000 sec |
| Minimum Illumination |
1.2 lux - colour - F1.4 - 30 IRE |
| Digital Video Capture Resolution |
1920 x 1080, 320 x 180 |
| Frame Rate (max) |
30 frames per second |
| RAM |
512 MB |
| Flash Memory |
256 MB |
| Features |
Sharpness control, white balance, colour control, brightness control, Power over Ethernet, Wide Dynamic Range (WDR), NAS-Ready, Video Motion Detection Technology, Removed Object Detection, Volume Detection, password protection, Variable Bitrate (VBR), Zipstream technology, 25 preset positions, scream detection, image overlay, exposure control, Pixel Counter Support, digest authentication, IP address filtering, exposure zone, on-screen directional indicator |
| Image Sensor |
| Type |
RGB CMOS 1/4.85" |
| Lens Construction |
| Type |
Motorized zoom |
| Optical Zoom |
5 x |
| Focal Length |
2.2 mm - 11 mm |
| Lens Iris |
F/1.4-2.5 |
| Focus Adjustment |
Automatic |
| Horizontal Field of View (degree) |
14 - 71 |
| Vertical Field of View (degree) |
8 - 40 |
| Panning |
| Range (degree) |
-179 to +179 |
| Speed (degree/sec) |
Up to 100 |
| Tilting |
| Range (degree) |
90 |
| Speed (degree/sec) |
Up to 100 |
| Interfaces |
| Network Interface |
Ethernet 10Base-T/100Base-TX |
| Network Protocols |
DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP 1, SNMP 2c, SNMP 3, SOCKS, RTSP, RTP, HTTPS, UPnP, TLS, IPv4, IPv6, Bonjour, RTCP, SMB, IGMP, SSH, SSL, QOS, CIFS, SFTP |
| Expansion / Connectivity |
| Supported Memory Cards |
microSD Card, microSDHC Card, microSDXC Card |
| Miscellaneous |
| Compliant Standards |
EN55024, EN 61000-6-1, ICES-003 Class A, EN 61000-6-2, FCC Part 15 B Class A, IP51, VCCI Class A, IEC EN60529, KN35, AS/NZS CISPR 32 Class A, EN 55032 Class A, KCC KN32 Class A, IEEE 802.3af, IEEE 802.3at, IEC/EN/UL 62368-1 |
| Power |
| Power Device |
7.8 Watt |
| Software / System Requirements |
| Software Included |
Windows decoder 1-user licence |
| Manufacturer Warranty |
| Service & Support |
Limited warranty - 3 years |
| Environmental Parameters |
| Min Operating Temperature |
0 °C |
| Max Operating Temperature |
45 °C |
| Relative Humidity (operating) |
10 - 90% (non-condensing) |
