| Marketing Description |

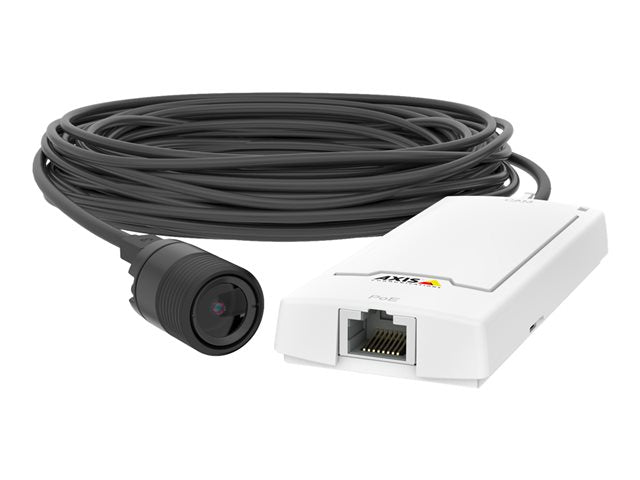

AXIS P1245 Network Camera includes a thumb-sized sensor unit, a compact main unit, a mounting bracket and locking nuts for easy installation. Together, these discreet components help the camera meld into any environment. For example, it's suitable for mounting in ticket machines, in healthcare monitoring equipment, in ATM machines and behind walls and ceiling panels.
AXIS P1245 comes complete with a sensor unit, an 8-meter cable and a main unit with network and power connection as well as a memory card slot. It's easy to buy - because they put everything you need right in the box.
AXIS P1245 provides a wide 111° horizontal field of view and HDTV 1080p for excellent video quality. It is equipped with Wide Dynamic Range - Forensic Capture, which enables the camera to handle scenes with strong variations in light. AXIS P1245 also offers good color video in low light. |
| Product Features |
-
Highly discreet installation
AXIS P1245 Network Camera includes a thumb-sized sensor unit, a compact main unit, a mounting bracket and locking nuts for easy installation. Together, these discreet components help the camera meld into any environment. For example, it's suitable for mounting in ticket machines, in healthcare monitoring equipment, in ATM machines and behind walls and ceiling panels.
-
Plug-and-Play modular design
AXIS P1245 comes complete with a sensor unit, an 8-meter cable and a main unit with network and power connection as well as a memory card slot. It's easy to buy - because they put everything you need right in the box.
-
Don't miss a thing
AXIS P1245 provides a wide 111° horizontal field of view and HDTV 1080p for excellent video quality. It is equipped with Wide Dynamic Range - Forensic Capture, which enables the camera to handle scenes with strong variations in light. AXIS P1245 also offers good color video in low light.
-
Keep it discreet, flexible and easy
AXIS P1245 can be installed in tight places, behind glass or plastic sheet. The camera comes with a detachable cable that connects the sensor unit to the main unit for flexible installation. This also simplifies maintenance and enables the use of accessory cables.
-
Compact main unit
The main unit, with dimensions of 1.7 x 4.6 x 11 cm (5/8 x 1 13/16 x 4 5/16 in. ) makes it easy to install in tight places. It provides HDTV 1080p video and is powered through Power over Ethernet (PoE). It has a built-in microSD card slot for local storage of recordings.
|
| General |
| Device Type |
Network surveillance camera |
| Camera Mount Type |
Flush mount |
| Connectivity Technology |
Wired |
| Camera |
| Type |
Colour - fixed |
| Digital Video Format |
MPEG-4, MJPEG, H.264 |
| Max Digital Video Resolution |
1920 x 1080 |
| Video Modes |
1080p |
| Exposure Range |
1/32500 sec - 1/25 sec |
| Minimum Illumination |
0.22 lux - colour |
| Frame Rate (max) |
30 frames per second |
| RAM |
512 MB |
| Flash Memory |
256 MB |
| Features |
Sharpness control, white balance, colour control, brightness control, Power over Ethernet, contrast control, Wide Dynamic Range (WDR), AXIS Video Hosting System (AVHS), Privacy Mask Function, password protection, Zipstream technology, exposure control, Pixel Counter Support, digest authentication |
| Image Sensor |
| Type |
CMOS 1/3" |
| Lens Construction |
| Type |
Vari-focal |
| Focal Length |
2.8 mm |
| Lens Iris |
F/2.0 fixed iris |
| Horizontal Field of View (degree) |
111 - 61 |
| Interfaces |
| Network Interface |
Ethernet 10Base-T/100Base-TX |
| Network Protocols |
DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP 1, SNMP 2c, SNMP 3, SOCKS, RTSP, HTTPS, UPnP, TLS, IPv4, IPv6, Bonjour, RTCP, SMB, IGMP, SSH, SSL, QOS, CIFS, SFTP |
| Expansion / Connectivity |
| Ports |
LAN/power - RJ-45
Sensor unit - RJ-12 |
| Supported Memory Cards |
microSD Card, microSDHC Card, microSDXC Card |
| Miscellaneous |
| Included Accessories |
Mounting bracket, 2 locking nuts, AVHS Authentication key |
| Cables Included |
1 x sensor cable - external - 8 m |
| Compliant Standards |
Plug and Play, EN55024, ICES-003 Class B, EN 61000-6-1, EN 61000-6-2, IEC 60068-2-27, IEC 60068-2-6, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-14, IEC 60068-2-78, VCCI Class B, EN 50581, FCC Part 15 Class B, KN35, EN 55032 Class B, EN 62368-1, IEC 62368-1, KCC KN32 Class B, CISPR 32, IEEE 802.3af, IEEE 802.3at, IEC 60529 IP3X |
| Power |
| Power Requirements |
PoE |
| Power Device |
4 Watt |
| Software / System Requirements |
| Software Included |
AXIS Camera Companion, AXIS Camera Station, Windows decoder 1-user licence |
| Manufacturer Warranty |
| Service & Support |
Limited warranty - 3 years |
| Environmental Parameters |
| Min Operating Temperature |
-20 °C |
| Max Operating Temperature |
50 °C |
| Relative Humidity (operating) |
10 - 85% (non-condensing) |
