| Marketing Description |

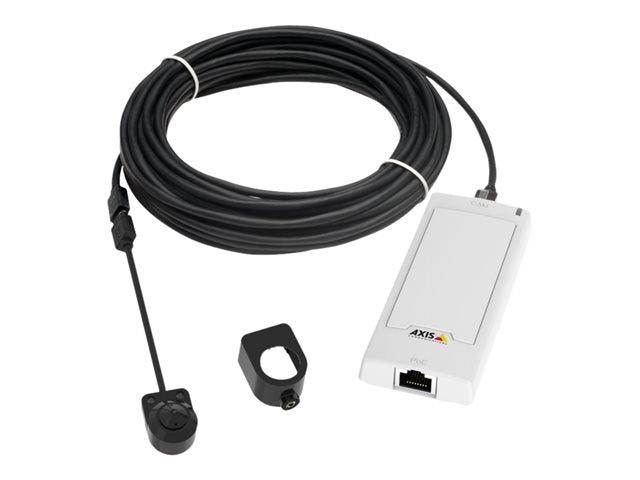

AXIS P1264 network camera is a cost-effective and extremely discreet pinhole camera with high performance. Comprising a sensor unit and a main unit, the indoor camera is ideal for use in stores, ATMs, and ticket, vending and health monitoring machines. The sensor unit can be mounted in tight places, and behind a metal, plastic or glass panel. The sensor unit provides a 57° horizontal field of view and color video in low light. The main unit, with compact dimensions makes it easy to install in tight places. It provides high-quality video and is powered through Power over Ethernet (PoE). It has a built-in microSD card slot for local storage of recordings.
AXIS P1264 supports Axis' Zipstream technology, which is a more efficient implementation of the H.264 video encoder. It can lower bandwidth and storage use for many surveillance scenarios. The encoding technology ensures that important details are maintained while unnecessary data is heavily compressed. |
| Product Features |
-
Extremely discreet installation
AXIS P1264 network camera is a cost-effective and extremely discreet pinhole camera with high performance. Comprising a sensor unit and a main unit, the indoor camera is ideal for use in stores, ATMs, and ticket, vending and health monitoring machines.
-
Pinhole sensor unit
The sensor unit can be mounted in tight places, and behind a metal, plastic or glass panel. The sensor unit provides a 57° horizontal field of view and color video in low light.
-
Compact main unit
The main unit, with compact dimensions makes it easy to install in tight places. It provides high-quality video and is powered through Power over Ethernet (PoE). It has a built-in microSD card slot for local storage of recordings.
-
Savings with Axis' Zipstream technology
AXIS P1264 supports Axis' Zipstream technology, which is a more efficient implementation of the H.264 video encoder. It can lower bandwidth and storage use for many surveillance scenarios. The encoding technology ensures that important details are maintained while unnecessary data is heavily compressed.
|
| General |
| Device Type |
Network surveillance camera |
| Connectivity Technology |
Wired |
| Camera |
| Type |
Colour - fixed |
| Digital Video Format |
MPEG-4, MJPEG, H.264 |
| Max Digital Video Resolution |
1280 x 720 |
| Motion Detection |
Yes |
| Video Modes |
720p |
| Exposure Range |
1/24500 sec - 1/6 sec |
| Minimum Illumination |
0.5 lux - colour |
| Digital Video Capture Resolution |
1280 x 720, 480 x 270 |
| Frame Rate (max) |
30 frames per second |
| RAM |
512 MB |
| Flash Memory |
256 MB |
| Features |
Manual exposure, sharpness control, digital image rotation, white balance, colour control, progressive scanning, brightness control, Power over Ethernet, contrast control, e-mail alerts, image mirror, AXIS Video Hosting System (AVHS), ONVIF support, Privacy Mask Function, multi-streaming, Video Motion Detection Technology, active tampering alarm, password protection, Variable Bitrate (VBR), Zipstream technology |
| Image Sensor |
| Type |
CMOS 1/4" |
| Lens Construction |
| Type |
Fixed focal |
| Focal Length |
3.7 mm |
| Lens Iris |
F/2.5 fixed iris |
| Horizontal Field of View (degree) |
57 - 31 |
| Interfaces |
| Network Interface |
Ethernet 10Base-T/100Base-TX |
| Network Protocols |
DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP 1, SNMP 2c, SNMP 3, SOCKS, RTSP, RTP, HTTPS, UPnP, TLS, IPv4, IPv6, Bonjour, RTCP, SMB, IGMP, SSH, SSL, QOS, CIFS, SFTP |
| Expansion / Connectivity |
| Ports |
LAN/power - RJ-12 |
| Supported Memory Cards |
microSD Card, microSDHC Card, microSDXC Card |
| Miscellaneous |
| Included Accessories |
Mounting kit |
| Cables Included |
1 x data cable - 8 m |
| Compliant Standards |
EN55022 Class B, ICES-003 Class B, UL 60950-1, IEC 60950-1, EN 60950-1, KCC, IEC 60068-2-27, IEC 60068-2-6, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-14, VCCI Class B, RCM, AS/NZS CISPR 22 Class B, FCC Part 15 Class B, KN32, KN35 |
| Power |
| Power Requirements |
PoE Plus |
| Power Device |
4 Watt |
| Manufacturer Warranty |
| Service & Support |
Limited warranty - 3 years |
| Environmental Parameters |
| Min Operating Temperature |
-20 °C |
| Max Operating Temperature |
50 °C |
| Relative Humidity (operating) |
10 - 85% (non-condensing) |
