| Marketing Description |

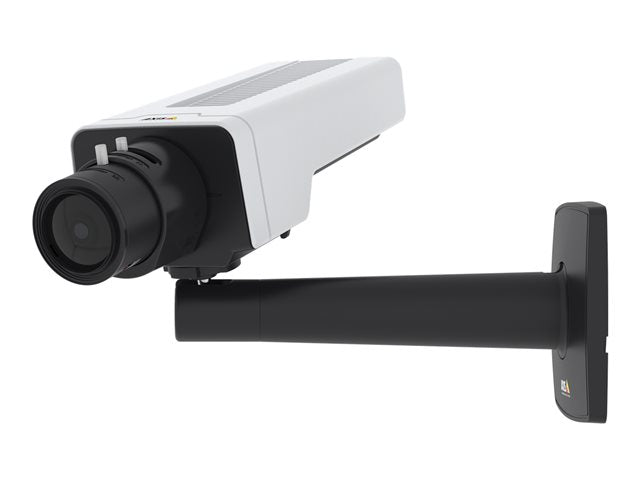

| AXIS P1375 Network Camera offers excellent video quality, even in challenging light conditions, and a high level of defense to protect your system. It's ideal for deterrent surveillance at entrances or open areas in offices, banks and hotels. |
| Product Features |
-
A camera you can count on
Simply put, AXIS P1375 delivers incredible video quality. It has electronic image stabilization for stable images despite vibration, as well as barrel distortion correction and defogging functionality to ensure clear, sharp images no matter what. With scene profiles the camera can be automatically optimized to suit specific scenarios so you get great image quality and cost-effective installation.
-
Keeping you secure
AXIS P1375 is crammed with advanced security functionality to prevent unauthorized access and safeguard your system. Signed firmware and secure boot guarantees that the firmware hasn't been altered and ensures only authorized firmware is installed. And if needed, secure boot guarantees that the camera is completely free of malware after a factory default.
|
| General |
| Device Type |
Network surveillance camera |
| Audio Support |
Yes: two-way audio capability, built-in microphone |
| Audio Formats |
ADPCM, AAC-LC, LPCM, G.711, OPUS |
| Camera Mount Type |
Wall mount |
| Connectivity Technology |
Wired |
| Width |
21.4 cm |
| Depth |
8 cm |
| Height |
5.7 cm |
| Weight |
750 g |
| Camera |
| Type |
Colour - Day&Night - fixed |
| Digital Video Format |
MJPEG, H.264, HEVC, H.265, MPEG-4 AVC |
| Max Digital Video Resolution |
1920 x 1080 |
| Motion Detection |
Yes |
| Video Modes |
1080p |
| Exposure Range |
2 sec - 1/66500 sec |
| Minimum Illumination |
0.05 lux - colour - F1.2 - 50 IRE
0.01 lux - B&W - F1.2 - 50 IRE |
| Digital Video Capture Resolution |
1920 x 1080, 160 x 90 |
| Frame Rate (max) |
60 frames per second |
| RAM |
1 GB |
| Flash Memory |
512 MB |
| Features |
Sharpness control, white balance, saturation control, brightness control, contrast control, e-mail alerts, image mirror, Privacy Mask Function, Video Motion Detection Technology, full duplex audio, Lightfinder technology, active tampering alarm, digital PTZ function, security lock slot (cable lock sold separately), Event Notification, password protection, distortion correction function, shock detection, IR Corrected lens, Audio Detection, Zipstream technology, ONVIF (Profile S) support, ONVIF (Profile G) support, image overlay, exposure control, infrared-cut filter, Forensic WDR, electronic image stabilisation, auto defogging, i-CS lens, ONVIF (Profile T) support |
| Image Sensor |
| Type |
2 MP CMOS 1/2.8" |
| Lens Construction |
| Type |
CS-mount - vari-focal |
| Optical Zoom |
3.6 x |
| Focal Length |
2.8 mm - 10 mm |
| Lens Iris |
F/1.2 (P-Iris) |
| Horizontal Field of View (degree) |
33 - 121 |
| Vertical Field of View (degree) |
19 - 63 |
| Interfaces |
| Network Interface |
Ethernet 10Base-T/100Base-TX/1000Base-T |
| Network Protocols |
DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP 1, SNMP 2c, SNMP 3, SOCKS, RTSP, RTP, HTTPS, UPnP, TLS, IPv4, IPv6, Bonjour, RTCP, SMB, IGMP, SSH, SSL, QOS, CIFS, SRTP, SFTP, LLDP, USGv6 |
| Control Interface |
RS-485, RS-422 |
| Alarm Inputs Qty |
2 |
| Alarm Outputs Qty |
2 |
| Expansion / Connectivity |
| Ports |
LAN/power - RJ-45
Audio line-in/microphone - 3.5 mm jack
Audio line out - 3.5 mm jack
Serial RS-485/RS-422 - terminal block |
| Supported Memory Cards |
microSD Card, microSDHC Card, microSDXC Card |
| Miscellaneous |
| Included Accessories |
Stand, connector kit, Resistorx T20 tool L-key, Torx L-key T6 |
| Compliant Standards |
EN 61000-3-2, EN 61000-3-3, EN55024, EN 61000-6-1, ICES-003 Class A, EN 61000-6-2, FCC Part 15 B Class A, VCCI Class A, RCM, KN35, AS/NZS CISPR 32 Class A, EN 55032 Class A, KCC KN32 Class A, IEC/EN/UL 60950-1, IEEE 802.3af, IEEE 802.3at, NIST SP500-267 |
| Colour |
Black, white |
| Power |
| Power Requirements |
DC 12 - 28 V / PoE+ |
| Power Device |
9.6 Watt |
| Software / System Requirements |
| Software Included |
Windows decoder 1-user licence |
| Manufacturer Warranty |
| Service & Support |
Limited warranty - 3 years |
| Environmental Parameters |
| Min Operating Temperature |
-10 °C |
| Max Operating Temperature |
55 °C |
| Relative Humidity (operating) |
10 - 85% (non-condensing) |
