| Marketing Description |

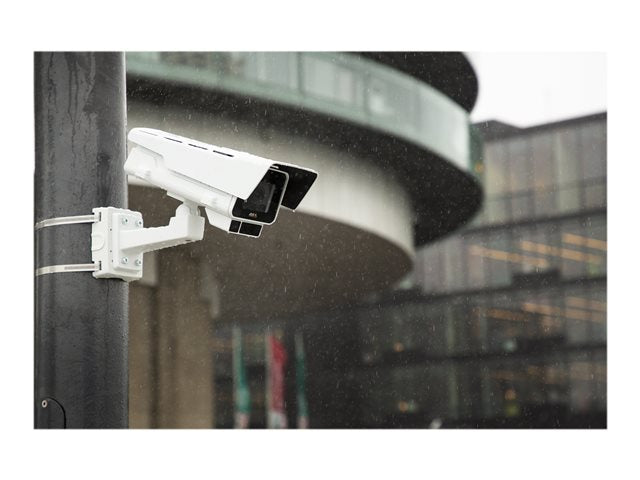

| AXIS P1377-LE Network Camera offers fast performance and sharp images in any day or night scene. This robust, fixed box camera acts as a deterrent and is ideal for surveillance in wide outdoor areas where a high level of detail is needed, such as at airports, cargo areas and public transportation systems. |
| Product Features |
-
Ready for the rough stuff - every time
AXIS P1377-LE captures detailed images of fast-moving objects and people, and it's designed to be reliable in extreme temperatures ranging from -40°C to 60°C (-40°F to 140°F). It offers electronic image stabilization for stable images in situations where the camera is subject to vibrations.
-
Light up the night
AXIS P1377-LE delivers excellent image quality regardless of the light conditions. It offers Axis Forensic WDR for high-quality images even when there's both dark and light areas in the scene and Axis Lightfinder for sharp, color images in poor lighting conditions. It features Axis OptimizedIR for surveillance in pitch darkness up to 80 m or more. The camera is ideal for varous surveillance situations thanks to a CS mount and support for motorized i-CS lenses, enabling remote zoom.
-
Keeping you secure
AXIS P1377-LE is crammed with advanced security functionality to prevent unauthorized access and safeguard your system. Signed firmware and secure boot guarantees that the firmware hasn't been compromised and ensures only authorized firmware is installed. And if needed, secure boot guarantees the camera is completely free of malware after a factory default. For added piece of mind, it offers shock detection as well as a tampering alarm so you can be informed if there's any attempts to interfere with the camera, such as blocking or spray painting. Plus, there's a video streaming indicator making it easy to check that the video is up and running.
|
| General |
| Device Type |
Network surveillance camera |
| Audio Support |
Yes: two-way audio capability |
| Audio Formats |
G.726, ADPCM, AAC-LC, LPCM, G.711, OPUS |
| Camera Mount Type |
Wall mount |
| Connectivity Technology |
Wired |
| Width |
40.4 cm |
| Depth |
15.9 cm |
| Height |
16.8 cm |
| Weight |
2.4 kg |
| Camera |
| Type |
Colour - Day&Night - fixed - outdoor |
| Digital Video Format |
MJPEG, H.264, HEVC, H.265, MPEG-4 AVC |
| Max Digital Video Resolution |
2592 x 1944 |
| Motion Detection |
Yes |
| Video Modes |
720p |
| Exposure Range |
1/5 sec - 1/500000 sec |
| Minimum Illumination |
0.13 lux - colour - F1.2 - 50 IRE
0.03 lux - B&W - F1.2 - 50 IRE
0 lux - IR |
| Infrared LEDs |
Yes |
| Infrared Distance |
50 m |
| Digital Video Capture Resolution |
1280 x 720, 2592 x 1944, 2688 x 1512, 160 x 90 |
| Frame Rate (max) |
30 frames per second |
| RAM |
1 GB |
| Flash Memory |
512 MB |
| Features |
Sharpness control, white balance, saturation control, brightness control, contrast control, e-mail alerts, image mirror, Privacy Mask Function, Video Motion Detection Technology, full duplex audio, Lightfinder technology, active tampering alarm, digital PTZ function, security lock slot (cable lock sold separately), Event Notification, password protection, distortion correction function, shock detection, IR Corrected lens, Audio Detection, Zipstream technology, ONVIF (Profile S) support, ONVIF (Profile G) support, image overlay, exposure control, infrared-cut filter, Forensic WDR, electronic image stabilisation, auto defogging, i-CS lens, ONVIF (Profile T) support |
| Image Sensor |
| Type |
5 MP RGB CMOS 1/2.7" |
| Lens Construction |
| Type |
CS-mount - vari-focal |
| Optical Zoom |
2.8 x |
| Focal Length |
2.8 mm - 8 mm |
| Lens Iris |
F/1.2 (P-Iris) |
| Horizontal Field of View (degree) |
38 - 90 |
| Vertical Field of View (degree) |
28 - 67 |
| Interfaces |
| Network Interface |
Ethernet 10Base-T/100Base-TX/1000Base-T |
| Network Protocols |
DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP 1, SNMP 2c, SNMP 3, SOCKS, RTSP, RTP, HTTPS, UPnP, TLS, IPv4, IPv6, Bonjour, RTCP, SMB, IGMP, SSH, SSL, QOS, CIFS, SRTP, SFTP, LLDP, USGv6 |
| Control Interface |
RS-485, RS-422 |
| Alarm Inputs Qty |
2 |
| Alarm Outputs Qty |
2 |
| Expansion / Connectivity |
| Ports |
LAN/power - RJ-45
Audio line-in/microphone - 3.5 mm jack
Audio line out - 3.5 mm jack
Serial RS-485/RS-422 - terminal block |
| Supported Memory Cards |
microSD Card, microSDHC Card, microSDXC Card |
| Miscellaneous |
| Included Accessories |
Wall mount bracket, connector kit, P13 Weathershield Kit A, IK10 tool, Torx T20 screw driver, Torx T30 screw bit, fixed box IR illuminator kit |
| Compliant Standards |
EN 61000-3-2, EN 61000-3-3, EN55024, EN 61000-6-1, ICES-003 Class A, EN 61000-6-2, IEC 60068-2-6, IP67, IK10, FCC Part 15 B Class A, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-14, IEC 60068-2-78, EN 50121-4, IEC 62236-4, VCCI Class A, NEMA TS-2, RCM, EN 60529, IEC 62471, IEC 60529, KN35, NEMA250 Type 4X, AS/NZS CISPR 32 Class A, EN 55032 Class A, KCC KN32 Class A, IEC/EN/UL 60950-22, IEEE 802.3af, IEEE 802.3at, IEC/EN 62262, IEC/EN/UL 62368-1, IEC/EN 60529 IP66, IEEE 802.1x, NIST SP500-267 |
| Colour |
Black, white |
| Power |
| Power Requirements |
DC 12 - 28 V / PoE+ |
| Power Device |
20.4 Watt |
| Software / System Requirements |
| Software Included |
Windows decoder 1-user licence |
| Manufacturer Warranty |
| Service & Support |
Limited warranty - 3 years |
| Environmental Parameters |
| Min Operating Temperature |
-40 °C |
| Max Operating Temperature |
60 °C |
| Relative Humidity (operating) |
10 - 100% |
