| Marketing Description |

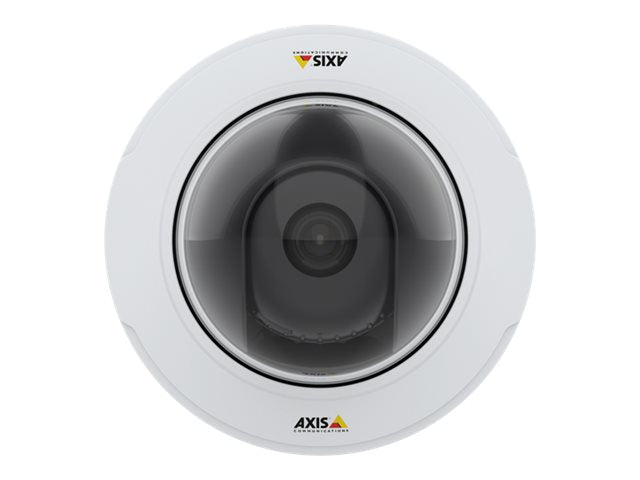

| AXIS P3245-V is a robust and discreet fixed dome network camera that delivers HDTV under any light conditions. This streamlined camera offers flexible, cost-efficient installation making it ideal for various surveillance situations, such as in retail, banking and office environments. |
| Product Features |
-
Never miss a beat
AXIS P3245-V has powerful capacity for analytics. It features lightfinder 2.0 providing increased light sensitivity to capture video with more life-like colors and sharp video of moving objects. Even the darkest areas of the scene will be lighter, more colorful and disclose more details.
-
Keeping you secure
AXIS P3245-V is packed with advanced security functionality to prevent unauthorized access and safeguard your system. Signed firmware and secure boot guarantee that the firmware hasn't been compromised and ensure only authorized firmware is installed.
|
| General |
| Device Type |
Network surveillance camera |
| Audio Formats |
PCM, G.726, ADPCM, AAC-LC, LPCM, G.711, OPUS |
| Form Factor |
Dome |
| Camera Mount Type |
Wall mount, ceiling mount |
| Connectivity Technology |
Wired |
| Width |
14.9 cm |
| Depth |
14.9 cm |
| Height |
10.3 cm |
| Weight |
650 g |
| Camera |
| Type |
Colour - Day&Night - fixed |
| Digital Video Format |
MJPEG, H.264, MPEG-4 AVC |
| Max Digital Video Resolution |
1920 x 1080 |
| Motion Detection |
Yes |
| Video Modes |
1080p |
| Exposure Range |
2 sec - 1/66500 sec |
| Minimum Illumination |
0.1 lux - colour - F1.8 - 50 IRE
0.02 lux - B&W - F1.8 - 50 IRE |
| Digital Video Capture Resolution |
1920 x 1080, 160 x 90 |
| Frame Rate (max) |
60 frames per second |
| RAM |
512 MB |
| Flash Memory |
1 GB |
| Features |
Sharpness control, white balance, colour control, progressive scanning, brightness control, contrast control, Wide Dynamic Range (WDR), built-in IR illuminator, full duplex audio, Lightfinder technology, active tampering alarm, digital PTZ function, password protection, IR Corrected lens, Audio Detection, OptimizedIR, Zipstream technology, remote focus, ONVIF (Profile S) support, ONVIF (Profile G) support, exposure control, Pixel Counter Support, infrared-cut filter, IP address filtering, exposure zone |
| Image Sensor |
| Type |
RGB CMOS 1/2.8" |
| Lens Construction |
| Optical Zoom |
2.6 x |
| Focal Length |
3.4 mm - 8.9 mm |
| Lens Iris |
F/1.8 auto iris (P-Iris) |
| Horizontal Field of View (degree) |
36 - 100 |
| Vertical Field of View (degree) |
20 - 53 |
| Panning |
| Range (degree) |
-180 to +180 |
| Tilting |
| Range (degree) |
-75 to +75 |
| Interfaces |
| Network Interface |
Ethernet 10Base-T/100Base-TX |
| Network Protocols |
DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP 1, SNMP 2c, SNMP 3, SOCKS, RTSP, RTP, HTTPS, UPnP, TLS, IPv4, IPv6, Bonjour, RTCP, SMB, IGMP, SSH, SSL, QOS, CIFS, SRTP, SFTP, LLDP |
| Expansion / Connectivity |
| Ports |
LAN/power - RJ-45 |
| Supported Memory Cards |
microSD Card, microSDHC Card, microSDXC Card |
| Miscellaneous |
| Included Accessories |
Cable gaskets, drill hole template, Resistorx T20 tool L-key, connector guard |
| Compliant Standards |
EN55024, EN 61000-6-1, ICES-003 Class A, EN 61000-6-2, IEC 60068-2-30, IEC 60068-2-27, IEC 60068-2-6, IK10, IP52, FCC Part 15 B Class A, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-14, IEC 60068-2-78, EN 50121-4, IEC 62236-4, VCCI Class A, RCM, EN 55032 Class A, IEC/EN/UL 60950-1, IEC/EN/UL 60950-22, IEC/EN 62471, IEEE 802.3af, IEEE 802.3at, AS/NZS CISPR22 Class A, IEEE 802.1x |
| Colour |
White |
| Power |
| Power Requirements |
DC 12 V / PoE Plus |
| Power Device |
5.7 Watt |
| Software / System Requirements |
| Software Included |
Windows decoder 1-user licence |
| Manufacturer Warranty |
| Service & Support |
Limited warranty - 3 years |
| Environmental Parameters |
| Min Operating Temperature |
0 °C |
| Max Operating Temperature |
50 °C |
| Relative Humidity (operating) |
10 - 85% (non-condensing) |
