| Marketing Description |

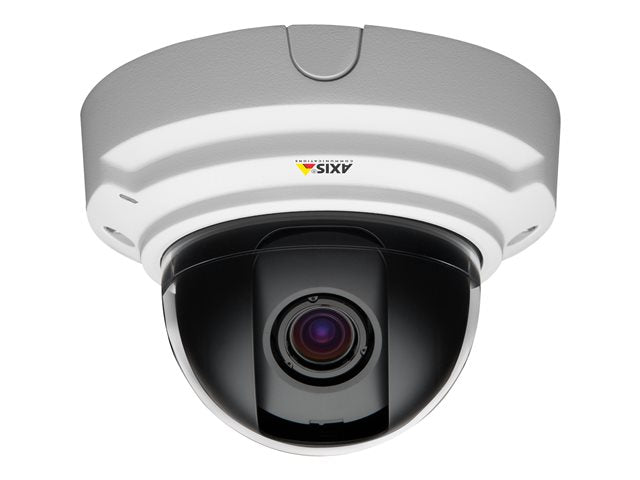

The indoor AXIS P3367-V network camera, vandal-resistant, is suitable for any application that requires video surveillance coverage of a large area or extremely high image detail in a limited area. Examples include airport halls, train stations, parking lots, city surveillance, school halls and campuses.
The day and night fixed dome delivers 5-megapixel resolution video at 12 frames per second and support HDTV 1080p video at 30 frames per second. To help minimize bandwidth and storage needs, AXIS P3367-V camera features H.264 video compression, powerful digital pan/tilt/zoom capabilities and multi-view streaming, which enables cropped areas of interest to be streamed simultaneously instead of the full view. AXIS P3367-V can be installed easily and quickly through the combination of smart features such as remote zoom for adjusting the angle of view over the network and remote focus that eliminates the need for manual focusing. |
| Product Features |
- High-performance video including HDTV quality
- Multiple H.264 video streams
- Easy installation with remote focus and zoom
- Power over Ethernet
|
| General |
| Device Type |
Network surveillance camera |
| Audio Support |
Yes: two-way audio capability |
| Form Factor |
Dome |
| Connectivity Technology |
Wired |
| Width |
14.8 cm |
| Depth |
14.8 cm |
| Height |
10.4 cm |
| Weight |
730 g |
| Camera |
| Type |
Colour - Day&Night - fixed - vandal-proof |
| Digital Video Format |
MJPEG, H.264 |
| Max Digital Video Resolution |
2592 x 1944 |
| Exposure Range |
1/28000 sec - 2 sec |
| Minimum Illumination |
0.2 lux - colour - F1.2
0.04 lux - B&W - F1.2 |
| Video Capture |
2048 x 1536 @ 20 fps
1920 x 1080 @ 30 fps
1600 x 1200 @ 30 fps
2592 x 1944 @ 12 fps |
| RAM |
512 MB |
| Flash Memory |
128 MB |
| Features |
Exposure compensation, manual white balance, motion sensor, Backlight Compensation (BLC), sharpness control, digital image rotation, white balance, colour control, progressive scanning, brightness control, Power over Ethernet, contrast control, e-mail alerts, image mirror, Wide Dynamic Range (WDR), SDHC-card slot, AXIS Video Hosting System (AVHS), Open Network Video Interface Forum (ONVIF), infrared cut filter, P-Iris control, Audio Detect, digital PTZ function |
| Image Sensor |
| Type |
5 MP CMOS 1/3.2" |
| Lens Construction |
| Type |
Vari-focal |
| Optical Zoom |
3 x |
| Focal Length |
3 mm - 9 mm |
| Lens Iris |
F/1.2 auto iris |
| Horizontal Field of View (degree) |
30 - 84 |
| Panning |
| Range (degree) |
360 |
| Tilting |
| Range (degree) |
160 |
| Interfaces |
| Network Interface |
Ethernet 10Base-T/100Base-TX |
| Network Protocols |
DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP 1, SNMP 2c, SNMP 3, SOCKS, RTSP, RTP, HTTPS, UPnP, TLS, IPv4, IPv6, Bonjour, RTCP, SMB, IGMP, SSL, QOS, CIFS |
| Alarm Inputs Qty |
1 |
| Alarm Outputs Qty |
1 |
| Expansion / Connectivity |
| Supported Memory Cards |
SD Memory Card, SDXC Memory Card, SDHC Memory Card |
| Miscellaneous |
| Included Accessories |
Clear dome cover, smoked dome cover, mounting kit |
| Compliant Standards |
C-Tick, VCCI Class B ITE, EN 61000-3-2, EN 61000-3-3, EN55024, CISPR 22, EN55022 Class B, ICES-003 Class B, FCC Part 15 B, EN 60950-1, IK10 |
| Power |
| Power Requirements |
PoE |
| Software / System Requirements |
| Software Included |
Drivers & Utilities |
| Manufacturer Warranty |
| Service & Support |
Limited warranty - 3 years |
| Environmental Parameters |
| Min Operating Temperature |
0 °C |
| Max Operating Temperature |
50 °C |
| Relative Humidity (operating) |
15 - 85% (non-condensing) |
