| Marketing Description |

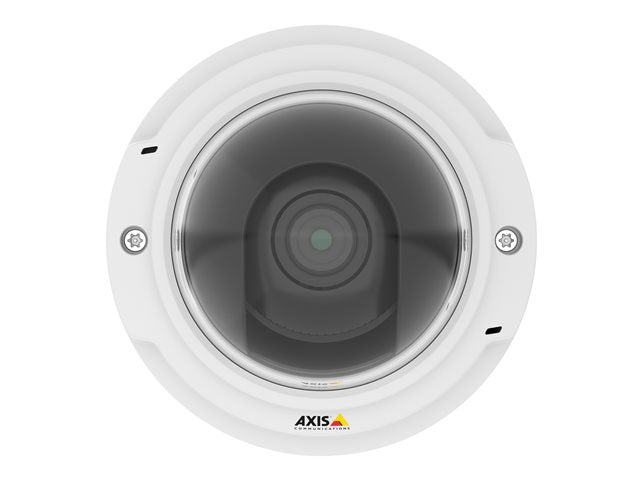

| AXIS P3374-V is a fixed dome camera in a classic design that features up-to-the-minute Axis technology. A perfect complement to, or replacement for, your legacy P33 series cameras, it reliably delivers superb image quality at an affordable price. P3374-V is excellent for identifying people, objects and vehicles in any application where an unobtrusive dome is appropriate. |
| Product Features |
-
Don't miss a thing
With WDR - forensic capture, which preserves forensic detail when there are both light and dark areas in a scene. And Axis Lightfinder technology for sharp, color images in poor light conditions. P3374-V delivers superb 720p image usability.
-
A cost-efficient camera you can count on
P3374-V offers remote zoom and focus for fast, easy installation, which helps keep your set-up costs down. It's compatible with all your P33 series accessories and mounts. And it features Axis Zipstream technology, which preserves important details in full image quality, while reducing storage and bandwidth by up to 50% for high-quality images, and significant savings. Plus, IK10-certified housing makes P3374-V vandal and impact resistant - and dependable.
|
| General |
| Device Type |
Network surveillance camera |
| Audio Support |
Yes: two-way audio capability, built-in microphone |
| Form Factor |
Dome |
| Connectivity Technology |
Wired |
| Width |
14.8 cm |
| Depth |
14.8 cm |
| Height |
9.9 cm |
| Weight |
700 g |
| Camera |
| Type |
Colour - Day&Night - fixed - vandal-proof |
| Digital Video Format |
MPEG-4, MJPEG, H.264, AVC |
| Max Digital Video Resolution |
1280 x 720 |
| Motion Detection |
Yes |
| Video Modes |
720p |
| Exposure Range |
1 sec - 1/66500 sec |
| Minimum Illumination |
0.15 lux - colour - F1.4
0.03 lux - B&W - F1.4 |
| Digital Video Capture Resolution |
1280 x 720, 160 x 90 |
| Frame Rate (max) |
60 frames per second |
| RAM |
512 MB |
| Flash Memory |
256 MB |
| Features |
Sharpness control, white balance, brightness control, contrast control, image mirror, Wide Dynamic Range (WDR), Privacy Mask Function, Video Motion Detection Technology, Lightfinder technology, active tampering alarm, digital PTZ function, password protection, IR Corrected lens, Variable Bitrate (VBR), Audio Detection, auto gain control, Zipstream technology, remote focus, image overlay, exposure control, Pixel Counter Support, infrared-cut filter, IP address filtering |
| Image Sensor |
| Type |
CMOS 1/3" |
| Lens Construction |
| Type |
Vari-focal |
| Optical Zoom |
3.3 x |
| Focal Length |
3 mm - 10 mm |
| Lens Iris |
F/1.4 (P-Iris) |
| Horizontal Field of View (degree) |
34 - 90 |
| Vertical Field of View (degree) |
20 - 50 |
| Panning |
| Range (degree) |
360 |
| Tilting |
| Range (degree) |
-20 to +80 |
| Interfaces |
| Network Interface |
Ethernet 10Base-T/100Base-TX |
| Network Protocols |
DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP 1, SNMP 2c, SNMP 3, SOCKS, RTSP, RTP, HTTPS, UPnP, TLS, IPv4, IPv6, Bonjour, RTCP, SMB, IGMP, SSH, SSL, QOS, CIFS, SFTP |
| Alarm Inputs Qty |
1 |
| Alarm Outputs Qty |
1 |
| Expansion / Connectivity |
| Ports |
LAN/power - RJ-45
Audio line-in/microphone - 3.5 mm jack
Audio line out - 3.5 mm jack |
| Supported Memory Cards |
SD Memory Card, microSD Card, microSDHC Card, microSDXC Card |
| Miscellaneous |
| Included Accessories |
Drill hole template, Resistorx T20 tool L-key, I/O connector |
| Compliant Standards |
EN55024, EN 61000-6-1, ICES-003 Class A, EN 61000-6-2, IEC 60068-2-27, IEC 60068-2-6, FCC Part 15 B Class A, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-14, IEC 60068-2-78, IEC 62262 IK10, VCCI Class A, EN 50581, KN35, AS/NZS CISPR 32 Class A, EN 55032 Class A, KCC KN32 Class A, IEEE 802.3af, IEEE 802.3at, IEC/EN/UL 62368-1 |
| Colour |
White |
| Power |
| Power Requirements |
PoE |
| Power Device |
3.9 Watt |
| Software / System Requirements |
| Software Included |
Windows decoder 1-user licence |
| Manufacturer Warranty |
| Service & Support |
Limited warranty - 3 years |
| Environmental Parameters |
| Min Operating Temperature |
0 °C |
| Max Operating Temperature |
50 °C |
| Relative Humidity (operating) |
10 - 85% (non-condensing) |
