| Marketing Description |

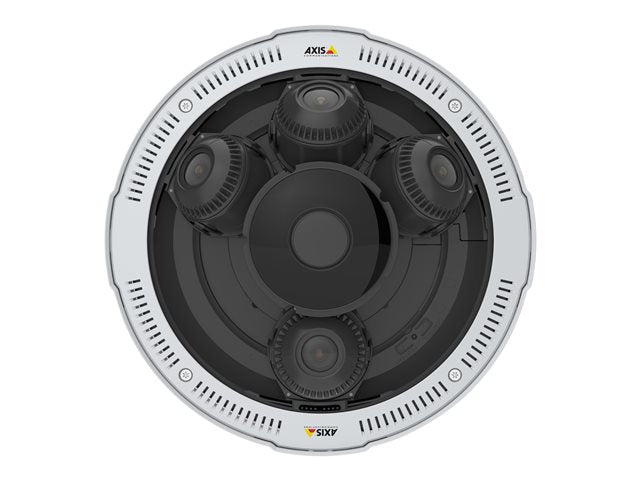

| AXIS P3717-PLE lets you easily cover four different areas with a single camera, around the clock and even in challenging lighting. You'll be able to count on both excellent overviews and detailed coverage thanks to the brilliant design of this cost-effective solution. |
| Product Features |
-
Wide areas and great images - day and night
AXIS P3717-PLE offers four channels with 2MP per channel, at a frame rate of 30 fps. And forensic WDR for clarity when there are both dark and light areas in the scene. Plus, AXIS P3717-PLE has 360° IR illumination with individually controllable LEDs and an automatic IR cut filter. So you'll enjoy clear, reflection-free footage in low light or complete darkness and undistorted color during the day.
-
One camera for the coverage of four
The beauty of AXIS P3717-PLE lies in its design, with four varifocal camera heads that can be moved and rotated to capture scenes in various directions in wide or zoomed-in views. AXIS P3717-PLE delivers a 360° overview or a combination of overviews and close-ups depending on your needs.
|
| General |
| Device Type |
Panoramic camera |
| Form Factor |
Dome |
| Connectivity Technology |
Wired |
| Width |
25.5 cm |
| Depth |
25.5 cm |
| Height |
9.15 cm |
| Weight |
2 kg |
| Camera |
| Type |
Colour - Day&Night - fixed |
| Digital Video Format |
MJPEG, H.264, MPEG-4 AVC |
| Max Digital Video Resolution |
1920 x 1080 |
| Motion Detection |
Yes |
| Video Modes |
1080p |
| Exposure Range |
2 sec - 1/32500 sec |
| Minimum Illumination |
0.17 lux - colour - F1.8 - 50 IRE
0.04 lux - B&W - F1.8 - 50 IRE
0 lux - IR |
| Infrared LEDs |
Yes |
| Infrared Distance |
15 m |
| Video Capture |
1920 x 1080 @ 30 fps |
| RAM |
1 GB |
| Flash Memory |
512 MB |
| Features |
Sharpness control, white balance, saturation control, brightness control, contrast control, Privacy Mask Function, Event Notification, image overlay, exposure control, infrared-cut filter, Forensic WDR, exposure zone |
| Image Sensor |
| Type |
8 MP 4CMOS 4 x 1/2.8" |
| Lens Construction |
| Type |
Vari-focal |
| Optical Zoom |
2 x |
| Focal Length |
3 mm - 6 mm |
| Lens Iris |
F/1.8-2.6 |
| Focus Adjustment |
Motorised |
| Horizontal Field of View (degree) |
49 - 96 |
| Vertical Field of View (degree) |
27 - 53 |
| Panning |
| Range (degree) |
-90 to +90 |
| Tilting |
| Range (degree) |
17 to 102 |
| Interfaces |
| Network Interface |
Ethernet 10Base-T/100Base-TX |
| Network Protocols |
DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP 1, SNMP 2c, SNMP 3, SOCKS, RTSP, RTP, HTTPS, UPnP, TLS, IPv4, IPv6, Bonjour, RTCP, SMB, IGMP, SSH, SSL, QOS, CIFS, SFTP |
| Expansion / Connectivity |
| Ports |
LAN/power - RJ-45 |
| Supported Memory Cards |
microSD Card, microSDHC Card, microSDXC Card |
| Miscellaneous |
| Included Accessories |
Screw bit T20 |
| Compliant Standards |
EN 61000-3-2, EN 61000-3-3, EN55024, EN 61000-6-1, ICES-003 Class A, EN 61000-6-2, IEC 60068-2-27, IEC 60068-2-6, IP67, FCC Part 15 B Class A, IP66, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-14, IEC 60068-2-78, EN 50121-4, IEC 62236-4, VCCI Class A, RCM, IK09, IEC 62471, IEC EN60529, NEMA250 Type 4X, AS/NZS CISPR 32 Class A, EN 55032 Class A, KCC KN32 Class A, IEC/EN/UL 60950-22, IEEE 802.3at, KCC KN35, IEC/EN 62262, IEC/EN/UL 62368-1, IEEE 802.1x |
| Power |
| Power Requirements |
PoE Plus Class 4 |
| Power Device |
17 Watt |
| Software / System Requirements |
| Software Included |
Windows decoder 1-user licence |
| Manufacturer Warranty |
| Service & Support |
Limited warranty - 3 years |
| Environmental Parameters |
| Min Operating Temperature |
-30 °C |
| Max Operating Temperature |
50 °C |
| Relative Humidity (operating) |
10 - 100% |
