| Marketing Description |

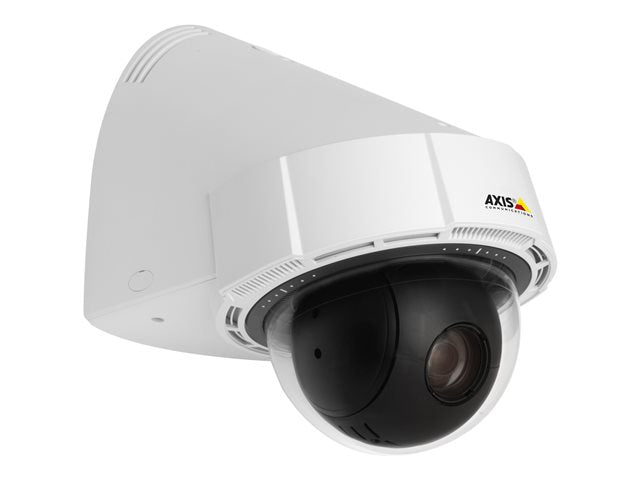

AXIS P5414 - E PTZ Dome Network Camera is an attractively priced, outdoor-ready HDTV 720p PTZ dome with 18x optical zoom for wall-mount surveillance installations. Designed to blend in with the environment, the camera is ideal for use in city and perimeter surveillance, parking houses and school yards.
The camera's built-in wall bracket enables easy installation and lowers total installation costs since a separate mounting accessory is not required. The integrated sunshield can be easily removed and repainted to match the color of a building facade. The sloping form helps the camera resist attempts by vandals to pull it down with a rope. |
| Product Features |
-
Durable, low-maintenance mechanics
AXIS P5414 - E's innovations extend inside as well. It has a direct drive pan/tilt system that enables unsurpassed endurance. With no belts or gears, AXIS P5414 - E is a reliable, low-maintenance PTZ camera.
-
Detailed zoomed-in views
The 18x optical zoom with autofocus, in combination with the HDTV 720p resolution, provides highly detailed zoomed-in views. In low light or night-time conditions, the camera's automatic day/night functionality enables it to make use of infrared light from available light sources to produce high quality black and white video. When mounted on the corner of a building, AXIS P5414 - E enables a 270° pan for wide area coverage. Support for Advanced Gatekeeper enables the camera to automatically pan, tilt and zoom in to a preset position when motion is detected in a predefined area.
-
Two-way audio & I/Os
The camera has a hidden junction box that supports two-way audio, a memory card slot, four configurable inputs/outputs to external devices, and the option of using either 24 V DC or Power over Ethernet Plus (IEEE 802.3at).
-
Hidden and waterproof junction box
The waterproof IP66-rated junction box contains an RJ45 connector for network connection and power using Power over Ethernet Plus (PoE+).
-
Easy to install; blends in with environment
AXIS P5414-E comes with a built-in wall bracket for easy installation. Oblong screw holes make leveling easier. Extra space is provided for service loops and there are holes for cables. With a lift-off hinge, the camera, together with the integrated sunshield, is easily hung onto the wall bracket, freeing up hands to make cable connections. The hinge allows the camera unit to swing in and be fastened with three screws. Shaped like a lamp, the camera's sloping form not only makes it more discreet, but also hinders attempts by vandals to pull it down with a rope. The sunshield covers the entire camera and can be easily removed into two parts and repainted to match the wall color. Air vents in the sunshield are designed to prevent the entry of wasps and other big insects.
-
Unsurpassed mechanical endurance
AXIS P5414-E is directly attached to the drive shaft of two motors - one for panning and another for tilting the camera. With no parts such as belts or gears, AXIS P5414-E's durable pan/tilt system is fast and provides customers with a reliable, low-maintenance PTZ camera.
|
| General |
| Device Type |
Network surveillance camera |
| Audio Support |
Yes: two-way audio capability |
| Camera Mount Type |
Wall mount |
| Connectivity Technology |
Wired |
| Weight |
3.5 kg |
| Camera |
| Type |
Colour - Day&Night - pan / tilt / zoom - outdoor - vandal / waterproof |
| Digital Video Format |
MJPEG, H.264 |
| Max Digital Video Resolution |
1280 x 720 |
| Digital Zoom |
12 |
| Exposure Range |
2 sec - 1/28000 sec |
| Minimum Illumination |
0.4 lux - colour - F1.6 - 30 IRE
0.04 lux - B&W - F1.6 - 30 IRE |
| RAM |
256 MB |
| Flash Memory |
128 MB |
| Features |
Backlight Compensation (BLC), manual exposure, sharpness control, white balance, colour control, progressive scanning, brightness control, contrast control, ONVIF support, Advanced Gatekeeper, infrared cut filter, 3D Privacy Mask Function, text stamp, SDXC-card slot |
| Image Sensor |
| Type |
CMOS 1/2.9" |
| Lens Construction |
| Optical Zoom |
18 x |
| Focal Length |
4.7 mm - 84.6 mm |
| Lens Iris |
F/1.6-2.8 |
| Focus Adjustment |
Automatic |
| Horizontal Field of View (degree) |
4 - 59 |
| Panning |
| Range (degree) |
-135 to +135 |
| Speed (degree/sec) |
Up to 350 |
| Tilting |
| Range (degree) |
0 to 90 |
| Speed (degree/sec) |
Up to 350 |
| Interfaces |
| Network Interface |
Ethernet 10Base-T/100Base-TX |
| Network Protocols |
DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP 1, SNMP 2c, SNMP 3, SOCKS, RTSP, RTP, HTTPS, UPnP, TLS, IPv4, IPv6, Bonjour, RTCP, SMB, IGMP, SSL, QOS, CIFS |
| Expansion / Connectivity |
| Interfaces |
1 x network / power - Ethernet 10Base-T/100Base-TX - RJ-45
1 x microphone - input - mini-phone 3.5 mm
1 x audio - output - mini-phone 3.5 mm |
| Miscellaneous |
| Included Accessories |
Clear dome cover, sunshield |
| Compliant Standards |
C-Tick, CISPR 22 Class B, EN55024, IEC 60529 IP66, EN55022 Class B, ICES-003 Class B, EN 61000-6-1, NEMA Type 4X, EN 61000-6-2, UL 60950-1, IEC 60950-1, EN 60950-1, IEC 60068-2-30, IEC 60068-2-27, IEC 60068-2-6, FCC CFR47 Part 15 B, KCC Class B, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-14, IEC 60068-2-78, ISO 4892-2, EN 50121-4, IEC 62236-4, VCCI Class B, EN 50581, KN24 |
| Power |
| Power Requirements |
DC 24 V / PoE Plus |
| Software / System Requirements |
| Software Included |
Drivers & Utilities |
| Manufacturer Warranty |
| Service & Support |
Limited warranty - 3 years |
| Environmental Parameters |
| Min Operating Temperature |
-20 °C |
| Max Operating Temperature |
50 °C |
| Relative Humidity (operating) |
10 - 100% |
