| Marketing Description |
| With AXIS P7304 Video Encoder you can migrate to IP surveillance at your own pace. |
| Product Features |
-
Everything you need and more

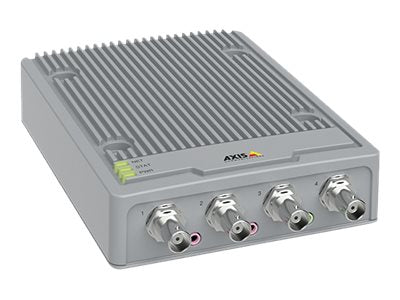

AXIS P7304 is a full-featured four-channel video encoder with great video performance. This encoder supports HD analog (high definition TVI, high definition CVI and analog HD) and standard resolution analog cameras. It offers support for two-way audio and intelligent analytics such as motion detection, as well as audio detection with analog and digital AXIS T83 microphones. It features RS-485/422 for controlling analog PTZ (pan/tilt/zoom) cameras. It provides edge storage through a microSDHC memory card slot. And, thanks to configurable input/outputs you can connect external devices such as sensors, relays and speakers to activate lights, open/close doors and trigger audio clips.
-
Seamless migration to IP surveillance
Axis video encoders allows you to migrate to the world of IP surveillance while protecting your investment in analog equipment, so you get to keep all your existing cameras and cabling. And, thanks to support for Power over Ethernet (PoE) you can connect directly to your IP network with just one network cable for connectivity and power. Furthermore, this flexible solution lets you choose between saving the recordings on a server, on the edge or in the cloud.
|
| General |
| Device Type |
Video server |
| Video Channels |
4 |
| Audio Channels |
1 |
| TV System |
NTSC/PAL |
| Image Resolution |
176x120 (NTSC), 1280x720, 1920x1080, 720x480 (NTSC), 720x576 (PAL), 176x144 (PAL) |
| Compression Format |
MPEG-4, ADPCM, G.711, G.726, H.264, AAC, PCM, H.265, HEVC, AVC |
| Package Content |
Input plug, 6-pin I/O plug, 2 x 2-pin RS485/RS422 plugs |
| Software Included (Y) |
Windows decoder 1-user licence |
| Compliant Standards |
EN 61000-3-2, EN 61000-3-3, EN55024, EN 61000-6-1, ICES-003 Class A, EN 61000-6-2, IEC 60068-2-27, IEC 60068-2-6, FCC Part 15 B Class A, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-14, IEC 60068-2-78, KC, IP30, VCCI Class A, RCM, NIST, KN35, AS/NZS CISPR 32 Class A, KN32 Class A, EN 62368-1, IEC 62368-1, EN 55032 Class A, IEEE 802.3af, IEEE 802.3at, IEEE 802.1x, NIST SP500-267 |
| Warranty |
3 years |
| Video Server |
| Frame Rate |
30 fps |
| RAM |
1 GB |
| Flash Memory |
512 MB |
| Features |
Two-way audio support, microSD/SDHC/SDXC memory card slot, Zipstream |
| Networking |
| DDNS Support |
Yes |
| Web Server |
Yes |
| Network Interfaces |
Ethernet 10Base-T/100Base-TX/1000Base-T |
| Supported Protocols |
DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP 1, SNMP 2c, SNMP 3, SOCKS, RTSP, RTP, HTTPS, UPnP, TLS, IPv4, IPv6, Bonjour, RTCP, SMB, IGMP, SSH, SSL, QOS, CIFS, SRTP, SFTP, USGv6 |
| Features |
DiffServ support |
| Connections |
| Video Input Ports |
BNC x 4 |
| Audio Input Ports |
Mini-phone 3.5mm x 2 |
| Audio Output Ports |
Mini-phone 3.5 mm x 1 |
| Camera Control Interface (PTZ) |
RS-422/485 |
| Network Port |
10/100/1000Base-T (PoE+) |
| Power |
| Voltage |
8 - 28 V |
| Power Consumption |
8.2 Watt |
| Dimensions & Weight |
| Width |
18.7 cm |
| Depth |
3.7 cm |
| Weight |
650 g |
| Environmental Parameters |
| Min Operating Temperature |
0 °C |
| Max Operating Temperature |
50 °C |
| Humidity Range Operating |
10 - 85% (non-condensing) |
