| Marketing Description |

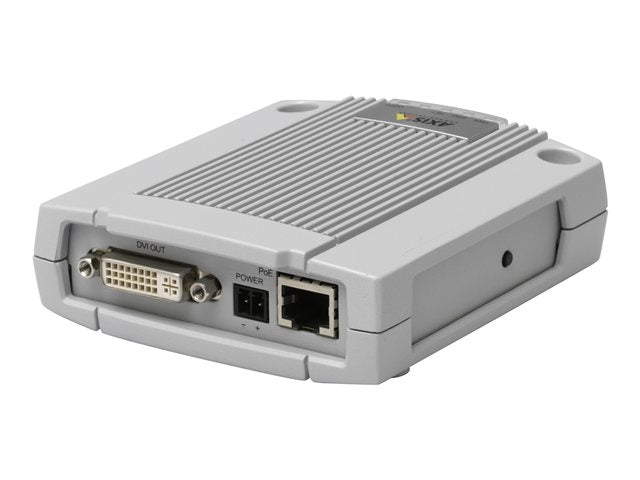

| The AXIS P7701 Video Decoder provides a simple monitoring solution by enabling analog or digital monitors/projectors to connect to and display live video from Axis network cameras and video encoders. In situations where only live video display is required - such as with a public view monitor at a store entrance, AXIS P7701 offers a more cost-effective solution than using a PC for connecting a monitor. AXIS P7701 can also complement a video management system by helping to offload the main server from decoding digital streams simply for display purposes. |
| Product Features |
-
Simple monitoring solution for Axis network video products
The AXIS P7701 Video Decoder provides a simple monitoring solution by enabling analog or digital monitors/projectors to connect to and display live video from Axis network cameras and video encoders. In situations where only live video display is required - such as with a public view monitor at a store entrance, AXIS P7701 offers a more cost-effective solution than using a PC for connecting a monitor. AXIS P7701 can also complement a video management system by helping to offload the main server from decoding digital streams simply for display purposes.
-
Full frame rate video decoding of H.264, MPEG-4 and motion JPEG
AXIS P7701 can decode full frame rate video streams in H.264 and MPEG-4 in all resolutions up to D1. Motion JPEG can be decoded in all resolutions up to 720p (1280 x 720). The video decoder can provide either digital or analog video output. Video from any number of cameras can be shown in sequence.
-
Alarm-triggered video and high-quality audio
When an alarm is triggered in a network camera or video encoder, AXIS P7701 can be configured to automatically display alarm-triggered video. AXIS P7701 also decodes mono audio. The video decoder can be powered either through Power over Ethernet or through an external power supply.
|
| General |
| Device Type |
Video decoder |
| Video Channels |
1 |
| Audio Channels |
1 |
| TV System |
NTSC/PAL |
| Image Resolution |
720x480 (NTSC), 720x576 (PAL) |
| Compression Format |
MJPEG, MPEG-4, G.711, G.726, H.264, AAC |
| Package Content |
Manual, external power adapter, software, video server, mounting kit, connector kit |
| Software Included (Y) |
Drivers & Utilities |
| Country Kits |
United Kingdom, Europe |
| Compliant Standards |
C-Tick, VCCI Class B ITE, EN 61000-3-2, EN 61000-3-3, EN55024, CISPR 22, EN55022 Class B, ICES-003 Class B, EN 61000-6-1, FCC Part 15 B, EN 61000-6-2, EN 60950-1 |
| Networking |
| DDNS Support |
Yes |
| Web Server |
Yes |
| Supported Protocols |
DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, HTTP over SSL, SNMP 1, SNMP 2c, SNMP 3, RTSP, RTP, Bonjour, RTCP, IGMP |
| Features |
Power over Ethernet (PoE), IP address filtering |
| Connections |
| Video Output Ports |
DVI-I x 1, RCA x 1 |
| Audio Output Ports |
Mini-phone 3.5 mm x 1 |
| Camera Control Interface (PTZ) |
RS-422/485 |
| Network Port |
10/100Base-T |
| Power |
| Power Consumption |
8.3 Watt |
| Dimensions & Weight |
| Width |
9.9 cm |
| Depth |
11.8 cm |
| Height |
3.2 cm |
| Weight |
320 g |
| Environmental Parameters |
| Min Operating Temperature |
0 °C |
| Max Operating Temperature |
50 °C |
| Humidity Range Operating |
20 - 80% |
