| Marketing Description |

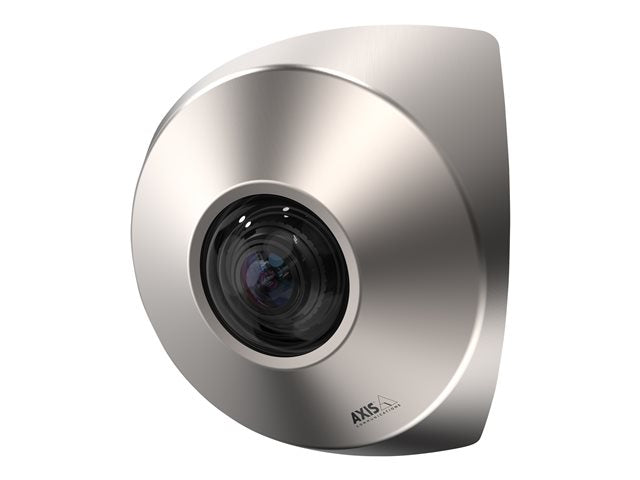

| AXIS P9106-V is a compact and discreet camera delivering up to 3 MP resolution. Installation is quick and easy with out-of-the-box optimized corner-to-corner coverage to save time and costs. Even in scenes with strong backlight, the combination of WDR and Zipstream means all the important details can be captured while lowering bandwidth and storage requirements by 50% or more. |
| Product Features |
-
Compact, safe and stylish
AXIS P9106-V network cameras can cover up to 130 degrees horizontally and 95 degrees vertically, without blind spots. These cameras are resistant to shock and vibration and are delivered factory-focused so there's no manual focusing or lens adjustment required. They are ideal for video surveillance of high security environments like police custody suites, correctional facilities, psychiatric wards, as well as hospital recovery rooms, waiting rooms, and interview rooms.
-
Thoughtfully simple and cost-effective installation
In many corner-mounting scenarios, installers are often challenged with wall or ceiling surfaces that are not mounting-friendly, such as mirrors, acrylic glass, and windows. AXIS P9106-V has been specifically designed to allow corner-mounting using only 2 of the 3 surfaces (wall + wall or wall + ceiling). The cameras are also easy to install alone, thanks to innovative screw gaskets that hold the screws in place during mounting. Without the need for heavy investment in re-cabling, installation is fast and flexible, keeping costs low and avoiding downtime.
-
Easy to operate and maintain
AXIS P9106-V can be installed in easy-to-reach areas, and you can be confident that it's safe and secure thanks to its vandal-resistant IK10-rated casing. For added security and peace of mind, the camera's IP66-rated casing offers protection from dust and water. The entire camera and network connections are fully accessible from the front, which makes service and maintenance simple, saving time and money. Additionally, if the camera is defaced, the abrasion- and chemical-resistant front window is easy to clean with detergents or simple graffiti removers. If damage does occur, the front window can be quickly replaced.
|
| General |
| Device Type |
Network surveillance camera |
| Camera Mount Type |
Wall mount, ceiling mount, corner mount |
| Connectivity Technology |
Wired |
| Width |
14.6 cm |
| Depth |
12.2 cm |
| Height |
9.2 cm |
| Weight |
655 g |
| Camera |
| Type |
Colour - fixed |
| Digital Video Format |
MJPEG, H.264, MPEG-4 AVC |
| Max Digital Video Resolution |
2016 x 1512 |
| Motion Detection |
Yes |
| Video Modes |
1080p, 240p, 360p |
| Exposure Range |
1/5 sec - 1/32500 sec |
| Minimum Illumination |
0.35 lux - colour - F2.4 - 50 IRE |
| Digital Video Capture Resolution |
320 x 240, 1920 x 1080, 640 x 360, 2016 x 1512 |
| Frame Rate (max) |
30 frames per second |
| RAM |
512 MB |
| Flash Memory |
256 MB |
| Features |
Motion sensor, Backlight Compensation (BLC), sharpness control, white balance, colour control, brightness control, contrast control, e-mail alerts, image mirror, Wide Dynamic Range (WDR), AXIS Video Hosting System (AVHS), lens preset positioning, Privacy Mask Function, Video Motion Detector (VMD), tamper-detection, digital PTZ function, ONVIF (Profile S) support, ONVIF (Profile G) support, Pixel Counter Support |
| Image Sensor |
| Type |
3 MP CMOS 1/3" |
| Lens Construction |
| Type |
M12 mount - fixed focal |
| Focal Length |
2.4 mm |
| Lens Iris |
F/1.8 fixed iris |
| Horizontal Field of View (degree) |
130 |
| Vertical Field of View (degree) |
95 |
| Interfaces |
| Network Interface |
Ethernet 10Base-T/100Base-TX |
| Network Protocols |
DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP 1, SNMP 2c, SNMP 3, SOCKS, RTSP, RTP, HTTPS, UPnP, TLS, IPv4, IPv6, Bonjour, RTCP, IGMP, SSL, QOS |
| Expansion / Connectivity |
| Ports |
LAN/power - RJ-45 |
| Supported Memory Cards |
microSD Card, microSDHC Card, microSDXC Card |
| Miscellaneous |
| Included Accessories |
Cable gaskets, drill hole template, connector guard, screw gaskets |
| Compliant Standards |
C-Tick, VCCI Class B ITE, EN 61000-3-2, EN 61000-3-3, EN55024, CISPR 22, EN55022 Class B, ICES-003 Class B, EN 61000-6-1, FCC Part 15 B, EN 61000-6-2, EN 60950-1, IK10, IP66, IEEE 802.3af, IEEE 802.3at |
| Colour |
Brushed steel |
| Power |
| Power Requirements |
PoE |
| Power Device |
3.2 Watt |
| Software / System Requirements |
| Software Included |
Windows decoder 1-user licence |
| Manufacturer Warranty |
| Service & Support |
Limited warranty - 3 years |
| Environmental Parameters |
| Min Operating Temperature |
-15 °C |
| Max Operating Temperature |
50 °C |
| Relative Humidity (operating) |
15 - 85% (non-condensing) |
