| Marketing Description |

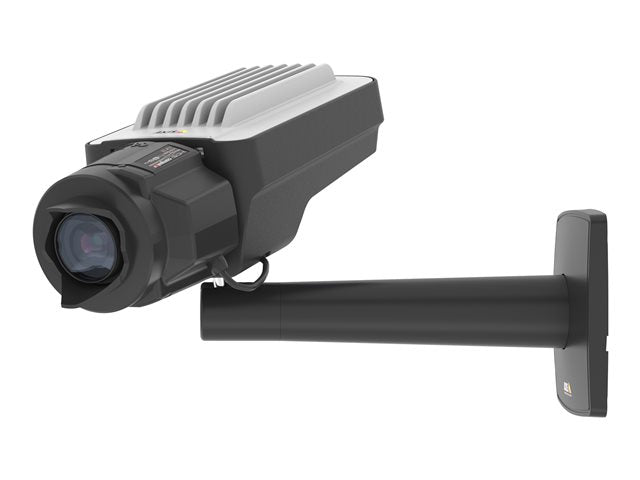

| AXIS Q1645 Network Camera is engineered for light sensitivity that's absolutely second to none. An advanced camera that's sharp in more ways than one, it delivers high-resolution video at high speed for crystal-clear images. And built-in analytics help you make smart decisions about for instance operations and resource allocations. |
| Product Features |
-
Capture more light - always
High resolution. Full frame rate. Unparalleled light sensitivity. That's the difference between an image that's sharp and one that's razor sharp in any light. Simply put, AXIS Q1645 is a camera that's second to none.
-
That's one smart camera
AXIS Q1645 is chockful of intelligent features that facilitate smart decision-making, enhanced security, first-class image usability, and fast, easy installation. It comes pre-installed with AXIS Motion Guard, AXIS Fence Guard and AXIS Loitering Guard analytics for proactive surveillance. And an orientation aid enables dynamic text overlays with street names and a compass symbol for quick orientation if you're using multiple monitors. In addition, intelligent i-CS lens technology facilitates fast and easy installation and adjustment. Plus zoom can be set remotely - and then the camera automatically sets the focus. Both of which help minimize time and money spent on installation.
-
One camera, three scenes
With AXIS Q1645, you can choose between three scene profiles. For each profile, the camera automatically optimizes exposure time, white balance, aperture, sharpness, contrast and noise for every camera in your surveillance solution to suit specific use scenarios. The result is always great image quality and cost-effective installation.
|
| General |
| Device Type |
Network surveillance camera |
| Audio Support |
Yes: two-way audio capability, built-in microphone |
| Connectivity Technology |
Wired |
| Width |
6.6 cm |
| Depth |
21 cm |
| Height |
8.2 cm |
| Weight |
950 g |
| Camera |
| Type |
Colour - Day&Night - fixed |
| Digital Video Format |
MPEG-4, MJPEG, H.264, AVC |
| Max Digital Video Resolution |
1920 x 1080 |
| Video Modes |
1080p |
| Exposure Range |
2 sec - 1/100000 sec |
| Frame Rate (max) |
120 frames per second |
| RAM |
1 GB |
| Flash Memory |
512 MB |
| Features |
Sharpness control, white balance, colour control, saturation control, brightness control, contrast control, AXIS Video Hosting System (AVHS), infrared cut filter, Privacy Mask Function, Electronic Image Stabilizer (EIS), Video Motion Detection Technology, Lightfinder technology, active tampering alarm, digital PTZ function, Audio Detection, Defog, Zipstream technology, ONVIF (Profile S) support, ONVIF (Profile G) support, image overlay, Forensic WDR, i-CS lens |
| Image Sensor |
| Type |
2 MP CMOS 1/2" |
| Lens Construction |
| Type |
CS-mount - vari-focal |
| Optical Zoom |
2.56 x |
| Focal Length |
3.9 mm - 10 mm |
| Horizontal Field of View (degree) |
42 - 109 |
| Vertical Field of View (degree) |
23 - 58 |
| Interfaces |
| Network Interface |
Ethernet 10Base-T/100Base-TX |
| Network Protocols |
DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP 1, SNMP 2c, SNMP 3, SOCKS, RTSP, RTP, HTTPS, UPnP, TLS, IPv4, IPv6, Bonjour, RTCP, SMB, IGMP, SSH, SSL, QOS, CIFS, SRTP, SFTP, LLDP |
| Control Interface |
RS-485, RS-422 |
| Expansion / Connectivity |
| Ports |
LAN/power - RJ-45
Audio line-in/microphone - 3.5 mm mono jack
Audio line out - 3.5 mm stereo jack
Serial RS-485/RS-422 - terminal block |
| Supported Memory Cards |
microSD Card, microSDHC Card, microSDXC Card |
| Miscellaneous |
| Included Accessories |
Stand, Resistorx T20 tool, connector kit |
| Compliant Standards |
EN 61000-3-2, EN 61000-3-3, EN55024, EN 61000-6-1, ICES-003 Class A, EN 61000-6-2, IEC 60068-2-27, IEC 60068-2-6, FCC Part 15 B Class A, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-14, IEC 60068-2-78, VCCI Class A, RCM, KN35, AS/NZS CISPR 32 Class A, EN 55032 Class A, KCC KN32 Class A, IEC/EN/UL 62368-1 |
| Colour |
Black, silver |
| Power |
| Power Requirements |
DC 8 - 28 V / PoE Class 3 |
| Manufacturer Warranty |
| Service & Support |
Limited warranty - 3 years |
| Environmental Parameters |
| Min Operating Temperature |
-20 °C |
| Max Operating Temperature |
60 °C |
| Relative Humidity (operating) |
10 - 85% (non-condensing) |
