| Marketing Description |

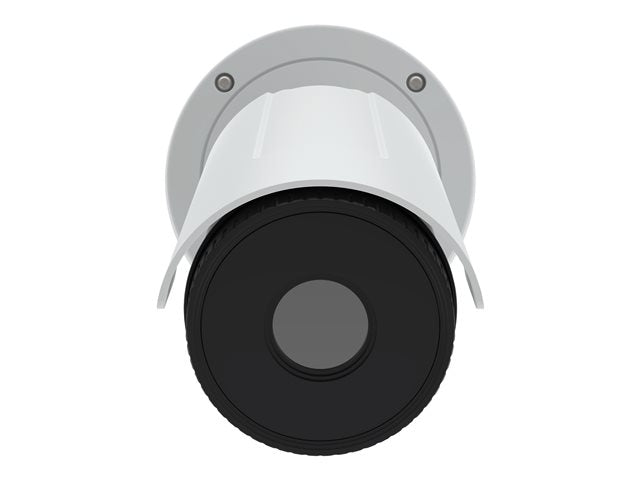

| AXIS Q1942-E is an affordable outdoor, bullet style, thermal camera with a built-in window heater for harsh weather conditions. A resolution of 640 x 480 and a range of lens alternatives make it possible to optimize detection performance to meet different requirements. It supports Electronic Image Stabilization, that keeps the video smooth during vibrations, and Zipstream, that lowers bandwidth and storage requirements. Thanks to its powerful processor, AXIS Q1942-E has high capacity for running video analytics. |
| Product Features |
-
Robust environmental adaptability
Designed to operate in extreme conditions, this thermal network camera withstands temperatures ranging from -40°C to 60°C, ensuring reliable surveillance in any weather.
-
Comprehensive connectivity
Featuring a versatile RJ-45 connector for LAN, along with audio line in and out, this camera integrates seamlessly into existing networks, providing both visual and audio monitoring capabilities.
-
Advanced imaging technology
With a fixed focal lens of 10 mm and an aperture of f/1.25, the camera captures clear thermal images, while the Electronic Image Stabilizer and Zipstream technology ensure efficient and stable video transmission.
-
Durable and compliant
Meeting a wide array of compliance standards including EN 60950-1, IEC 60529 IP67, and NEMA Type 4X, this camera is built for durability and adherence to global safety and operational protocols.
-
Efficient power and network protocols support
Supporting low voltage power and PoE for flexible installation options, and compatible with a broad range of network protocols, this camera is designed for easy integration into any security system.
|
| General |
| Device Type |
Thermal network camera |
| Audio Support |
Yes: two-way audio capability |
| Camera Mount Type |
Wall mount, ceiling mount |
| Connectivity Technology |
Wired |
| Width |
34.4 cm |
| Depth |
14.6 cm |
| Height |
14.6 cm |
| Weight |
2 kg |
| Camera |
| Type |
Colour - fixed - outdoor - weatherproof |
| Digital Video Format |
MJPEG, H.264, MPEG-4 AVC |
| Max Digital Video Resolution |
640 x 480 |
| Motion Detection |
Yes |
| Video Capture |
640 x 480 @ 30 fps |
| RAM |
512 MB |
| Flash Memory |
256 MB |
| Features |
Sharpness control, digital image rotation, brightness control, contrast control, image mirror, heater, ONVIF support, Privacy Mask Function, Electronic Image Stabilizer (EIS), Video Motion Detection Technology, password protection, Variable Bitrate (VBR), Zipstream technology |
| Lens Construction |
| Type |
Fixed focal |
| Focal Length |
10 mm |
| Lens Iris |
F/1.25 |
| Horizontal Field of View (degree) |
63 |
| Interfaces |
| Network Interface |
Ethernet 10Base-T/100Base-TX |
| Network Protocols |
DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP 1, SNMP 2c, SNMP 3, SOCKS, RTSP, RTP, HTTPS, UPnP, TLS, IPv4, IPv6, Bonjour, RTCP, IGMP, SSL, QOS |
| Expansion / Connectivity |
| Ports |
LAN - RJ-45
Audio line in
Audio line out |
| Supported Memory Cards |
microSD Card, microSDHC Card, microSDXC Card |
| Miscellaneous |
| Included Accessories |
Wall mount bracket, ceiling mount bracket |
| Compliant Standards |
CISPR 22 Class A, EN55024, EN55022 Class A, IEC 60529 IP66, IEC 60529 IP67, EN 61000-6-1, ICES-003 Class A, NEMA Type 4X, EN 61000-6-2, UL 60950-1, IEC 60950-1, EN 60950-1, KCC, IEC 60068-2-27, IEC 60068-2-6, FCC Part 15 B Class A, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-52, EN 50121-4, IEC 62236-4, VCCI Class A, EN 50581, RCM, IEC 60950-22, EN 60950-22, UL 60950-22, IEC 60721-3-4, KN32, KN35 |
| Colour |
White |
| Power |
| Power Requirements |
DC 8 - 28 V / AC 20 - 24 V / PoE |
| Power Device |
4.8 Watt |
| Software / System Requirements |
| Software Included |
Drivers & Utilities |
| Manufacturer Warranty |
| Service & Support |
Limited warranty - 3 years |
| Environmental Parameters |
| Min Operating Temperature |
-40 °C |
| Max Operating Temperature |
60 °C |
| Relative Humidity (operating) |
10 - 100% |
