| Marketing Description |

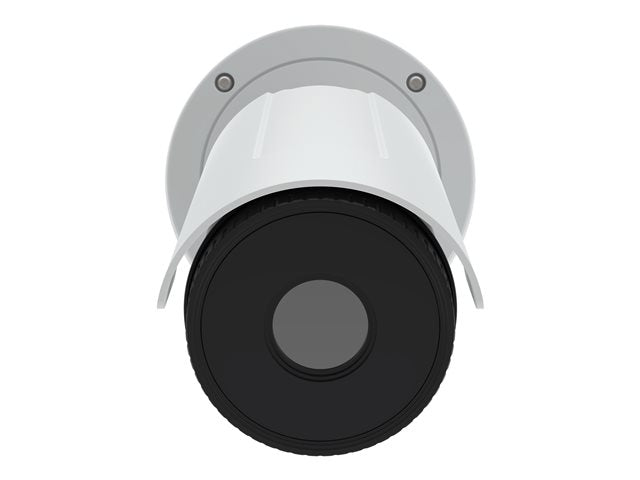

| AXIS Q1942-E is an affordable outdoor, bullet style, thermal camera with a built-in window heater for harsh weather conditions. A resolution of 640x480 makes it possible to optimize detection performance to meet most requirements. It supports Electronic Image Stabilization that keeps the video smooth during vibrations, and Axis' Zipstream that lowers bandwidth and storage requirements. Thanks to its powerful processor, AXIS Q1942-E has high capacity for running video analytics via AXIS Camera Application Platform (ACAP) and can use a range of third party applications. |
| Product Features |
-
Robust operating temperature range
This camera is designed to function in a wide temperature range from -40°C to 60°C, making it suitable for diverse environments.
-
High-quality imaging
The fixed 35 mm lens and f/1.2 aperture deliver sharp images with a horizontal field of view of 17 degrees, ideal for effective surveillance.
-
Advanced connectivity options
Supports multiple network protocols including IPv4 and IPv6, facilitating integration with various surveillance systems.
-
Enhanced monitoring capabilities
Features such as two-way audio, motion detection, and Video Motion Detection Technology allow for comprehensive surveillance solutions.
-
Durable weatherproof design
Compliant with IEC standards for outdoor use, this camera provides reliable performance regardless of weather conditions.
|
| General |
| Device Type |
Thermal network camera |
| Audio Support |
Yes: two-way audio capability |
| Camera Mount Type |
Wall mount, ceiling mount |
| Connectivity Technology |
Wired |
| Width |
34.4 cm |
| Depth |
14.6 cm |
| Height |
14.6 cm |
| Weight |
2 kg |
| Camera |
| Type |
Colour - fixed - outdoor - weatherproof |
| Digital Video Format |
MJPEG, H.264, MPEG-4 AVC |
| Max Digital Video Resolution |
640 x 480 |
| Motion Detection |
Yes |
| Video Capture |
640 x 480 @ 30 fps |
| RAM |
512 MB |
| Flash Memory |
256 MB |
| Features |
Sharpness control, digital image rotation, brightness control, contrast control, image mirror, heater, ONVIF support, Privacy Mask Function, Electronic Image Stabilizer (EIS), Video Motion Detection Technology, password protection, Variable Bitrate (VBR), Zipstream technology |
| Lens Construction |
| Type |
Fixed focal |
| Focal Length |
35 mm |
| Lens Iris |
F/1.2 |
| Horizontal Field of View (degree) |
17 |
| Interfaces |
| Network Interface |
Ethernet 10Base-T/100Base-TX |
| Network Protocols |
DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP 1, SNMP 2c, SNMP 3, SOCKS, RTSP, RTP, HTTPS, UPnP, TLS, IPv4, IPv6, Bonjour, RTCP, IGMP, SSL, QOS |
| Expansion / Connectivity |
| Ports |
LAN - RJ-45
Audio line in
Audio line out |
| Supported Memory Cards |
microSD Card, microSDHC Card, microSDXC Card |
| Miscellaneous |
| Included Accessories |
Wall mount bracket, ceiling mount bracket |
| Compliant Standards |
CISPR 22 Class A, EN55024, EN55022 Class A, IEC 60529 IP66, IEC 60529 IP67, EN 61000-6-1, ICES-003 Class A, NEMA Type 4X, EN 61000-6-2, UL 60950-1, IEC 60950-1, EN 60950-1, KCC, IEC 60068-2-27, IEC 60068-2-6, FCC Part 15 B Class A, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-52, EN 50121-4, IEC 62236-4, VCCI Class A, EN 50581, RCM, IEC 60950-22, EN 60950-22, UL 60950-22, IEC 60721-3-4, KN32, KN35 |
| Colour |
White |
| Power |
| Power Requirements |
DC 8 - 28 V / AC 20 - 24 V / PoE |
| Power Device |
4.8 Watt |
| Software / System Requirements |
| Software Included |
Drivers & Utilities |
| Manufacturer Warranty |
| Service & Support |
Limited warranty - 3 years |
| Environmental Parameters |
| Min Operating Temperature |
-40 °C |
| Max Operating Temperature |
60 °C |
| Relative Humidity (operating) |
10 - 100% |
