| Marketing Description |

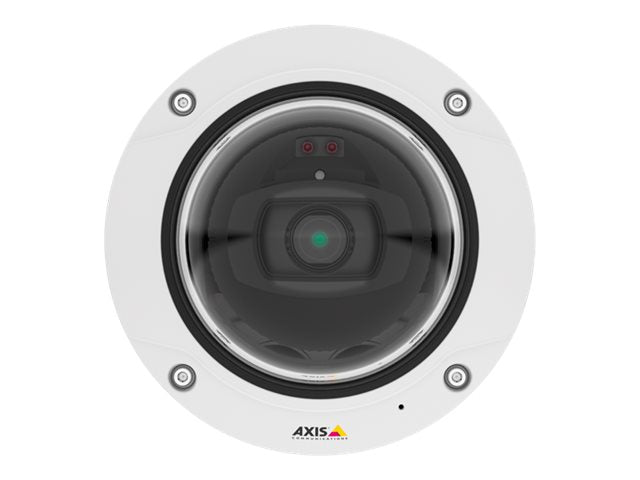

| Are you looking for a discreet and robust network camera that delivers superior performance even in complex light and under challenging conditions? Whether it's midnight or midday and no matter what the application, AXIS Q3517-LV network camera captures unparalleled video. Because it's loaded with advanced functionality that supports all your surveillance needs. |
| Product Features |
-
Superior images packed with details
Simply put, AXIS Q3517-LV delivers high video quality. It offers 5-megapixel resolution at full frame rate with Forensic WDR. That means it delivers excellent detail - of moving objects and people - as well as of scenes with both extremely bright and extremely dark areas. Thanks to Lightfinder, you also get sharp, color images in low light. Optimized IR ensures excellent low-noise video even in complete darkness. And Axis Zipstream technology preserves important details in full image quality, while reducing storage and bandwidth.
-
Ready for the rough stuff - every time
AXIS Q3517-LV is designed to be resistant to shock and vibrations, and its casing protects it against dust and water. The casing is also vandal resistant. Electronic image stabilization keeps the picture steady when the camera is exposed to vibrations. And what's more, even if there is a power outage, redundant DC power and Power over Ethernet helps ensure a reliable power supply to safeguard all your mission critical surveillance.
|
| General |
| Device Type |
Network surveillance camera |
| Audio Support |
Yes: two-way audio capability |
| Form Factor |
Dome |
| Connectivity Technology |
Wired |
| Width |
16.18 cm |
| Depth |
16.18 cm |
| Height |
12.36 cm |
| Weight |
1.4 kg |
| Camera |
| Type |
Colour - Day&Night - fixed - dust / vandal / waterproof |
| Digital Video Format |
MJPEG, H.264, MPEG-4 AVC |
| Max Digital Video Resolution |
3072 x 1728 |
| Exposure Range |
2 sec - 1/71500 sec |
| Minimum Illumination |
0.12 lux - colour - F1.5 - 50 IRE
0.02 lux - B&W - F1.5 - 50 IRE |
| Infrared Distance |
40 m |
| Digital Video Capture Resolution |
160 x 120, 3072 x 1728 |
| Frame Rate (max) |
30 frames per second |
| RAM |
1 GB |
| Flash Memory |
512 MB |
| Features |
Motion sensor, sharpness control, digital image rotation, white balance, colour control, brightness control, contrast control, image mirror, Wide Dynamic Range (WDR), AXIS Video Hosting System (AVHS), infrared cut filter, Privacy Mask Function, Electronic Image Stabilizer (EIS), Lightfinder technology, digital PTZ function, password protection, distortion correction function, shock detection, Variable Bitrate (VBR), Audio Detection, Defog, OptimizedIR, auto gain control, Zipstream technology, Access Control, ONVIF (Profile S) support, ONVIF (Profile G) support, image overlay, exposure control, Forensic WDR, IP address filtering, exposure zone |
| Image Sensor |
| Type |
5 MP CMOS 1/1.8" |
| Lens Construction |
| Type |
Vari-focal |
| Optical Zoom |
2 x |
| Focal Length |
4.3 mm - 8.6 mm |
| Lens Iris |
F/1.5 fixed iris (P-Iris) |
| Horizontal Field of View (degree) |
50 - 96 |
| Vertical Field of View (degree) |
29 - 53 |
| Panning |
| Range (degree) |
360 |
| Tilting |
| Range (degree) |
-80 to +80 |
| Interfaces |
| Network Interface |
Ethernet 10Base-T/100Base-TX |
| Network Protocols |
DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP 1, SNMP 2c, SNMP 3, SOCKS, RTSP, RTP, HTTPS, UPnP, TLS, IPv4, IPv6, Bonjour, RTCP, SMB, IGMP, SSH, SSL, QOS, CIFS, SFTP, LLDP |
| Expansion / Connectivity |
| Ports |
LAN/power - RJ-45
Audio line-in/microphone - 3.5 mm jack
Audio line out - 3.5 mm jack |
| Supported Memory Cards |
microSD Card, microSDHC Card, microSDXC Card |
| Miscellaneous |
| Included Accessories |
Mounting bracket, template, cable gaskets, I/O and DC connectors |
| Compliant Standards |
EN55024, EMC, FCC Part 15, ICES-003 Class A, IEC 60068-2-27, IEC 60068-2-6, IK10, IP52, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-14, IEC 60068-2-78, VCCI Class A, AS/NZS CISPR 22, RCM, IEC EN60529, KN35, IEC/EN 61000-6-1, IEC/EN 61000-6-2, EN 55032 Class A, KCC KN32 Class A, IEC/EN/UL 60950-1, IEC/EN 62471, IEEE 802.3af, IEEE 802.3at, IEC/EN 62262 |
| Colour |
White |
| Power |
| Power Requirements |
PoE Class 3 |
| Software / System Requirements |
| Software Included |
Windows decoder 1-user licence |
| Manufacturer Warranty |
| Service & Support |
Limited warranty - 3 years |
| Environmental Parameters |
| Min Operating Temperature |
-10 °C |
| Max Operating Temperature |
50 °C |
| Relative Humidity (operating) |
10 - 85% (non-condensing) |
