| Marketing Description |

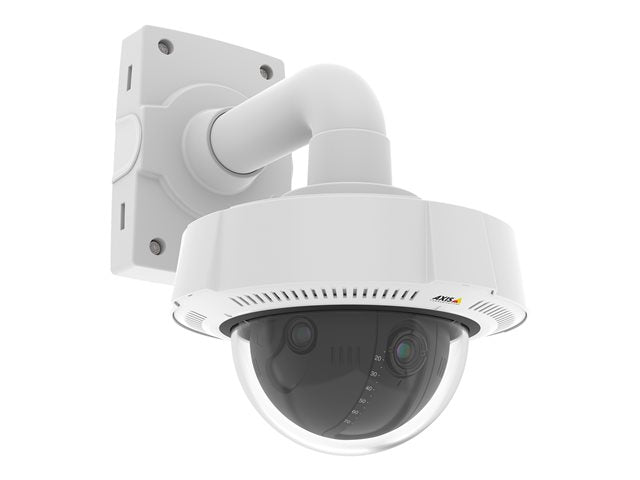

| AXIS Q3709-PVE Network Camera is a fixed dome with multiple sensors that provides a broad overview with great detail. The camera's three sensors together give a 180° panoramic view with smooth capture of movements at up to 30 fps in 3 x 4K or 20 fps in 33 MP resolution. The factory-focused lenses eliminate the need for manual focusing. The camera is effectively installed indoors or outdoors with a wide operating temperature range powered by standard PoE+. AXIS Q3709-PVE is delivered with a repaintable weather shield that protects against sun, rain or snow. The camera is equipped with video motion detection as well as active tampering alarm. |
| Product Features |
- 180° panoramic overview provided by three sensors
- Efficient one-camera installation
- Factory-focused lenses
- 3 x 4K at 30 fps or up to 33 MP resolution at 20 fps
- Outdoor-ready with wide operating temperature range
|
| General |
| Device Type |
Network surveillance camera |
| Form Factor |
Dome |
| Connectivity Technology |
Wired |
| Width |
20.5 cm |
| Depth |
20.5 cm |
| Height |
17.2 cm |
| Weight |
2.2 kg |
| Localisation |
Argentina, Australia, Japan, South Korea, Brazil, United Kingdom, United States, Europe |
| Camera |
| Type |
Colour - Day&Night - fixed - outdoor - tamper-proof / weatherproof |
| Digital Video Format |
MPEG-4, MJPEG, H.264 |
| Max Digital Video Resolution |
3840 x 2880 |
| Motion Detection |
Yes |
| Exposure Range |
2/5 sec - 1/23250 sec |
| Minimum Illumination |
2 lux - colour - F2.8
0.4 lux - B&W - F2.8 |
| Digital Video Capture Resolution |
320 x 240, 3840 x 2880 |
| Frame Rate (max) |
30 frames per second |
| RAM |
3 GB |
| Flash Memory |
768 MB |
| Features |
Backlight Compensation (BLC), sharpness control, white balance, auto exposure control, colour control, brightness control, Power over Ethernet, contrast control, Wide Dynamic Range (WDR), ONVIF support, Open Network Video Interface Forum (ONVIF), infrared cut filter, Privacy Mask Function, ePTZ, Video Motion Detection Technology, active tampering alarm, Text Caption Overlay, password protection, Variable Bitrate (VBR), Constant Bitrate (CBR) |
| Image Sensor |
| Type |
3 x 4 MP CMOS 3 x 1/2.3" |
| Lens Construction |
| Type |
Fixed focal |
| Focal Length |
5 mm |
| Lens Iris |
F/2.8 |
| Panning |
| Range (degree) |
-180 to +180 |
| Tilting |
| Range (degree) |
18 to 75 |
| Interfaces |
| Network Interface |
Ethernet 10Base-T/100Base-TX/1000Base-T |
| Network Protocols |
DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP 1, SNMP 2c, SNMP 3, SOCKS, RTSP, RTP, HTTPS, UPnP, TLS, IPv4, IPv6, Bonjour, RTCP, SMB, IGMP, SSH, SSL, QOS, CIFS, SFTP |
| Expansion / Connectivity |
| Ports |
LAN/power - RJ-45 |
| Miscellaneous |
| Compliant Standards |
C-Tick, EN 61000-3-2, EN 61000-3-3, EN55024, IEC 60529 IP66, EN 61000-6-1, ICES-003 Class A, NEMA Type 4X, EN 61000-6-2, UL 60950-1, IEC 60950-1, EN 60950-1, IEC 60068-2-30, IK10, FCC Part 15 B Class A, IP66, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-78, IEC 62262 IK10, EN 50121-4, IEC 62236-4, VCCI Class A, EN 50581, KN24, KCC KN22, AS/NZS CISPR 22, IEC 60950-22, EN 60529, EN 60950-22, UL 60950-22, EN 55022 Class A |
| Colour |
White |
| Power |
| Power Requirements |
PoE Plus |
| Power Device |
16.7 Watt |
| Manufacturer Warranty |
| Service & Support |
Limited warranty - 3 years |
| Environmental Parameters |
| Min Operating Temperature |
-40 °C |
| Max Operating Temperature |
55 °C |
| Relative Humidity (operating) |
10 - 100% (non-condensing) |
